AT170-AEKDK (1989)

Toyota Corona

Production Nov 1989 - Feb 1992
Engine 5AFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )5AFE

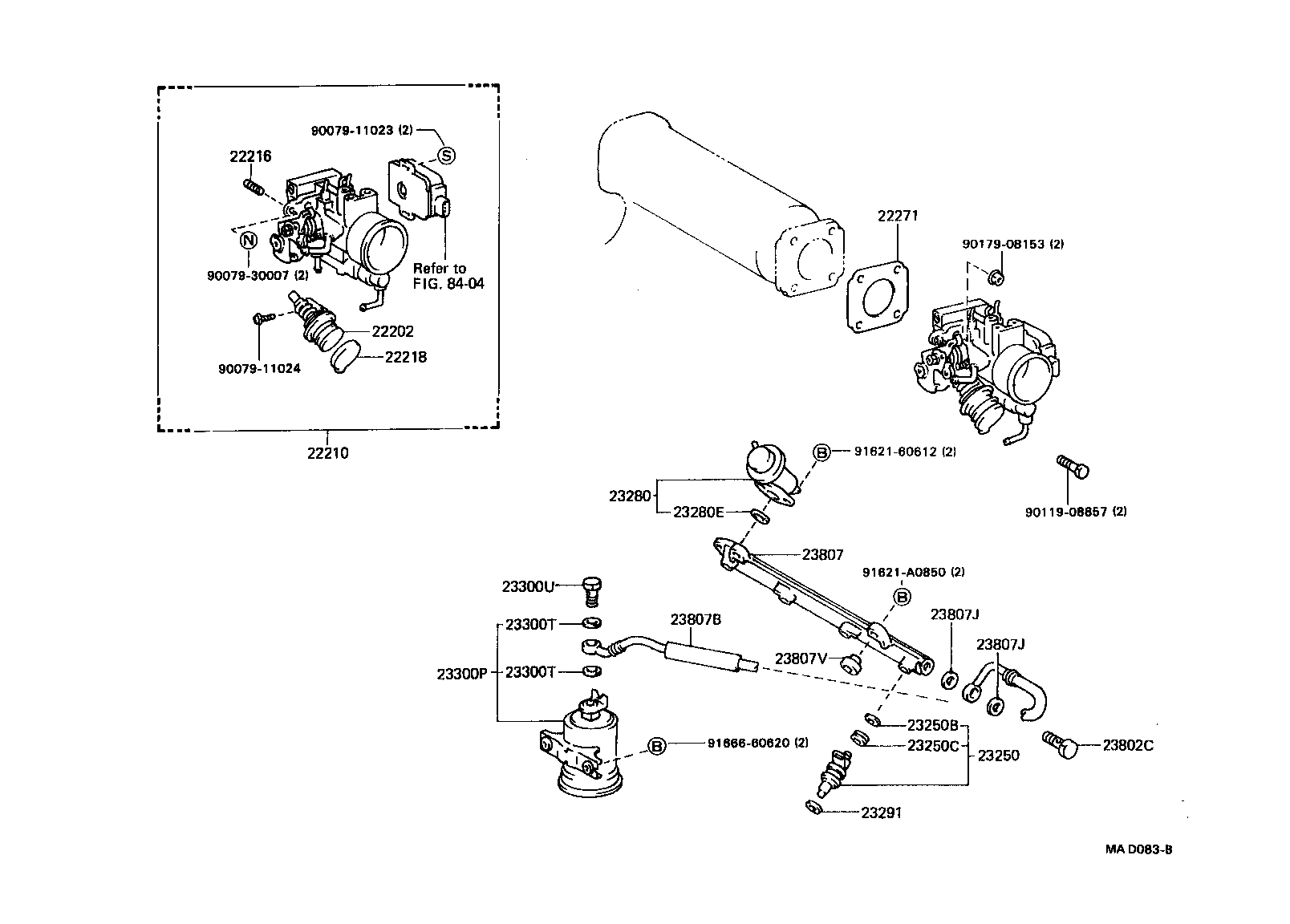

Click highlighted areas on diagram

diagram 22202 22210 22216 22218 22271 23250 23250B 23250C 23280 23280E 23291 23300P 23300T 23300T 23300U 23802C 23807 23807B 23807J 23807J 23807V 8404 9007911023 9007911024 9007930007 9011908857 9017908153 9162160612 91621A0850 9166660620
Part # Description Qty Price
22202 - DASH POT SUB-ASSY
22202-15030

5AFE..AT170..MTM

 1
22210 - BODY ASSY, THROTTLE
22210-15050

5AFE..AT170..MTM

 1
22216 - SCREW, DASH POT ADJUSTING
22216-74010

5AFE..AT170

 2
22218 - COVER(FOR THROTTLE BODY)
22218-16330

5AFE..AT170

 1
22271 - GASKET, THROTTLE BODY
22271-15010

4AFE,5AFE..AT17#

 1
22271-15011

4AFE,5AFE..AT17#

 1
23250 - INJECTOR ASSY, FUEL
23209-15010

5AFE..AT170

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

5AFE..AT170

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

5AFE..AT170

 4
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

5AFE..AT170

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

5AFE..AT170

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19205

5AFE..AT170

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AFE,5AFE..AT17#

 2
90430-12026

4AFE,5AFE..AT17#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AFE,5AFE..AT17#

 2
90430-12026

4AFE,5AFE..AT17#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4AFE,5AFE..AT17#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-15030

5AFE..AT170

 1
23807B - HOSE, FUEL DELIVERY PIPE
23271-15250

5AFE..AT170

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

4AFE,5AFE..AT17#

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

4AFE,5AFE..AT17#

 2
Common parts
90079-11023
90079-11024
90079-30007
90119-08857
90179-08153
91621-60612
91621-A0850
91666-60620
Linked diagrams
8404
