AT150-TLPNS (1984)

Toyota Corona

Production May 1984 - Nov 1987
Engine 3ALU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )3ALU

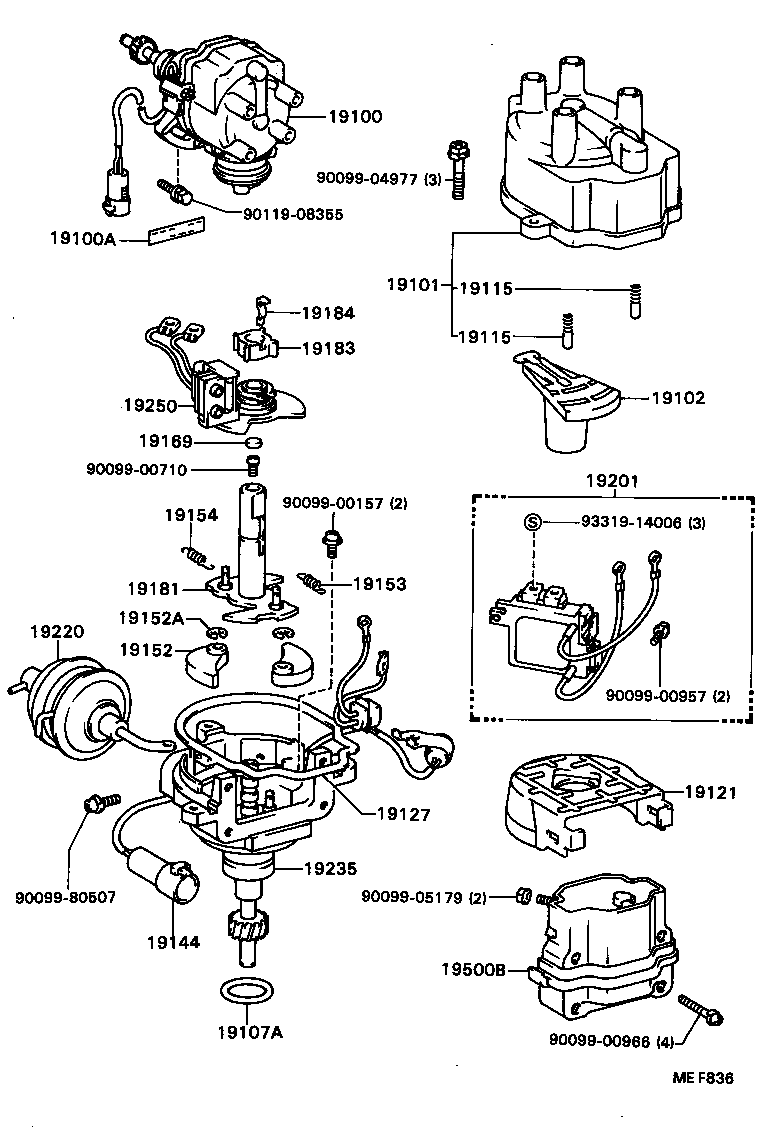

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19121 19127 19144 19152 19152A 19153 19154 19169 19181 19183 19184 19201 19220 19235 19250 19500B 9009900157 9009900710 9009900957 9009900966 9009904977 9009905179 9009980507 9011908355 9331914006
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-15090

3ALU..AT150..ATM

 1
19100A - TAPE, SEALING
90919-24004

3ALU..AT150

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11010

3ALU..AT150

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-63010

3ALU..AT150

 1
19102-11010

3ALU..AT150

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96711-35030

3ALU..AT150

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

3ALU..AT150

 2
19115-71010

3ALU..AT150

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

3ALU..AT150

 2
19115-71010

3ALU..AT150

 2
19121 - COVER, DUST PROOF
19121-11010

3ALU..AT150

NO.1

 1
19121-11080

3ALU..AT150

NO.1

 1
19121-63040

3ALU..AT150

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63020

3ALU..AT150

NO.2

 1
19127-11010

3ALU..AT150

NO.1

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-15080

3ALU..AT150

 1
19153 - SPRING, GOVERNOR, A
19153-15280

3ALU..AT150

 1
19154 - SPRING, GOVERNOR, B
19154-15280

3ALU..AT150

 1
19169 - STOPPER, CAM GREASE
19169-32010

3ALU..AT150

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-15290

3ALU..AT150..ATM

 1
19184 - SPRING, ROTOR SET
19184-63010

3ALU..AT150

 1
19201 - IGNITER
89620-10120

3ALU..AT150

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-15290

3ALU..AT150..ATM

 1
19235 - HOUSING, DISTRIBUTOR
19235-14040

3ALU..AT150

 1
19500B - COIL ASSY, IGNITION
90919-02164

3ALU..AT150

 1
Common parts
90099-00157
90099-00710
90099-00957
90099-00966
90099-04977
90099-05179
90099-80507
90119-08355
93319-14006
