AT150-TEMES (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 5(8310- )

Click highlighted areas on diagram

diagram 83320 83320 83361 83361 84233 84233B 84234 84234B 84235 84236 84242 84340 84550 88280A 89373 89373 89425 9017910032 9043008252 9046400102 9048026043 9048026043 9165140610 9165140610 9165160616 9331514012 9331514014 9331515010 9338115010 9338115010 9412041000
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-29795

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29796

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29798

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320 - GAGE ASSY, FUEL SENDER
83320-29795

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29796

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29798

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83361 - GASKET, FUEL SENDER GAGE
83361-32010

AT150,CT150,ST150

 1
83361 - GASKET, FUEL SENDER GAGE
83361-32010

AT150,CT150,ST150

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120

AT150,CT150,ST150,16#

 2
84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR)
84234-24010

AT150,CT150,ST150,16#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-12120

AT150,CT150,ST150,16#

 2
84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR)
84234-24010

AT150,CT150,ST150,16#

 2
84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM
84231-12030

AT150,CT150,ST150..4D..(EXA,EXS)

 1
84231-20110

AT150,CT150,ST150,162..4D..(EXA,EXS,GT)

 1
84242 - SWITCH, GLOVE BOX LAMP
84242-20020

AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR

 1
84340 - SWITCH ASSY, STOP LAMP
84340-30030

AT150,CT150,ST150,16#

MATSUSHITA

 1
84340-32010

AT150,CT150,ST150,16#

TOKAIRIKA

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16010

AT150,CT150,ST150,16#

 1
84550-24010

AT150,CT150,ST150

 1
88280A - SWITCH ASSY, CLUTCH
88280-35010

AT150..MTM

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-12250

AT150,ST150..CBR,CI

 1
89425-12190

AT150,ST150..CBR,CI

 1
89425-19285

AT150,ST150..CBR,CI

 1
Common parts
90179-10032
90430-08252
90464-00102
90480-26043
91651-40610
91651-60616
93315-14012
93315-14014
93315-15010
93381-15010
94120-41000

ILLUST NO. 1 OF 5(8310- )AT150

Click highlighted areas on diagram

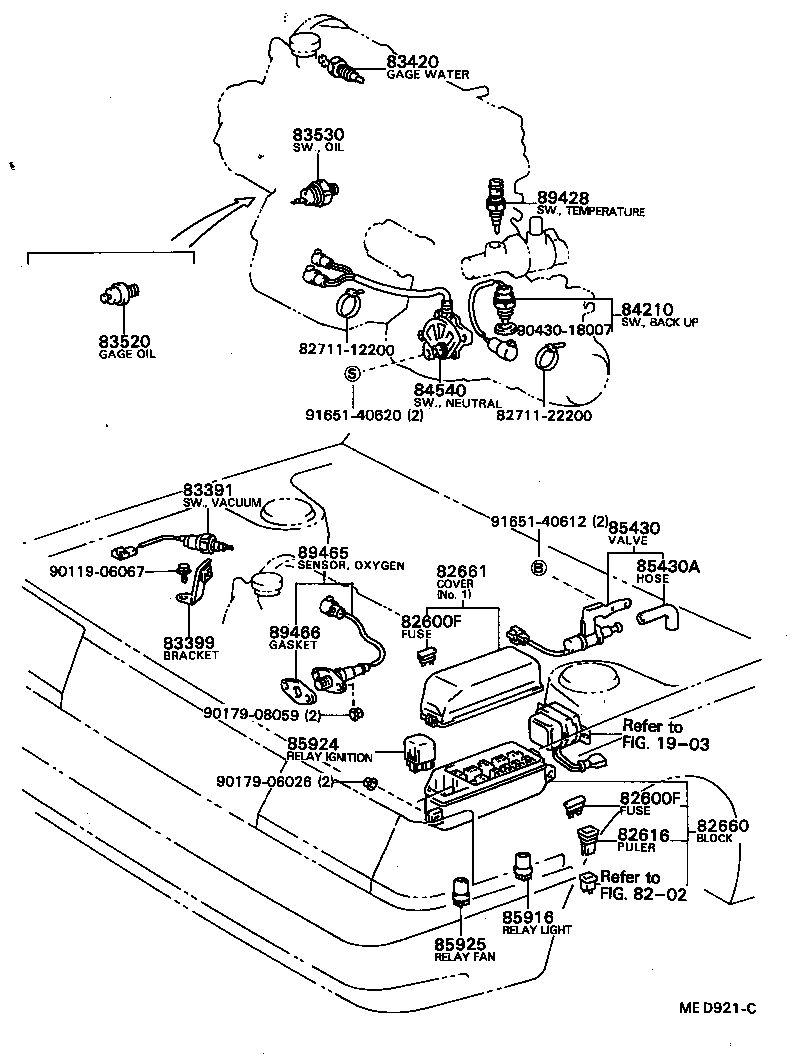

diagram 1903 8202 82600F 82600F 82616 82660 82661 8271112200 8271122200 83391 83399 83420 83520 83530 84210 84540 85430 85430A 85916 85924 85925 89428 89465 89466 9011906067 9017906026 9017908059 9043018007 9165140612 9165140620
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09002

AT150,CT150,ST150,16#

10A,10A

 1
90982-09005

AT150,CT150,ST150,16#

7.5A,7.5A

 5
90982-09004

AT150,CT150,ST150,16#

20A,黄,20A

 4
90982-09003

AT150,CT150,ST150,16#

15A,15A

 6
82600F - FUSE, FUSE BLOCK
90982-09002

AT150,CT150,ST150,16#

10A,10A

 1
90982-09005

AT150,CT150,ST150,16#

7.5A,7.5A

 5
90982-09004

AT150,CT150,ST150,16#

20A,黄,20A

 4
90982-09003

AT150,CT150,ST150,16#

15A,15A

 6
82616 - PULLER, FUSE
82616-12010

AT150,CT150,ST150,16#

 1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-32040

AT150,CT150,ST150

 1
82660-32030

AT150,CT150,ST150

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-32030

AT150,CT150,ST150,16#

COWL SIDE

 1
82661-32010

AT150,CT150,ST150

ENGINE ROOM,NO.1

 1
83391 - SWITCH, VACUUM
83391-16030

AT150

MARK=85M

 1
83391-22070

AT150

MARK=85M

 1
83399 - BRACKET, VACUUM SWITCH
83399-22011

AT150

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

AT150,CT150,ST150,16#

YAZAKI

 1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-14022

AT150,CT150..EXS

DENSO

 1
83520-14023

AT150,CT150..EXS

DENSO

 1
83520-55011

AT150,CT150..EXS

YAZAKI

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60010

AT150,CT150,ST150..MTM

 1
85430 - VALVE, OUTER VENT CONTROL
85430-12061

AT150

 1
85430A - HOSE
77759-12040

AT150

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

AT150,CT150,ST150

TAIL & HEAD

 2
90987-01003

AT150,CT150,ST150

HEAD

 1
90987-01003

AT150,CT150,ST150,16#

TAIL

 1
85924 - RELAY, IGNITION CONTROL
85913-30020

AT150,CT150,ST150

 1
90987-04002

AT150,CT150,ST150,16#

 1
85925 - RELAY, RADIATOR FAN
90987-03001

AT150,CT150,ST150,16#

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-15011

AT150

 1
89428-15011

AT150

 1
89465 - SENSOR, OXYGEN
89465-12070

AT150

 1
89465-19085

AT150

 1
89466 - GASKET, OXYGEN SENSOR
89466-32010

AT150,ST150,16#..CBR,EFI,TWC

 1
Common parts
82711-12200
82711-22200
90119-06067
90179-06026
90179-08059
90430-18007
91651-40612
91651-40620
Linked diagrams
1903
8202
