AT150-TEMES (1983)
Toyota Corona

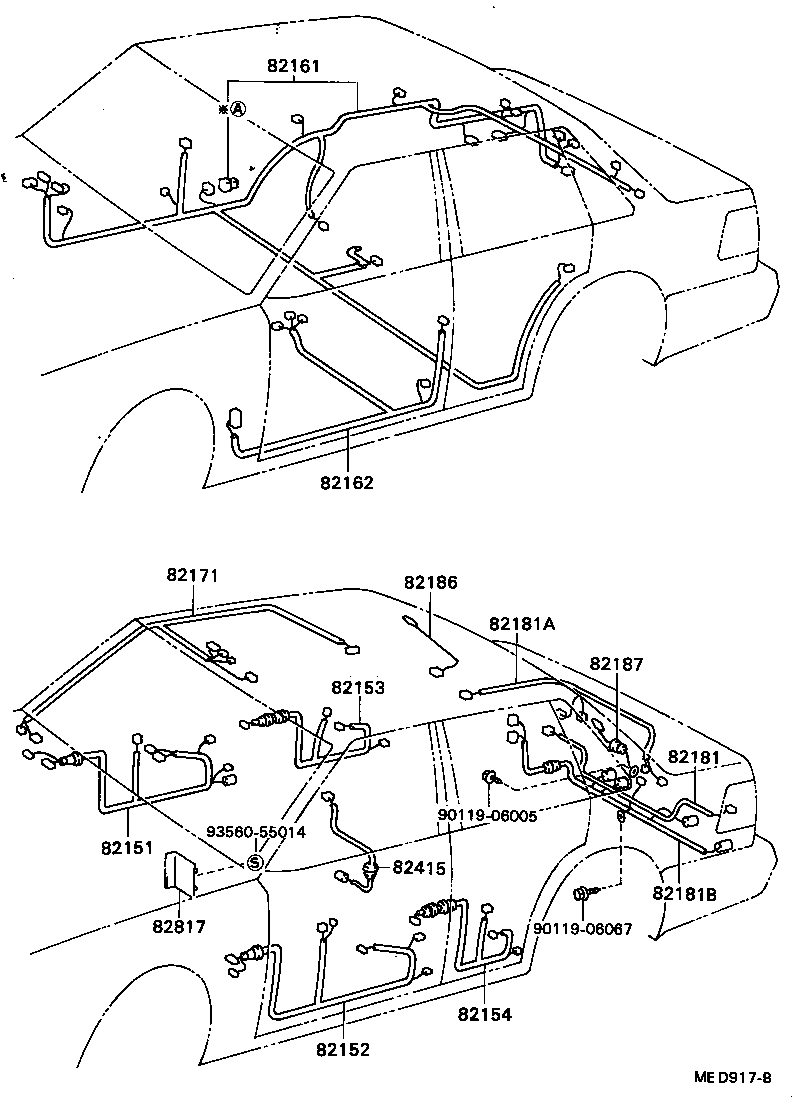

ILLUST NO. 2 OF 8(8310- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20081 |
AT150,CT150,ST150..EXS,GX W/*PW,W/O *EL |
1 | ||
| 82151-20080 |
AT150,CT150,ST150..EXS,GX W/*PW,W/O *EL |
1 | ||
| 82151-20071 |
AT150,CT150,ST150..EXA,EXS,SX W/*PW & *EL |
1 | ||
| 82151-20400 |
AT150,CT150,ST150..EXS W/*PW,W/O *EL |
1 | ||
| 82151-20070 |
AT150,CT150,ST150..EXA,EXS,SX W/*PW & *EL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-20071 |
AT150,CT150,ST150..EXA,EXS,SX W/*PW & *EL |
1 | ||
| 82152-20080 |
AT150,CT150,ST150..EXS,GX W/*PW,W/O *EL |
1 | ||
| 82152-20081 |
AT150,CT150,ST150..EXS,GX W/*PW,W/O *EL |
1 | ||
| 82152-20070 |
AT150,CT150,ST150..EXA,EXS,SX W/*PW & *EL |
1 | ||
| 82152-20370 |
AT150,CT150,ST150..EXS W/*PW,W/O *EL |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20050 |
AT150,CT150,ST150..EXS,GX W/*PW & W/O *EL |
1 | ||
| 82153-20040 |
AT150,CT150,ST150..EXA,EXS,SX W/*PW & *EL |
1 | ||
| 82153-20110 |
AT150,CT150,ST150..EXS W/*PW & W/O *EL |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20040 |
AT150,CT150,ST150..EXA,EXS,SX W/*PW & *EL |
1 | ||
| 82154-20050 |
AT150,CT150,ST150..EXS,GX W/*PW & W/O *EL |
1 | ||
| 82154-20110 |
AT150,CT150,ST150..EXS W/*PW & W/O *EL |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-20420 |
AT150..4D..EXS |
1 | ||
| 82161-20421 |
AT150..4D..EXS |
1 | ||
| 82161-20680 |
AT150..4D..EXS |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20050 |
AT150,CT150,ST150..EXA,EXS,GX,SX W/*PW |
1 | ||
| 82162-20050 |
AT150,CT150,ST150..EXA,EXS W/*PW |
1 | ||
| 82162-20160 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR W/*PW |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20090 |
AT150,ST16#;CT150,ST150..GX,SX |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20060 |
AT150,CT150,ST150,16#..4D |
1 | ||
| 82181A - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-20022 |
AT150,CT150,ST150..4D |
1 | ||
| 82182-20020 |
AT150,CT150,ST150..4D |
1 | ||
| 82182-20100 |
AT150,CT150,ST150,16#..4D |
1 | ||
| 82182-20021 |
AT150,CT150,ST150..4D |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20050 |
AT150..4D..(DX,EXS,GX);CT150,ST150..4D..(GX,SX) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-20040 |
AT150..4D..(DX,EXS,GX);CT150,ST150..4D..(GX,SX) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-20300 |
AT150,CT150,ST150,16# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 93560-55014 | ||||

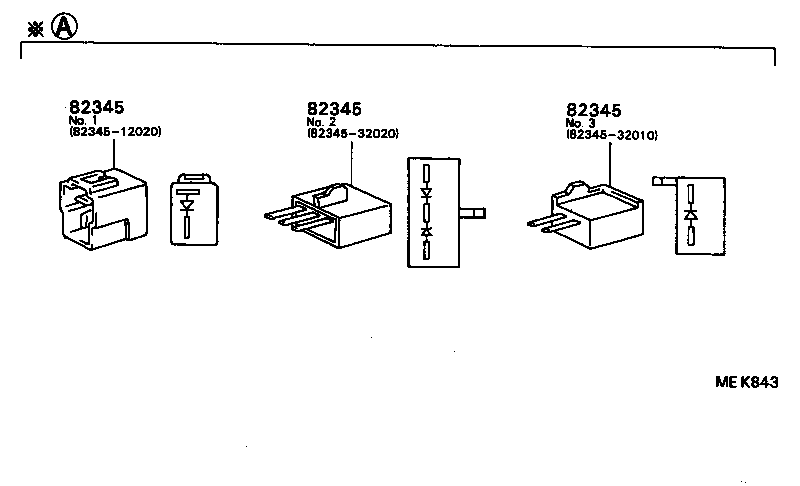

ILLUST NO. 3 OF 8(8310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12020 |
AT150,CT150,ST150 NO.1 |
3 | ||
| 82345-32020 |
AT150,ST162 NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
AT150,CT150,ST150 NO.1 |
3 | ||
| 82345-32020 |
AT150,ST162 NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
AT150,CT150,ST150 NO.1 |
3 | ||
| 82345-32020 |
AT150,ST162 NO.2 |
1 | ||
| Common parts | ||||
| 82345-12020 | ||||
| 82345-32010 | ||||
| 82345-32020 | ||||
