AT150-TEMES (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )3ALU..MTM

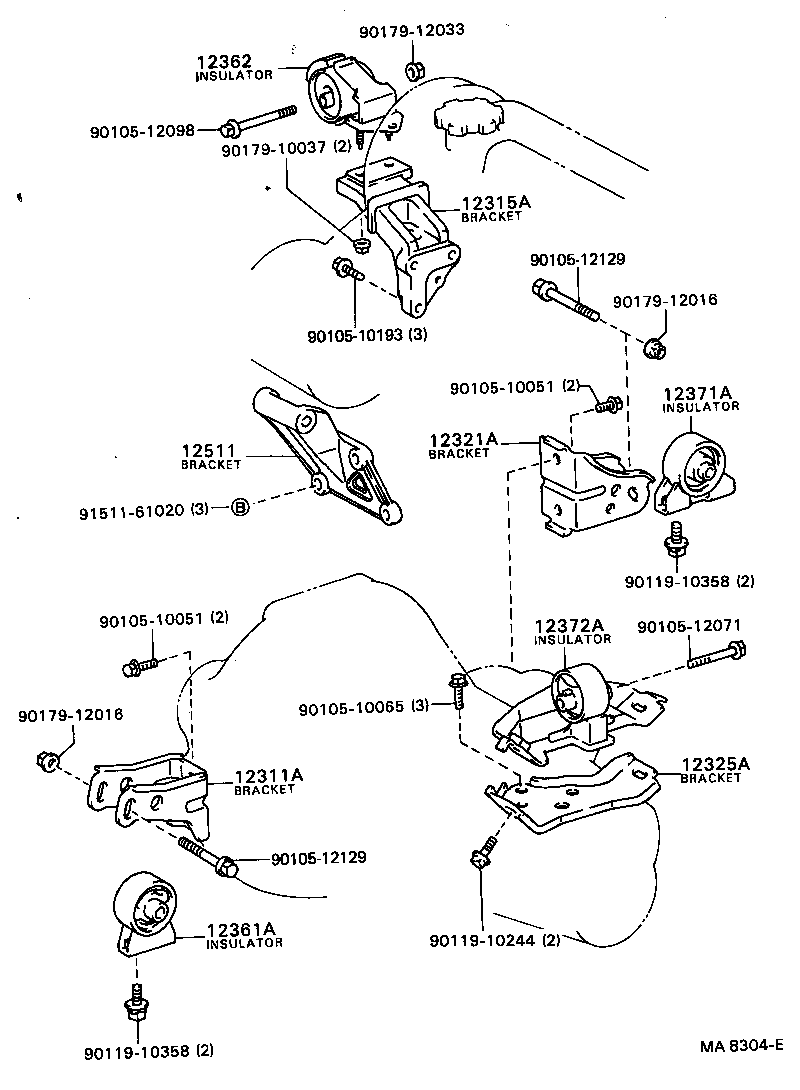

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12361A 12362 12371A 12372A 12511 9010510051 9010510051 9010510065 9010510193 9010512071 9010512098 9010512129 9010512129 9011910244 9011910358 9011910358 9017910037 9017912016 9017912016 9017912033 9151161020
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15110

3ALU..AT150

 1
12311-15080

3ALU..AT150

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15050

3ALU..AT150

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15010

3ALU..AT150..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15010

3ALU..AT150..MTM

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15100

3ALU..AT150..MTM

 1
12361-15101

3ALU..AT150..MTM

 1
12361-15140

3ALU..AT150..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-15090

3ALU..AT150

 1
12362-15091

3ALU..AT150

 1
12362-15030

3ALU..AT150

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15091

3ALU..AT150..MTM

 1
12371-15090

3ALU..AT150..MTM

 1
12371-15180

3ALU..AT150..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15060

3ALU..AT150..MTM

 1
12372-15061

3ALU..AT150..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15021

3ALU..AT150

 1
12511-15020

3ALU..AT150

 1
Common parts
90105-10051
90105-10065
90105-10193
90105-12071
90105-12098
90105-12129
90119-10244
90119-10358
90179-10037
90179-12016
90179-12033
91511-61020
