AT150-TEKRS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )4D

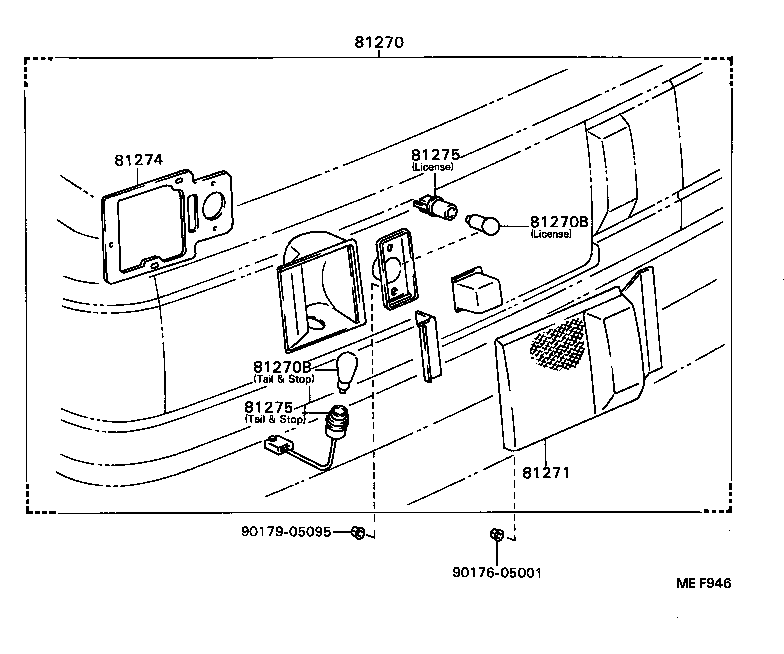

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81274 81275 81275 9017605001 9017905095
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-20300

AT150,CT150,ST150,16#..4D

RH

 1
81690-20090

AT150,CT150,ST150,16#..4D

LH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012

AT150,CT150,ST150,16#

12V 7.5W,12V 7.5W

 2
99132-21210

AT150,CT150,ST150,16#..4D

12V 21/5W,12V 21/5W

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012

AT150,CT150,ST150,16#

12V 7.5W,12V 7.5W

 2
99132-21210

AT150,CT150,ST150,16#..4D

12V 21/5W,12V 21/5W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-20300

AT150,CT150,ST150,16#..4D

RH

 1
81691-20090

AT150,CT150,ST150,16#..4D

LH

 1
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-20300

AT150,CT150,ST150,16#..4D

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12230

AT150,CT150,ST150,16#..4D

LICENSE PLATE LAMP

 1
81275-20300

AT150,CT150,ST150,16#..4D

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12230

AT150,CT150,ST150,16#..4D

LICENSE PLATE LAMP

 1
81275-20300

AT150,CT150,ST150,16#..4D

 2
Common parts
90176-05001
90179-05095
