AT150-TEKRS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )4D

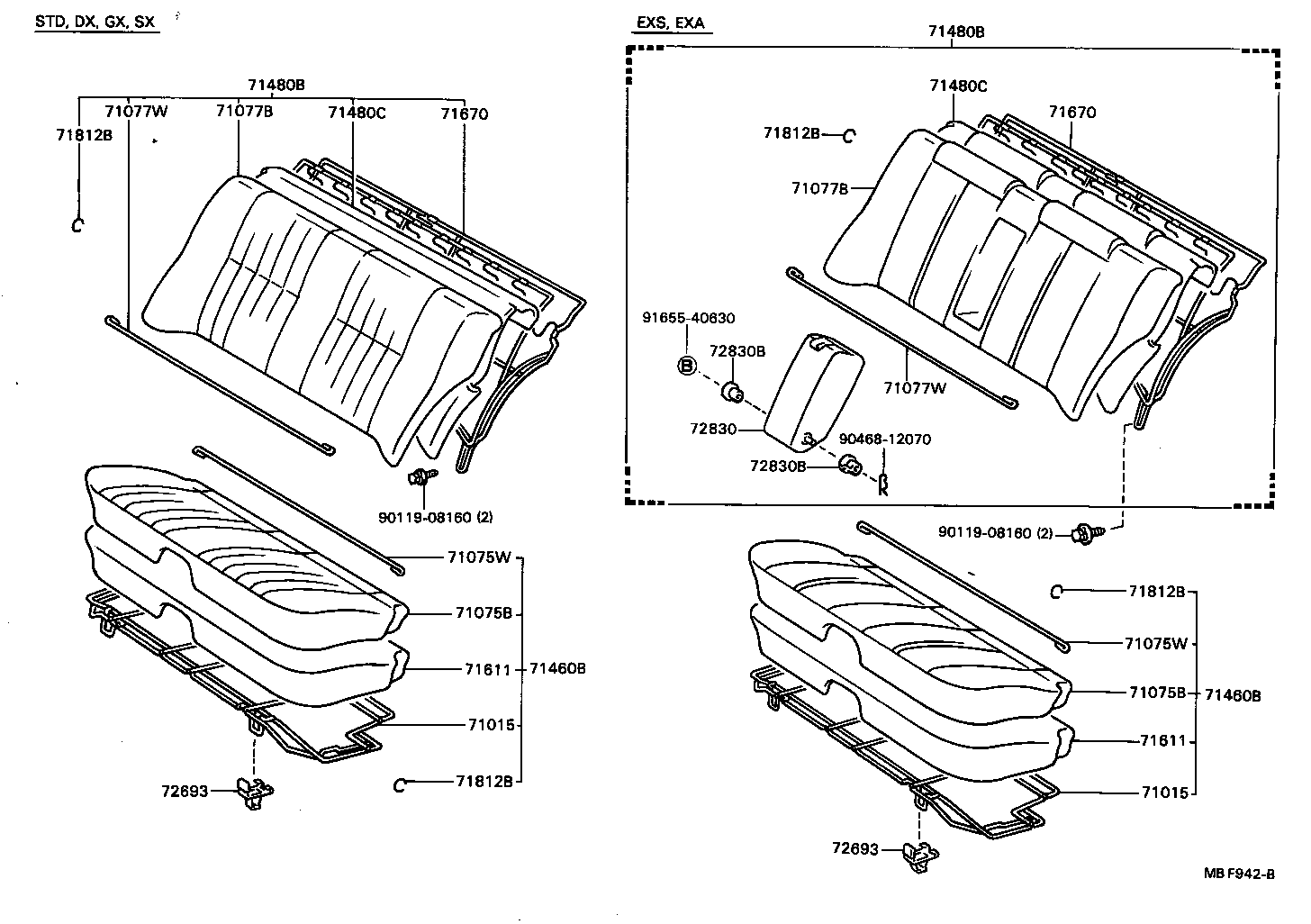

Click highlighted areas on diagram

diagram 71015 71015 71075B 71075B 71075W 71075W 71077B 71077B 71077W 71077W 71460B 71460B 71480B 71480B 71480C 71480C 71611 71611 71670 71670 71812B 71812B 71812B 71812B 72693 72693 72830 72830B 72830B 9011908160 9011908160 9046812070 9165540630
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-20170

AT150,CT150,ST150

 1
71015-20171

AT150,CT150,ST150

 1
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-20170

AT150,CT150,ST150

 1
71015-20171

AT150,CT150,ST150

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-2016003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-2016003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20107

AT150,CT150,ST150

L=1180

 1
90580-20063

AT150,CT150,ST150

L=1080

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20107

AT150,CT150,ST150

L=1180

 1
90580-20063

AT150,CT150,ST150

L=1080

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2B27003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2B27003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20023

AT150,CT150,ST150..4D

L=110

 2
90580-20106

AT150,CT150,ST150..4D

L=500

 2
90580-20111

AT150,CT150,ST150..4D

L=1040

 1
90580-20170

AT150,CT150,ST150..4D

L=1550

 1
90580-20165

AT150,CT150,ST150..4D

L=470

 4
90580-20168

AT150,CT150,ST150..4D

L=1300

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20023

AT150,CT150,ST150..4D

L=110

 2
90580-20106

AT150,CT150,ST150..4D

L=500

 2
90580-20111

AT150,CT150,ST150..4D

L=1040

 1
90580-20170

AT150,CT150,ST150..4D

L=1550

 1
90580-20165

AT150,CT150,ST150..4D

L=470

 4
90580-20168

AT150,CT150,ST150..4D

L=1300

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2013003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71560-2013103

AT150..STD

PF,GRAY,GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2013003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71560-2013103

AT150..STD

PF,GRAY,GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2B37003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71480-2B37103

AT150..STD

PF,GRAY,GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2B37003

AT150..STD

PF,LIGHT GRAY,GRAY,TRIM1#

 1
71480-2B37103

AT150..STD

PF,GRAY,GRAY,TRIM1#

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-20090

AT150..DX,STD

 1
71507-20140

AT150..DX,STD

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-20090

AT150..DX,STD

 1
71507-20140

AT150..DX,STD

 1
71611 - PAD, REAR SEAT CUSHION
71611-20310

AT150..5D;ST150..DX,GX,SX;ST150..5D..(EXA,EXS);AT150,CT150..4D..(DX,GX,STD)

 1
71611 - PAD, REAR SEAT CUSHION
71611-20310

AT150..5D;ST150..DX,GX,SX;ST150..5D..(EXA,EXS);AT150,CT150..4D..(DX,GX,STD)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-20280

AT150,CT150,ST150..4D..(DX,GX,STD,SX)

 1
71670-20281

AT150,CT150,ST150..4D..(DX,GX,STD,SX)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-20280

AT150,CT150,ST150..4D..(DX,GX,STD,SX)

 1
71670-20281

AT150,CT150,ST150..4D..(DX,GX,STD,SX)

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AT150,CT150,ST150,16#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AT150,CT150,ST150,16#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AT150,CT150,ST150,16#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AT150,CT150,ST150,16#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20010

AT150,CT150,ST150,16#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20010

AT150,CT150,ST150,16#

 2
Common parts
90119-08160
90468-12070
91655-40630
