AT150-TEKRS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )AT150,CT150,ST150..4D

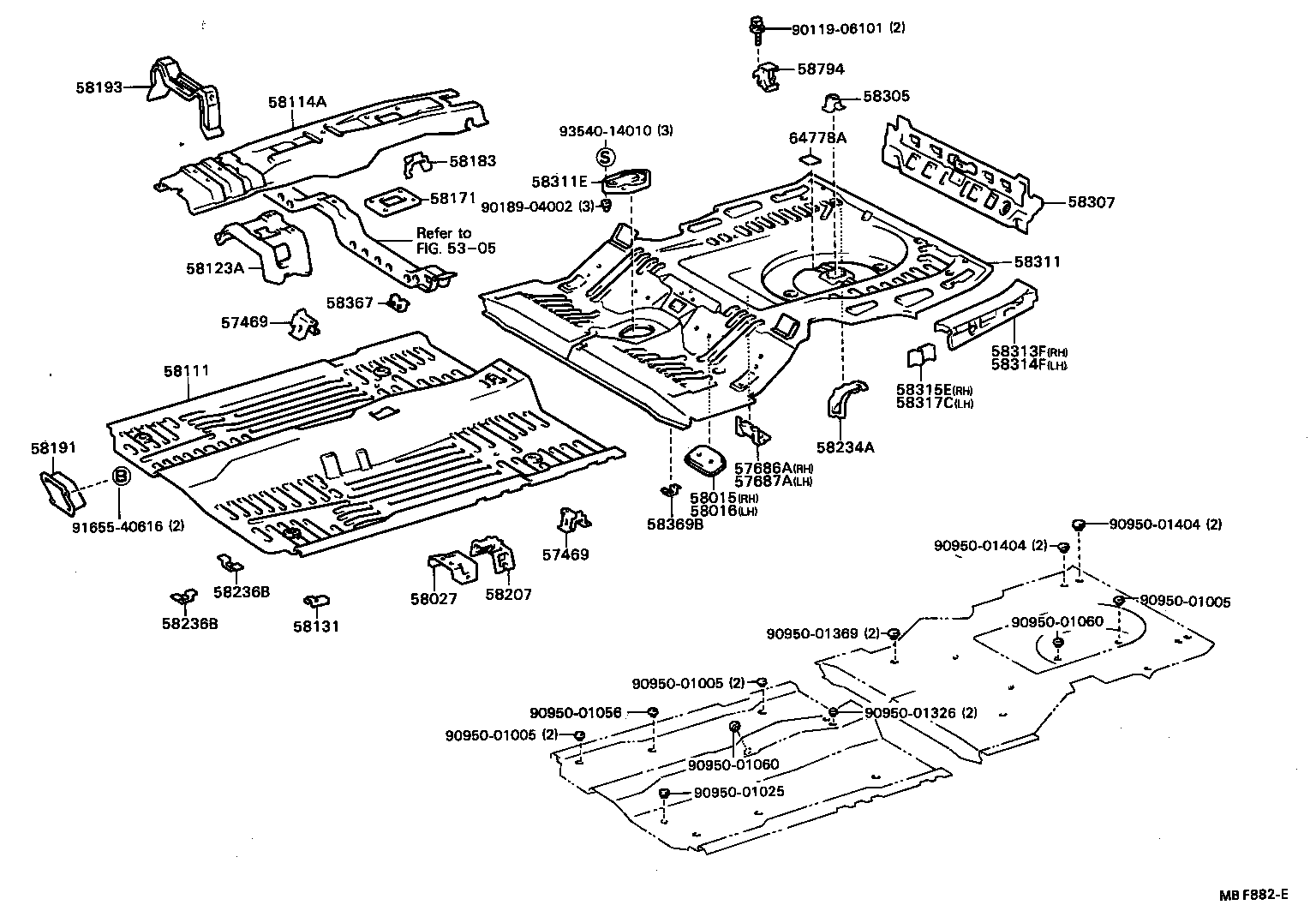

Click highlighted areas on diagram

diagram 5305 57469 57469 57686A 57687A 58015 58016 58027 58111 58114A 58123A 58131 58171 58183 58191 58193 58207 58234A 58236B 58236B 58305 58307 58311 58311E 58313F 58314F 58315E 58317C 58367 58369B 58794 64778A 9011906101 9018904002 9095001005 9095001005 9095001005 9095001025 9095001056 9095001060 9095001060 9095001326 9095001369 9095001404 9095001404 9165540616 9354014010
Part # Description Qty Price
57469 - BRACKET, FRONT SEAT, OUTSIDE
57468-20030

AT150,CT150,ST150,16#

RH

 1
57469-20030

AT150,CT150,ST150,16#

LH

 1
57469 - BRACKET, FRONT SEAT, OUTSIDE
57468-20030

AT150,CT150,ST150,16#

RH

 1
57469-20030

AT150,CT150,ST150,16#

LH

 1
57686A - BRACKET, FUEL TANK MOUNTING, REAR RH
57686-32010

AT150,CT150,ST150

 1
57687A - BRACKET, FUEL TANK MOUNTING, REAR LH
57687-32010

AT150,CT150,ST150

 1
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-32020

AT150,CT150,ST150

 1
58015-32010

AT150,CT150,ST150

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58016-32010

AT150,CT150,ST150

 1
58015-32020

AT150,CT150,ST150

 1
58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58027-20021

AT150,CT150,ST150,16#

 1
58027-20020

AT150,CT150,ST150

 1
58111 - PAN, FRONT FLOOR
58111-20061

AT150,CT150,ST150,16#

 1
58111-20060

AT150,CT150,ST150

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20011

AT150,CT150,ST150,16#

 1
58114-20010

AT150,CT150,ST150

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20010

AT150,CT150,ST150,16#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-20040

AT150,CT150,ST150,16#

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20040

AT150,CT150,ST150,16#

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58184-20040

AT150,CT150,ST150,16#

LH

 1
58183-20040

AT150,CT150,ST150,16#

RH

 1
58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58207-20060

AT150,CT150,ST150

 1
58207-20080

AT150,CT150,ST150,16#

 1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-32010

AT150,CT150,ST150

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AT150,CT150,ST150,16#

 5
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AT150,CT150,ST150,16#

 5
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AT150,CT150,ST150,16#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20410

AT150,CT150,ST150,16#..4D

 1
58311 - PAN, REAR FLOOR
58311-32010

AT150,CT150,ST150..4D

 1
58311E - COVER, REAR FLOOR SERVICE HOLE
58325-32010

AT150,CT150,ST150

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-20100

AT150,CT150,ST150..4D

 1
58313-20130

AT150,CT150,ST150..4D

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-20080

AT150,CT150,ST150..4D

 1
58314-20110

AT150,CT150,ST150..4D

 1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-32010

AT150,CT150,ST150,16#..4D

 1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58317-32010

AT150,CT150,ST150,16#..4D

 1
58367 - BRACKET, FUEL TUBE CLAMP
58367-20030

AT150,CT150,ST150,16#

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-30010

AT150,CT150,ST150

 5
58794 - CARRIER, JACK
58791-20010

AT150,CT150,ST150

 1
58791-20030

AT150,CT150,ST150,16#

 1
64778A - PROTECTOR, SPARE WHEEL
64778-20020

AT150,CT150,ST150,16#

 3
Common parts
90119-06101
90189-04002
90950-01005
90950-01025
90950-01056
90950-01060
90950-01326
90950-01369
90950-01404
91655-40616
93540-14010
Linked diagrams
5305
