AT150-TEKRS (1983)
Toyota Corona
Production
Oct 1983
-
Nov 1987
Engine
3ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8310- )3ALU

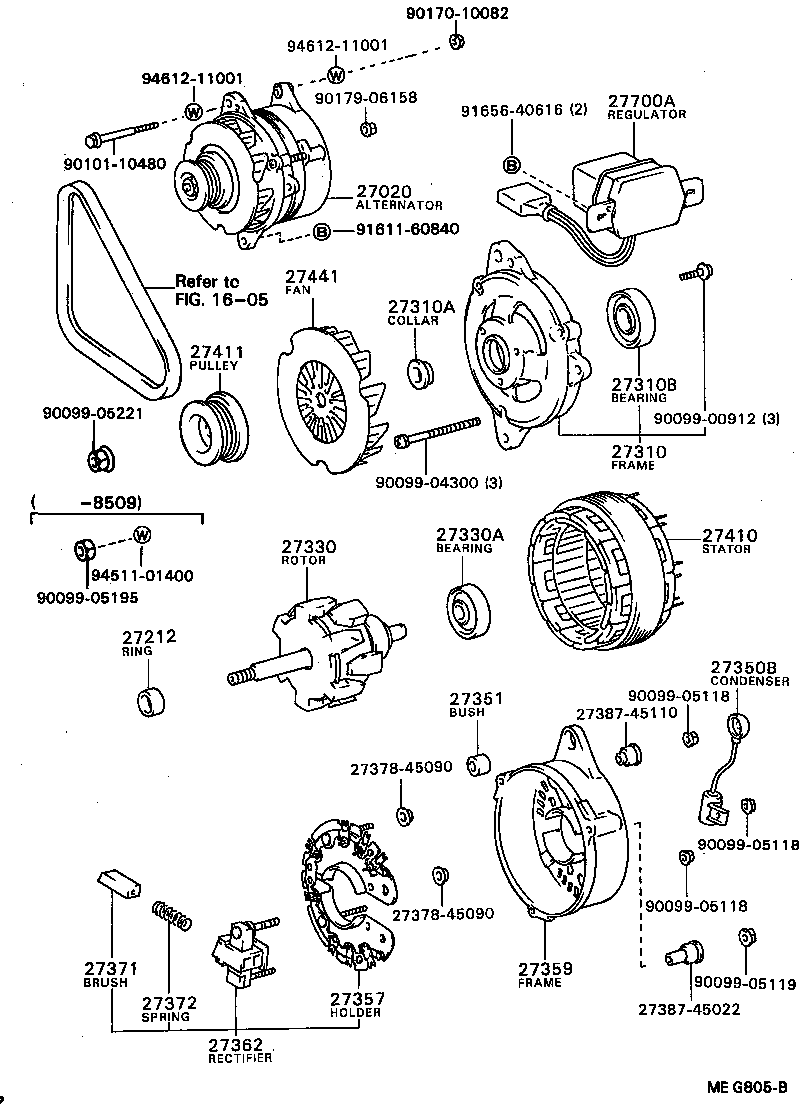

Click highlighted areas on diagram
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-16030 |
3ALU..AT150 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
3ALU..AT150 12V 50A |
1 | ||
| 27412-15150 |
3ALU..AT150 12V 50A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15150 |
3ALU..AT150 12V 50A |
1 | ||
| 27310-16030 |
3ALU..AT150 12V 50A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-63030 |
3ALU..AT150 12V 50A |
1 | ||
| 27412-16040 |
3ALU..AT150 12V 50A |
1 | ||
| 27412-16030 |
3ALU..AT150 12V 50A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
3ALU..AT150 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
3ALU..AT150 12V 50A |
1 | ||
| 27330-16030 |
3ALU..AT150 12V 50A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3ALU..AT150 12V 50A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3ALU..AT150 12V 50A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3ALU..AT150 12V 50A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-15022 |
3ALU..AT150 12V 50A |
0 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-63010 |
3ALU..AT150 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15022 |
3ALU..AT150 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3ALU..AT150 12V 50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3ALU..AT150 12V 50A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
3ALU..AT150 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-15150 |
3ALU..AT150 12V 50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-15150 |
3ALU..AT150 12V 50A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15040 |
3ALU..AT150 12V 50A |
1 | ||
| 27700-15040 |
3ALU,2CL..AT150,CT150 12V 50A,55A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05195 | ||||
| 90099-05221 | ||||
| 90101-10480 | ||||
| 90170-10082 | ||||
| 90179-06158 | ||||
| 91611-60840 | ||||
| 91656-40616 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 1605 | ||||
