AT150-TEKNS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )4D

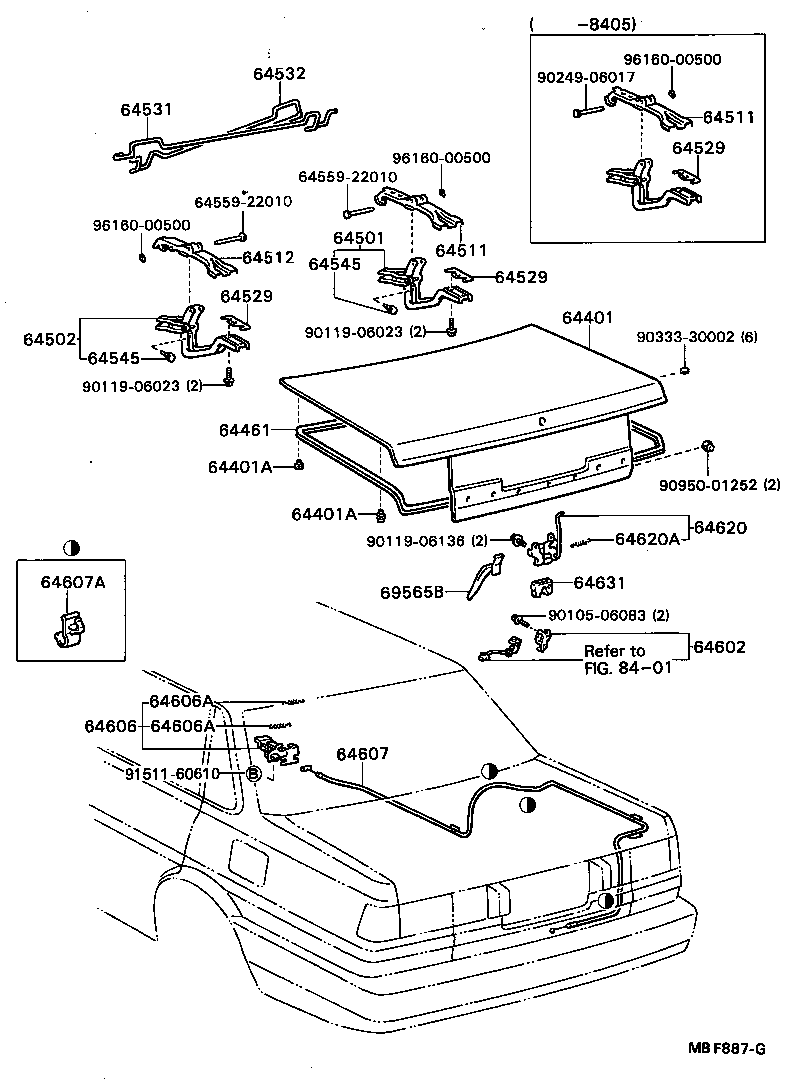

Click highlighted areas on diagram

diagram 64401 64401A 64401A 64461 64501 64502 64511 64511 64512 64529 64529 64529 64531 64532 64545 64545 6455922010 6455922010 64602 64606 64606A 64606A 64607 64607A 64620 64620A 64631 69565B 8401 9010506083 9011906023 9011906023 9011906136 9024906017 9033330002 9095001252 9151160610 9616000500 9616000500 9616000500
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-20710

AT150,CT150,ST150..4D

 1
64401-2B130

AT150,CT150,ST150,16#..4D

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

AT150,CT150,ST150,16#..4D

FR

 2
90541-09041

AT150,CT150,ST150,16#..4D

RR

 4
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

AT150,CT150,ST150,16#..4D

FR

 2
90541-09041

AT150,CT150,ST150,16#..4D

RR

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20150

AT150,CT150,ST150,16#..4D

 1
64461-20250

AT150,CT150,ST150,16#..4D

COLD SPEC

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20100

AT150,CT150,ST150,16#..4D

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-20100

AT150,CT150,ST150,16#..4D

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-20070

AT150,CT150,ST150,16#..4D

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-20070

AT150,CT150,ST150,16#..4D

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-20070

AT150,CT150,ST150,16#..4D

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

AT150,CT150,ST150,16#..4D

T=1.0

 1
64529-20020

AT150,CT150,ST150,16#..4D

W/SPOILER,T=0.9

 2
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

AT150,CT150,ST150,16#..4D

T=1.0

 1
64529-20020

AT150,CT150,ST150,16#..4D

W/SPOILER,T=0.9

 2
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

AT150,CT150,ST150,16#..4D

T=1.0

 1
64529-20020

AT150,CT150,ST150,16#..4D

W/SPOILER,T=0.9

 2
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20100

AT150,CT150,ST150,16#..4D

 1
64531-20120

AT150,CT150,ST150,16#..4D

W/SPOILER

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20100

AT150,CT150,ST150,16#..4D

 1
64532-20120

AT150,CT150,ST150,16#..4D

W/SPOILER

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07016

AT150,CT150,ST150,16#..4D

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07016

AT150,CT150,ST150,16#..4D

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64621-12060

AT150,CT150,ST150,16#..4D..(DX,GT,GX,STD,SX,SXR)

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-14030

AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20120

AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
69749-12010

AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)

 4
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20050

AT150,CT150,ST150

 1
64610-20110

AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR)

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-08001

AT150,CT150,ST150,16#..4D

 1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-12010

AT150,CT150,ST150..4D

 1
64631-91D01

AT150,CT150,ST150,16#..4D

 1
69565B - FUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69565-12010

AT150,CT150,ST150,16#..4D

 1
Common parts
64559-22010
90105-06083
90119-06023
90119-06136
90249-06017
90333-30002
90950-01252
91511-60610
96160-00500
Linked diagrams
8401
