AT150-TEKNS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

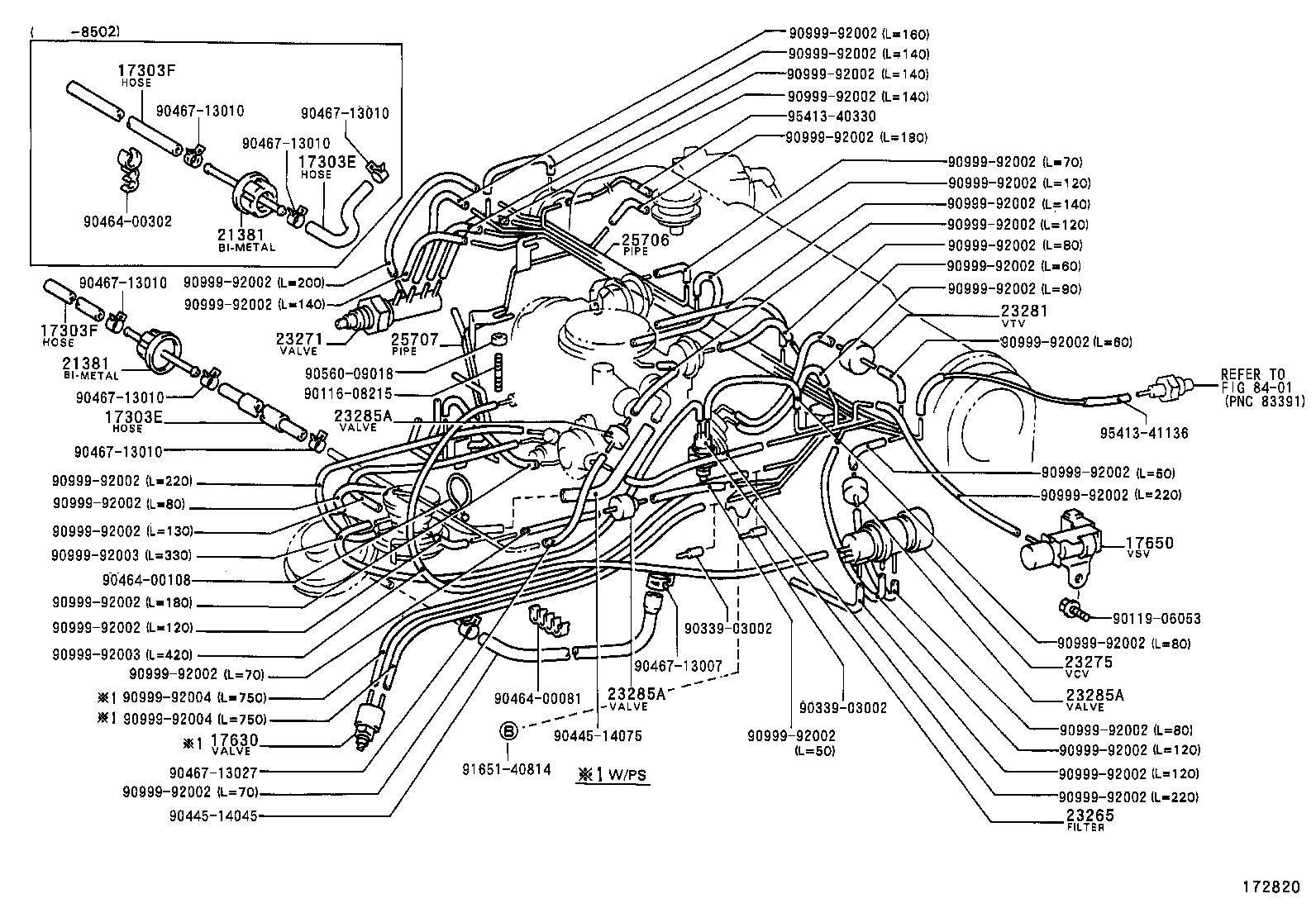

(8310-8508)3ALU

Click highlighted areas on diagram

diagram 17303E 17303E 17303F 17303F 17630 17650 21381 21381 23265 23271 23275 23281 23285A 23285A 23285A 25706 25707 8401 9011608215 9011906053 9033903002 9033903002 9044514045 9044514075 9046400081 9046400108 9046400302 9046713007 9046713010 9046713010 9046713010 9046713010 9046713010 9046713010 9046713027 9056009018 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992004 9099992004 9165140814 9541340330 9541341136
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
77791-12040

3ALU..AT150

 1
90445-14151

3ALU..AT150

 1
77791-12041

3ALU..AT150

 1
90445-14084

3ALU..AT150

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
77791-12040

3ALU..AT150

 1
90445-14151

3ALU..AT150

 1
77791-12041

3ALU..AT150

 1
90445-14084

3ALU..AT150

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90445-14097

3ALU..AT150

 1
77759-12060

3ALU..AT150

 1
90445-14108

3ALU..AT150

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90445-14097

3ALU..AT150

 1
77759-12060

3ALU..AT150

 1
90445-14108

3ALU..AT150

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15030

3ALU..AT150..EXS,GX

W/PS

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12280

3ALU..AT150

 1
89570-12330

3ALU..AT150

 1
21381 - BIMETAL, THERMOSTATIC
21381-15320

3ALU..AT150

 1
21381 - BIMETAL, THERMOSTATIC
21381-15320

3ALU..AT150

 1
23265 - FILTER, GAS, NO.1
90917-11023

3ALU..AT150

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

3ALU..AT150

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03145

3ALU..AT150

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01091

3ALU..AT150..MTM

 1
90925-01091

3ALU..AT150

 1
23285A - VALVE, CHECK, NO.1
90917-10049

3ALU..AT150

 3
23285A - VALVE, CHECK, NO.1
90917-10049

3ALU..AT150

 3
23285A - VALVE, CHECK, NO.1
90917-10049

3ALU..AT150

 3
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15200

3ALU..AT150

 1
25706-15150

3ALU..AT150

 1
25706-15151

3ALU..AT150

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16010

3ALU..AT150

 1
25707-16010

3ALU..AT150

 1
25707-15170

3ALU..AT150

 1
Common parts
90116-08215
90119-06053
90339-03002
90445-14045
90445-14075
90464-00081
90464-00108
90464-00302
90467-13007
90467-13010
90467-13027
90560-09018
90999-92002
90999-92003
90999-92004
91651-40814
95413-40330
95413-41136
Linked diagrams
8401

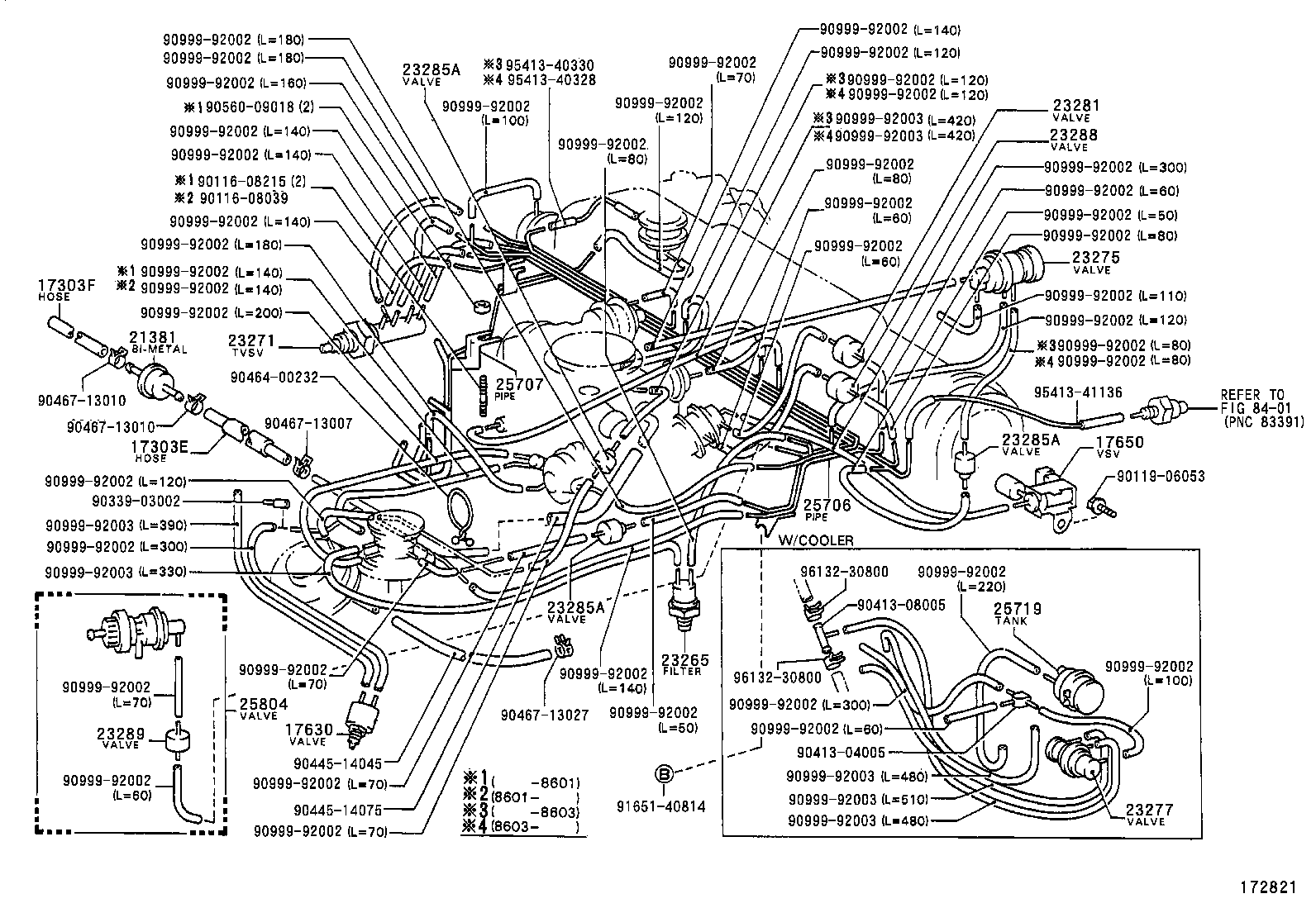

(8508- )3ALU

Click highlighted areas on diagram

diagram 17303E 17303F 17630 17650 21381 23265 23271 23275 23277 23281 23285A 23285A 23285A 23288 23289 25706 25707 25719 25804 8401 9011608039 9011608215 9011906053 9033903002 9041304005 9041308005 9044514045 9044514075 9046400232 9046713007 9046713010 9046713010 9046713027 9056009018 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992003 9099992003 9099992003 9165140814 9541340328 9541340330 9541341136 9613230800 9613230800
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
77791-12040

3ALU..AT150

 1
90445-14151

3ALU..AT150

 1
77791-12041

3ALU..AT150

 1
90445-14084

3ALU..AT150

 1
17303F - HOSE, NO.2(FOR AIR PIPE)
90445-14097

3ALU..AT150

 1
77759-12060

3ALU..AT150

 1
90445-14108

3ALU..AT150

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15030

3ALU..AT150..EXS,GX

W/PS

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12280

3ALU..AT150

 1
89570-12330

3ALU..AT150

 1
21381 - BIMETAL, THERMOSTATIC
21381-15320

3ALU..AT150

 1
23265 - FILTER, GAS, NO.1
90917-11023

3ALU..AT150

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

3ALU..AT150

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03145

3ALU..AT150

 1
23277 - VALVE, VACUUM CONTROL, NO.3
90925-03153

3ALU..AT150

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01091

3ALU..AT150..MTM

 1
90925-01091

3ALU..AT150

 1
23285A - VALVE, CHECK, NO.1
90917-10049

3ALU..AT150

 3
23285A - VALVE, CHECK, NO.1
90917-10049

3ALU..AT150

 3
23285A - VALVE, CHECK, NO.1
90917-10049

3ALU..AT150

 3
23288 - JET, NO.1
90925-04013

3ALU..AT150

 1
23289 - JET, NO.2
90925-04012

3ALU..AT150

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15200

3ALU..AT150

 1
25706-15150

3ALU..AT150

 1
25706-15151

3ALU..AT150

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16010

3ALU..AT150

 1
25707-16010

3ALU..AT150

 1
25707-15170

3ALU..AT150

 1
25719 - TANK, VACUUM SURGE
25719-15010

3ALU..AT150

 1
25804 - VALVE SET, VACUUM CONTROL
25804-12010

3ALU..AT150

 1
Common parts
90116-08039
90116-08215
90119-06053
90339-03002
90413-04005
90413-08005
90445-14045
90445-14075
90464-00232
90467-13007
90467-13010
90467-13027
90560-09018
90999-92002
90999-92003
91651-40814
95413-40328
95413-40330
95413-41136
96132-30800
Linked diagrams
8401
