AT150-TEKDS (1983)
Toyota Corona
Production
Oct 1983
-
Nov 1987
Engine
3ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8310- )3ALU

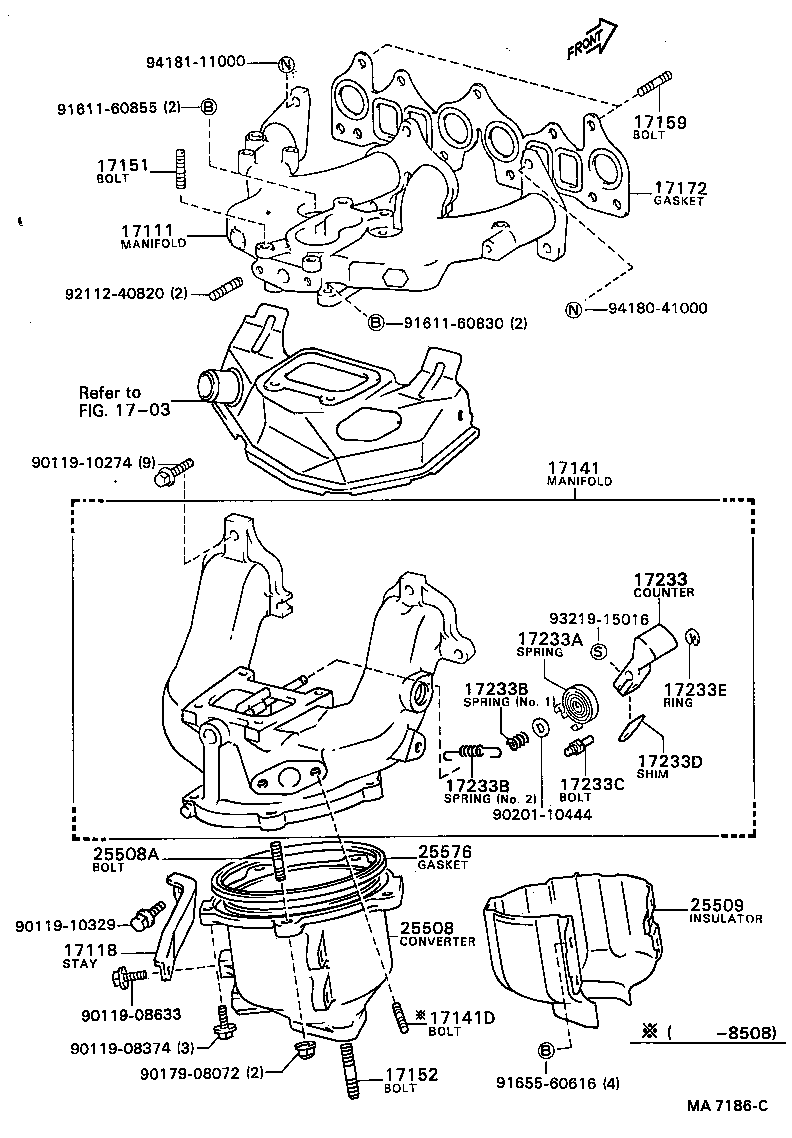

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-15030 |
3ALU..AT150 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-15050 |
3ALU..AT150 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-15090 |
3ALU..AT150 |
1 | ||
| 17140-15110 |
3ALU..AT150 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08216 |
3ALU..AT150 |
4 | ||
| 90116-08214 |
3ALU..AT150 |
4 | ||
| 92112-40832 |
3ALU..AT150 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3ALU..AT150 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61032 |
3ALU..AT150 |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-15010 |
3ALU..AT150 |
1 | ||
| 17233 - COUNTER WEIGHT | ||||
| 17233-15010 |
3ALU..AT150 |
1 | ||
| 17233A - SPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT) | ||||
| 90510-06001 |
3ALU..AT150 |
1 | ||
| 17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT) | ||||
| 90507-08006 |
3ALU..AT150 NO.2 |
1 | ||
| 90501-08022 |
3ALU..AT150 NO.1 |
1 | ||
| 17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT) | ||||
| 90507-08006 |
3ALU..AT150 NO.2 |
1 | ||
| 90501-08022 |
3ALU..AT150 NO.1 |
1 | ||
| 17233C - BOLT(FOR COUNTER WEIGHT) | ||||
| 90109-10045 |
3ALU..AT150 |
1 | ||
| 17233D - SHIM(FOR COUNTER WEIGHT) | ||||
| 90910-10005 |
3ALU..AT150 |
1 | ||
| 17233E - RING, E(FOR COUNTER WEIGHT) | ||||
| 96160-00800 |
3ALU..AT150 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-16020 |
3ALU..AT150 |
1 | ||
| 25508-15010 |
3ALU..AT150 |
1 | ||
| 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) | ||||
| 90116-08171 |
3ALU..AT150 |
2 | ||
| 25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR | ||||
| 25509-15010 |
3ALU..AT150 |
1 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-15010 |
3ALU..AT150 |
1 | ||
| Common parts | ||||
| 90119-08374 | ||||
| 90119-08633 | ||||
| 90119-10274 | ||||
| 90119-10329 | ||||
| 90179-08072 | ||||
| 90201-10444 | ||||
| 91611-60830 | ||||
| 91611-60855 | ||||
| 91655-60616 | ||||
| 92112-40820 | ||||
| 93219-15016 | ||||
| 94180-41000 | ||||
| 94181-11000 | ||||
| Linked diagrams | ||||
| 1703 | ||||
