AT150-TEHNS (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 3ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508)4D

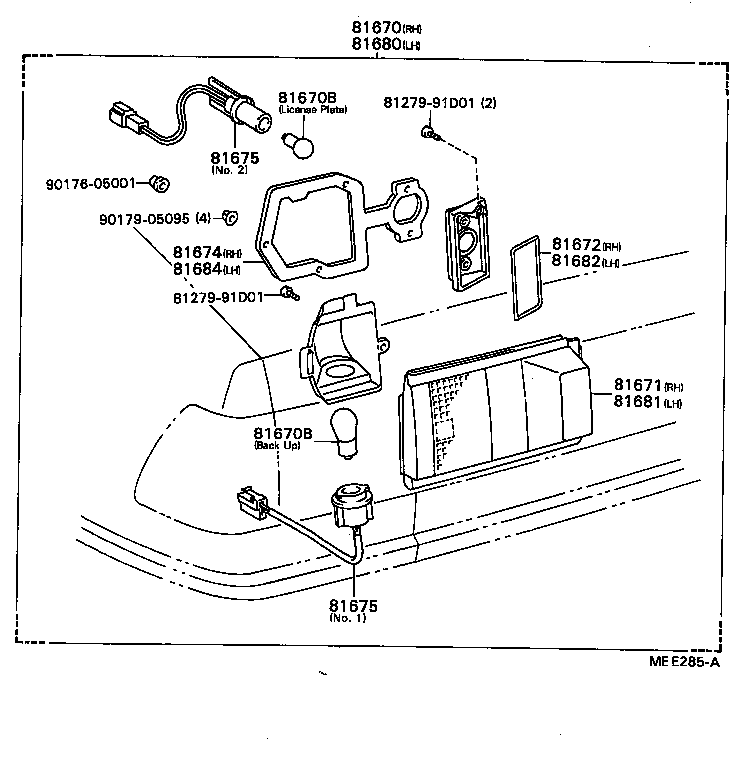

Click highlighted areas on diagram

diagram 8127991D01 8127991D01 81670 81670B 81670B 81671 81672 81674 81675 81675 81680 81681 81682 81684 9017605001 9017905095
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-29145

AT150,CT150,ST150..4D

 1
81670B - BULB(FOR BACK-UP LAMP)
90981-12013

AT150,CT150,ST150..4D

12V 10W,12V 10W

 2
99132-11100

AT150,CT150,ST150..4D

12V 10W,12V 10W

 2
99132-11230

AT150,CT150,ST150

12V 23W,12V 23W

 2
81670B - BULB(FOR BACK-UP LAMP)
90981-12013

AT150,CT150,ST150..4D

12V 10W,12V 10W

 2
99132-11100

AT150,CT150,ST150..4D

12V 10W,12V 10W

 2
99132-11230

AT150,CT150,ST150

12V 23W,12V 23W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-20050

AT150,CT150,ST150..4D

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-20050

AT150,CT150,ST150..4D

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81674-20050

AT150,CT150,ST150..4D

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81275-12240

AT150,CT150,ST150..4D

NO.2

 1
81675-20050

AT150,CT150,ST150..4D

NO.1

 2
81675 - SOCKET & WIRE, BACK-UP LAMP
81275-12240

AT150,CT150,ST150..4D

NO.2

 1
81675-20050

AT150,CT150,ST150..4D

NO.1

 2
81680 - LAMP ASSY, BACK UP, LH
81680-29075

AT150,CT150,ST150..4D

 1
81681 - LENS, BACK-UP LAMP, LH
81681-20010

AT150,CT150,ST150..4D

 1
81682 - GASKET, BACK UP LAMP LENS, LH
81672-20050

AT150,CT150,ST150..4D

 1
81684 - GASKET, BACK UP LAMP BODY, LH
81674-20050

AT150,CT150,ST150..4D

 1
Common parts
81279-91D01
90176-05001
90179-05095
