AT150-TEHNS (1983)
Toyota Corona

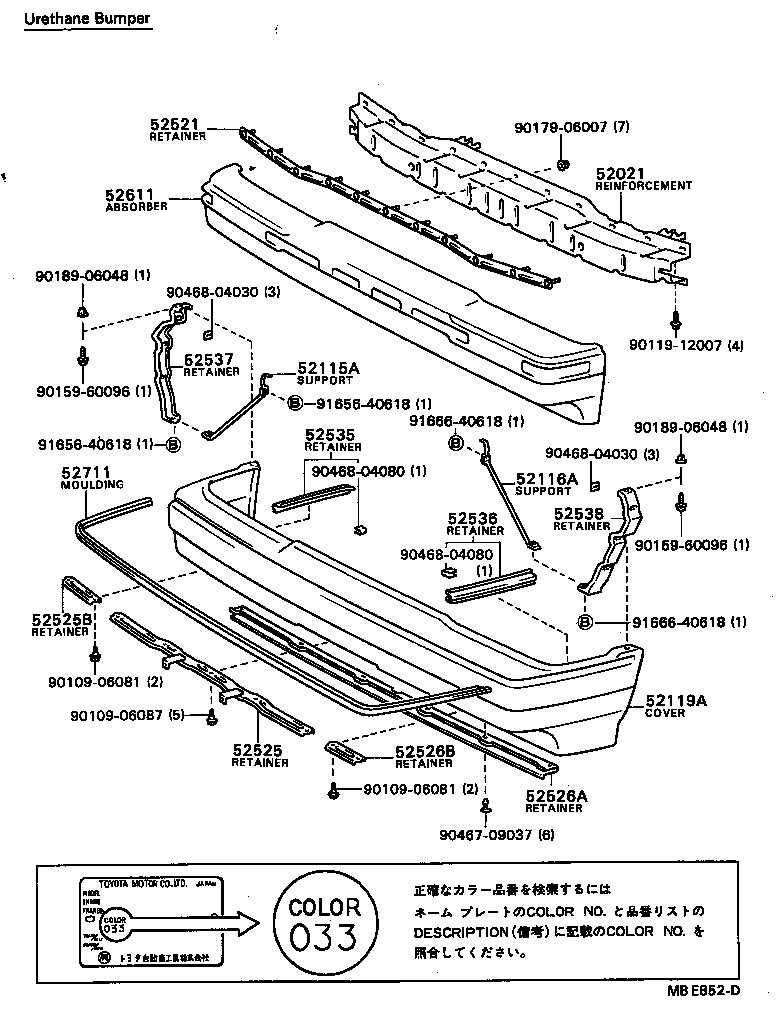

(8301-8508)ST150 ; (8301-8508)AT150,CT150..EXS,GX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-20130 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52021-20060 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20120 |
AT150,CT150,ST150 |
1 | ||
| 52115-20180 |
AT150,CT150,ST150 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-20100 |
AT150,CT150,ST150 |
1 | ||
| 52116-20160 |
AT150,CT150,ST150 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2011015 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,L-BEIGE-M,BEIGE,4D2 |
1 | ||
| 52119-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52119-2029008 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,WHITE,041 |
1 | ||
| 52119-2011022 |
AT150,ST150..4D..GX GX EXTRA,*UB,GARNET RED-M,RED/MAROON,3E4 |
1 | ||
| 52119-20260 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2011008 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,WHITE,IVORY,038 |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52521-20030 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52506-20080 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52506-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH | ||||
| 52526-14030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52526-14030 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-20020 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52565-12040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
8 | ||
| 52526-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH | ||||
| 52526-14030 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526-14030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52535-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52536-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52537-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52537-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52538-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52538-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52611-20080 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-20090 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52711-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52711-20100 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711-20040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90109-06087 | ||||
| 90119-12007 | ||||
| 90159-60096 | ||||
| 90179-06007 | ||||
| 90189-06048 | ||||
| 90467-09037 | ||||
| 90468-04030 | ||||
| 90468-04080 | ||||
| 91656-40618 | ||||
| 91666-40618 | ||||

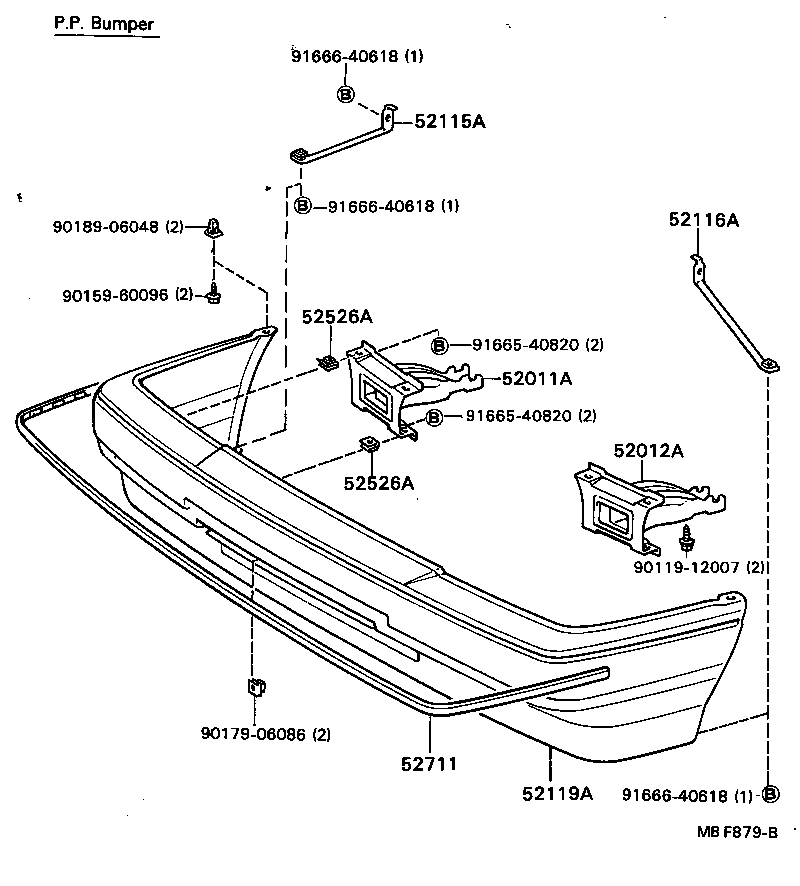

(8310-8508)4D..DX,GX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-20170 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52011-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-20090 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52012-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20120 |
AT150,CT150,ST150 |
1 | ||
| 52115-20180 |
AT150,CT150,ST150 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-20100 |
AT150,CT150,ST150 |
1 | ||
| 52116-20160 |
AT150,CT150,ST150 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2011015 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,L-BEIGE-M,BEIGE,4D2 |
1 | ||
| 52119-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52119-2029008 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,WHITE,041 |
1 | ||
| 52119-2011022 |
AT150,ST150..4D..GX GX EXTRA,*UB,GARNET RED-M,RED/MAROON,3E4 |
1 | ||
| 52119-20260 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2011008 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,WHITE,IVORY,038 |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-20020 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52565-12040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
8 | ||
| 52526-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-20020 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52565-12040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
8 | ||
| 52526-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-20090 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52711-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52711-20100 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711-20040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| Common parts | ||||
| 90119-12007 | ||||
| 90159-60096 | ||||
| 90179-06086 | ||||
| 90189-06048 | ||||
| 91665-40820 | ||||
| 91666-40618 | ||||

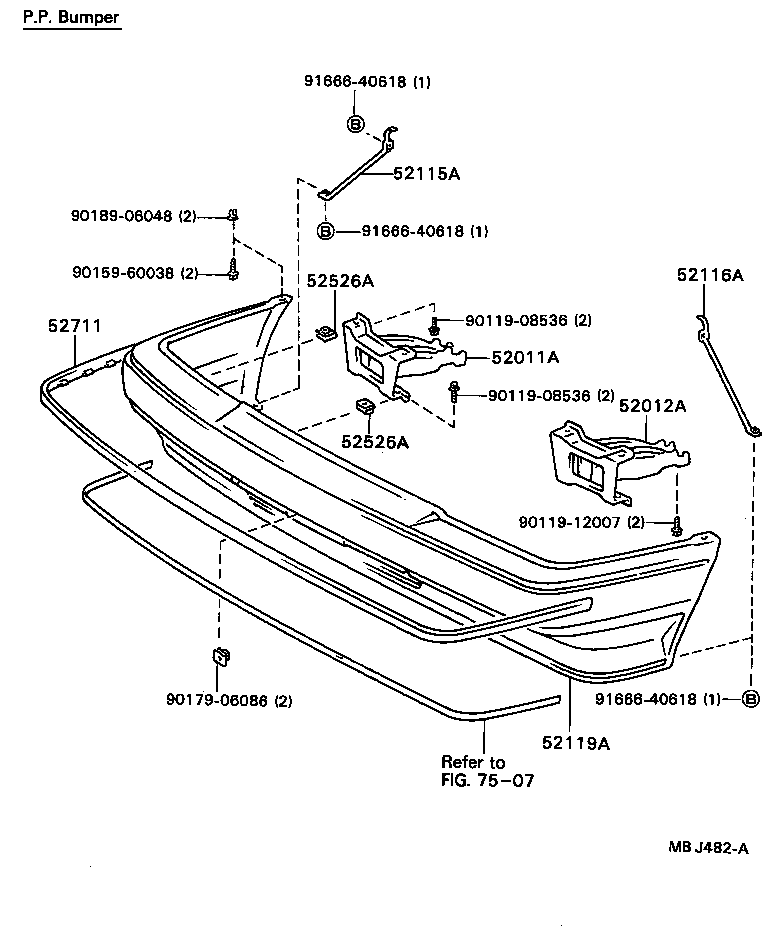

(8508- )4D..DX,GX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-20170 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52011-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-20090 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52012-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20120 |
AT150,CT150,ST150 |
1 | ||
| 52115-20180 |
AT150,CT150,ST150 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-20100 |
AT150,CT150,ST150 |
1 | ||
| 52116-20160 |
AT150,CT150,ST150 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2011015 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,L-BEIGE-M,BEIGE,4D2 |
1 | ||
| 52119-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52119-2029008 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,WHITE,041 |
1 | ||
| 52119-2011022 |
AT150,ST150..4D..GX GX EXTRA,*UB,GARNET RED-M,RED/MAROON,3E4 |
1 | ||
| 52119-20260 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2011008 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,WHITE,IVORY,038 |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-20020 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52565-12040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
8 | ||
| 52526-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-20020 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52565-12040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
8 | ||
| 52526-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-20090 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52711-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52711-20100 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711-20040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| Common parts | ||||
| 90119-08536 | ||||
| 90119-12007 | ||||
| 90159-60038 | ||||
| 90179-06086 | ||||
| 90189-06048 | ||||
| 91666-40618 | ||||
| Linked diagrams | ||||
| 7507 | ||||

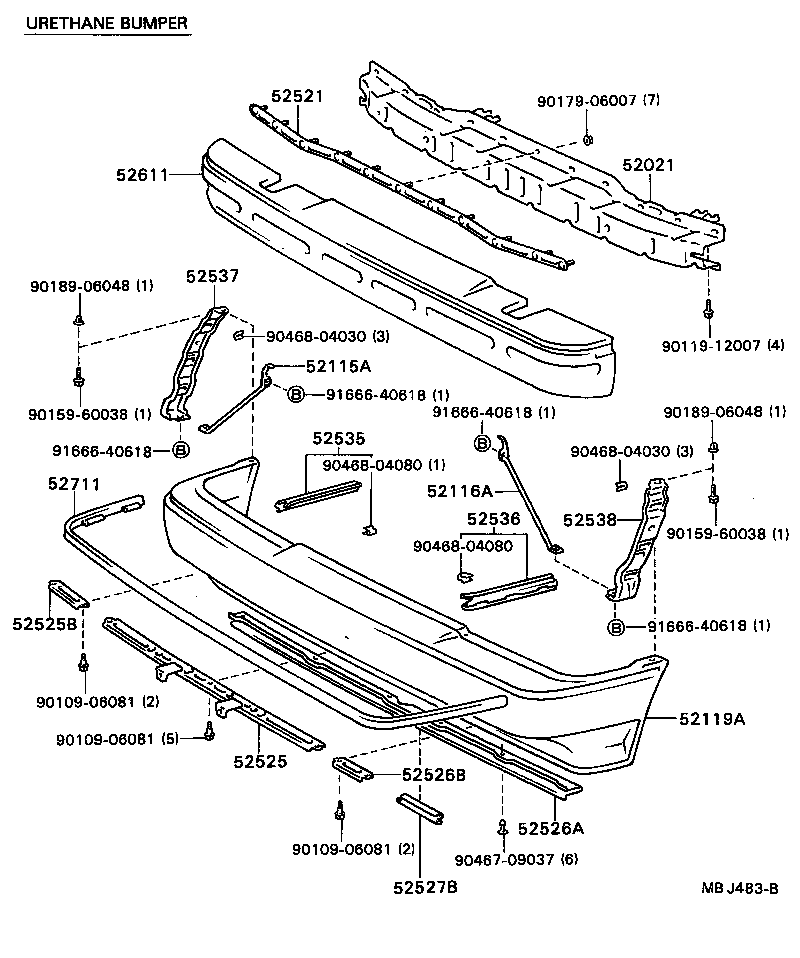

(8508- )EXA,EXS,GT,GX,SX,SXR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-20130 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52021-20060 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20120 |
AT150,CT150,ST150 |
1 | ||
| 52115-20180 |
AT150,CT150,ST150 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-20100 |
AT150,CT150,ST150 |
1 | ||
| 52116-20160 |
AT150,CT150,ST150 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2011015 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,L-BEIGE-M,BEIGE,4D2 |
1 | ||
| 52119-20120 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52119-2029008 |
AT150,CT150,ST150..4D..GX GX EXTRA SALOON,WHITE,WHITE,041 |
1 | ||
| 52119-2011022 |
AT150,ST150..4D..GX GX EXTRA,*UB,GARNET RED-M,RED/MAROON,3E4 |
1 | ||
| 52119-20260 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52119-2011008 |
AT150,ST150..4D..GX GX EXTRA,W/*UB,WHITE,IVORY,038 |
1 | ||
| 52119-2029018 |
AT150,CT150,ST150..4D..GX WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-2029022 |
AT150,CT150,ST150..4D..GX SHELL-M,SHELL METALLIC,3E3 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52521-20030 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52506-20080 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52506-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH | ||||
| 52526-14030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52526-14030 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-20020 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52565-12040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
8 | ||
| 52526-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH | ||||
| 52526-14030 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52526-14030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-20010 |
AT150,CT150,ST150..4D..GX W/*UB |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52535-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52536-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52537-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52537-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52538-20010 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52538-20020 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52611-20080 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-20090 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| 52711-20030 |
AT150,ST150..4D..GX GX EXTRA,W/*UB |
1 | ||
| 52711-20100 |
AT150,CT150,ST150..4D..GX W/*UB |
1 | ||
| 52711-20040 |
AT150,CT150,ST150..4D..(DX,GX,STD) |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90119-12007 | ||||
| 90159-60038 | ||||
| 90179-06007 | ||||
| 90189-06048 | ||||
| 90467-09037 | ||||
| 90468-04030 | ||||
| 90468-04080 | ||||
| 91666-40618 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
