AT141-TSMQF (1983)

Toyota Corona

Production Oct 1983 - Aug 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8201-8508)AT141,RT141,TT142

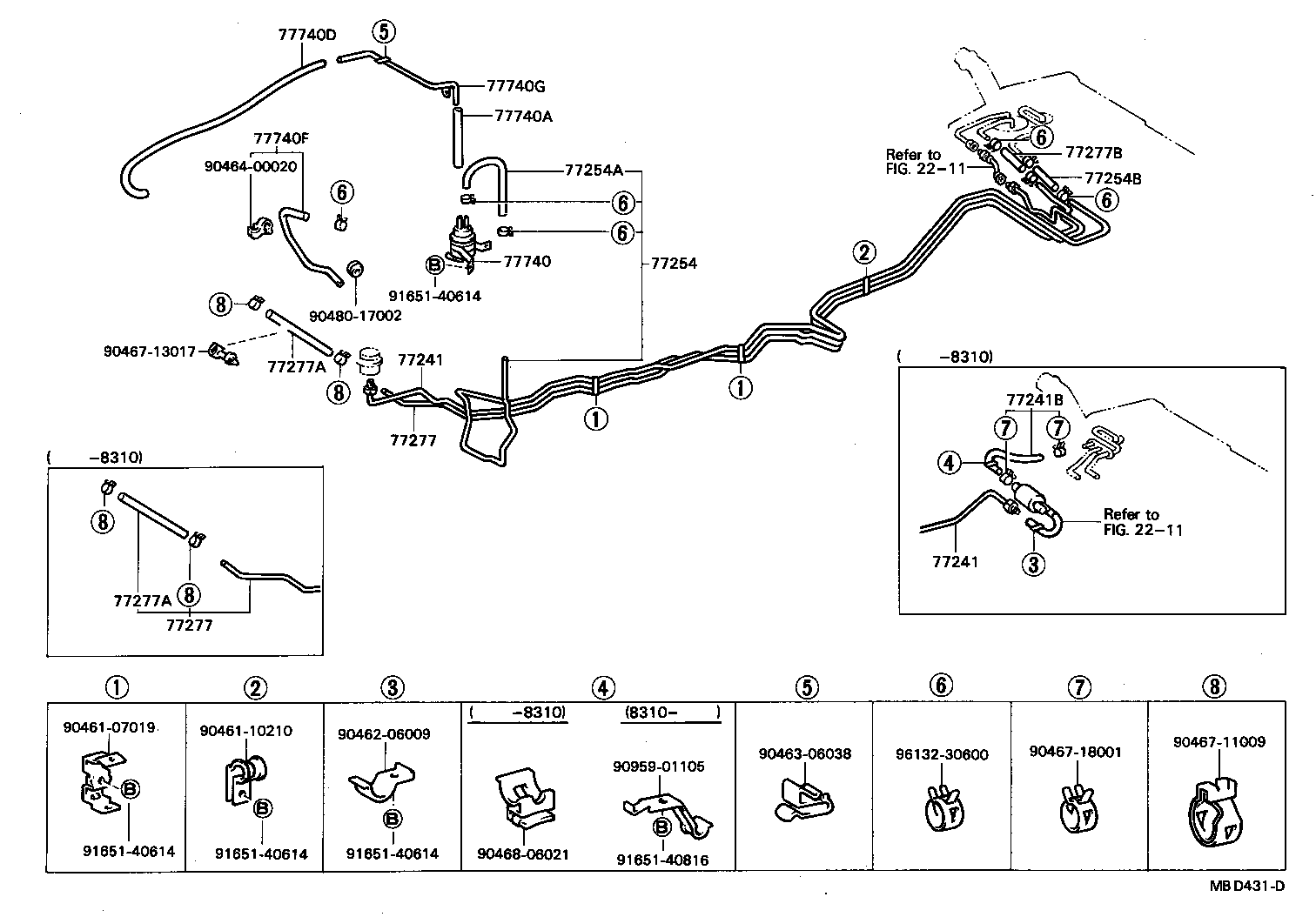

Click highlighted areas on diagram

diagram 2211 2211 77241 77241 77241B 77254 77254A 77254B 77277 77277 77277A 77277A 77277B 77740 77740A 77740D 77740F 77740G 9046107019 9046110210 9046206009 9046306038 9046400020 9046711009 9046713017 9046718001 9046806021 9048017002 9095901105 9165140614 9165140614 9165140614 9165140614 9165140816 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-14300

AT141,TT142

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-14300

AT141,TT142

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-14191

AT141,RT141,TT142

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

AT14#,ST140,TT142

*H,L=260

 1
90447-12040

AT141,TT142

L=260

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

AT141,RT141,TT142

*H,L=140

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-14210

AT141,TT142

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-14210

AT141,TT142

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12045

AT141

L=360

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12045

AT141

L=360

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06020

AT141,RT141,TT142

*H,L=140

 1
77740 - CANISTER ASSY, CHARCOAL
77740-14330

AT141,RT141,TT142..GT,SX

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

AT141,RT141,TT142

*H,L=280,ﾏｰｸ=#*

 1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
95411-19960

AT141

*H,L=570,ﾏｰｸ=#*

 1
77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23819-27020

AT141,RT141,ST140,TT14#

 1
Common parts
90461-07019
90461-10210
90462-06009
90463-06038
90464-00020
90467-11009
90467-13017
90467-18001
90468-06021
90480-17002
90959-01105
91651-40614
91651-40816
96132-30600
Linked diagrams
2211
