AT141-TSMQF (1983)

Toyota Corona

Production Oct 1983 - Aug 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)HT

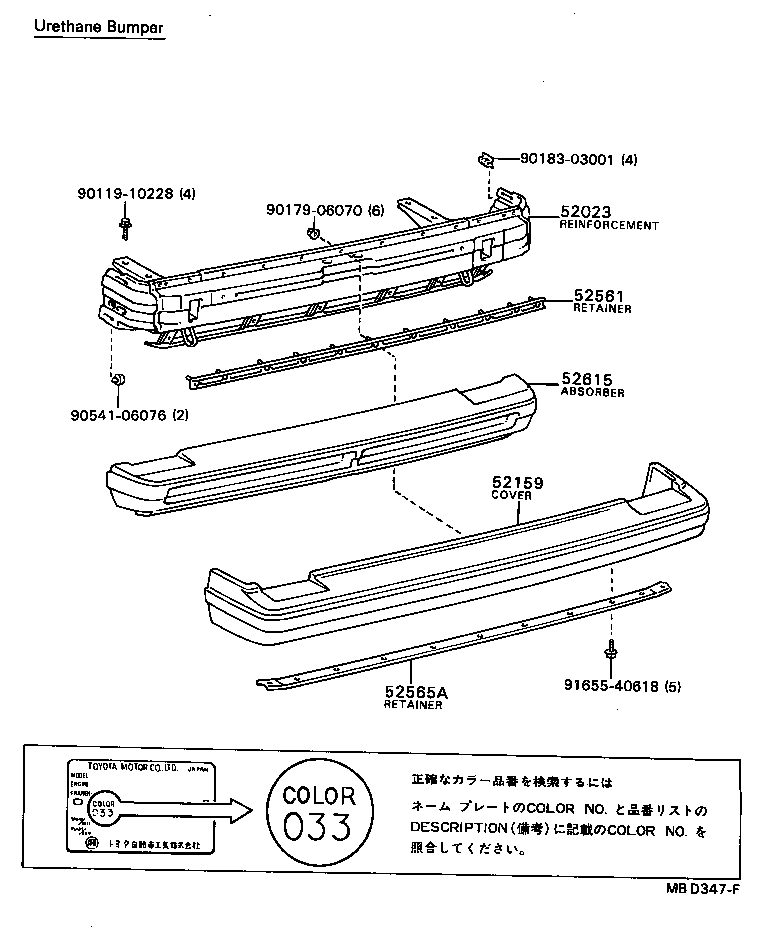

Click highlighted areas on diagram

diagram 52023 52159 52561 52565A 52615 9011910228 9017906070 9018303001 9054106076 9165540618
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-91D01

AT141,RT141,ST140,TT142..HT

 1
52159 - COVER, REAR BUMPER
52159-91D0128

AT141,ST140,TT142..HT

WHITE,IVORY,038

 1
52159-91D0113

AT141,ST140,TT142..HT

SILVER-M,GRAY,2S1

 1
52159-91D0107

AT141,ST140,TT142..HT

TURQUOISE-M,GREEN,722

 1
52159-91D0122

AT141,ST140,TT142..HT

RED,RED/MAROON,3D7

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-91D01

AT141,RT141,ST140,TT142..HT

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-91D01

AT141,RT141,ST140,TT142..HT

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-91D01

AT141,RT141,ST140,TT142..HT

 1
Common parts
90119-10228
90179-06070
90183-03001
90541-06076
91655-40618
