AT141-TSMQF (1983)

Toyota Corona

Production Oct 1983 - Aug 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

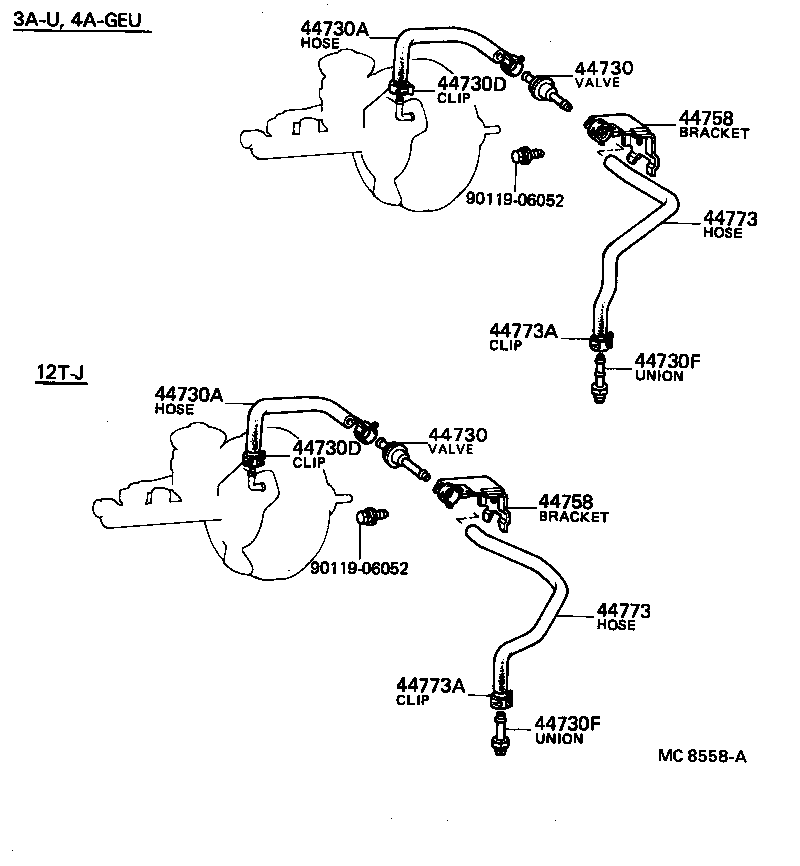

ILLUST NO. 2 OF 2(8201-8712)AT14#,TT147

Click highlighted areas on diagram

diagram 44730 44730 44730A 44730A 44730D 44730D 44730F 44730F 44758 44758 44773 44773 44773A 44773A 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
44730A - HOSE, VACUUM, NO.1
44772-14120

AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
44730A - HOSE, VACUUM, NO.1
44772-14120

AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
44773 - HOSE, VACUUM, NO.2
44773-14390

AT141

 1
44773 - HOSE, VACUUM, NO.2
44773-14390

AT141

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
Common parts
90119-06052

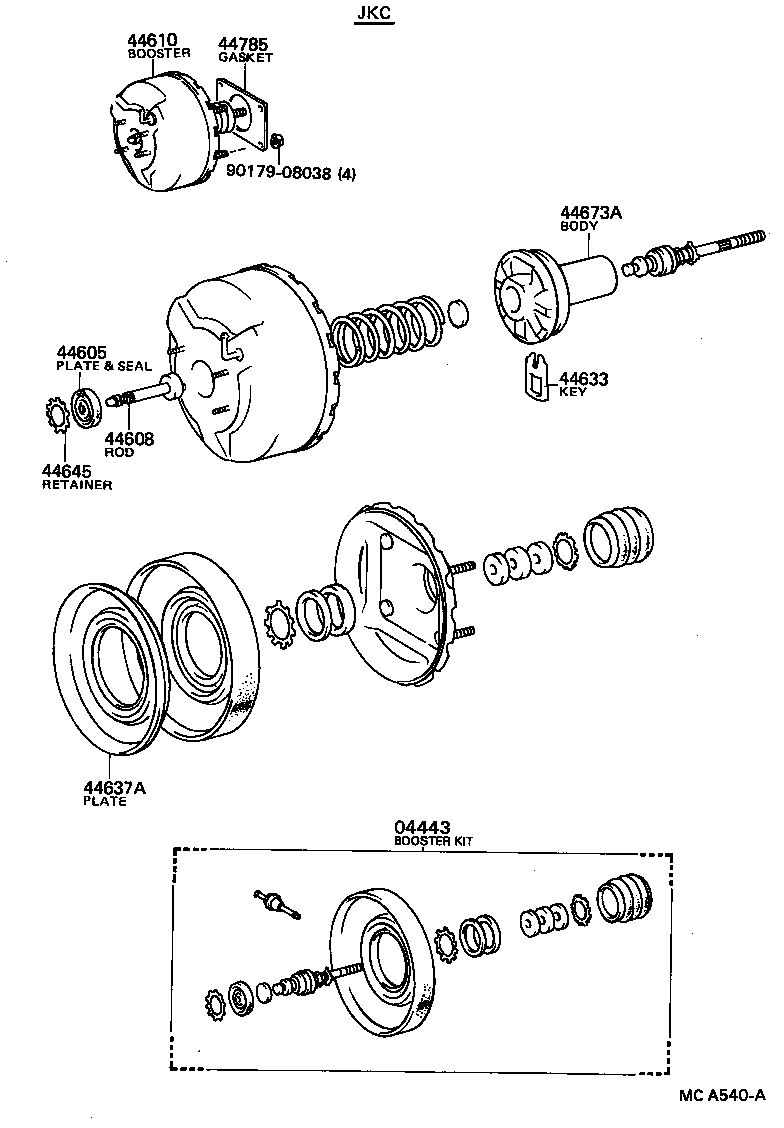

ILLUST NO. 1 OF 2(8310-8508)AT141,TT142

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-14450

AT141

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

AT14#,KT147,RT141,ST140,TT14#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

AT141,TT142

 1
44610 - BOOSTER ASSY, BRAKE
44610-14650

AT141

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AT141,TT142

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

AT141,TT142

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

AT14#,KT147,RT141,ST140,TT14#

 1
44673A - BODY, BOOSTER VALVE
44673-32040

AT141,TT142

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
Common parts
90179-08038
