AT141-TSMQF (1983)
Toyota Corona
Production
Oct 1983
-
Aug 1985
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8310-8508)4AGEU

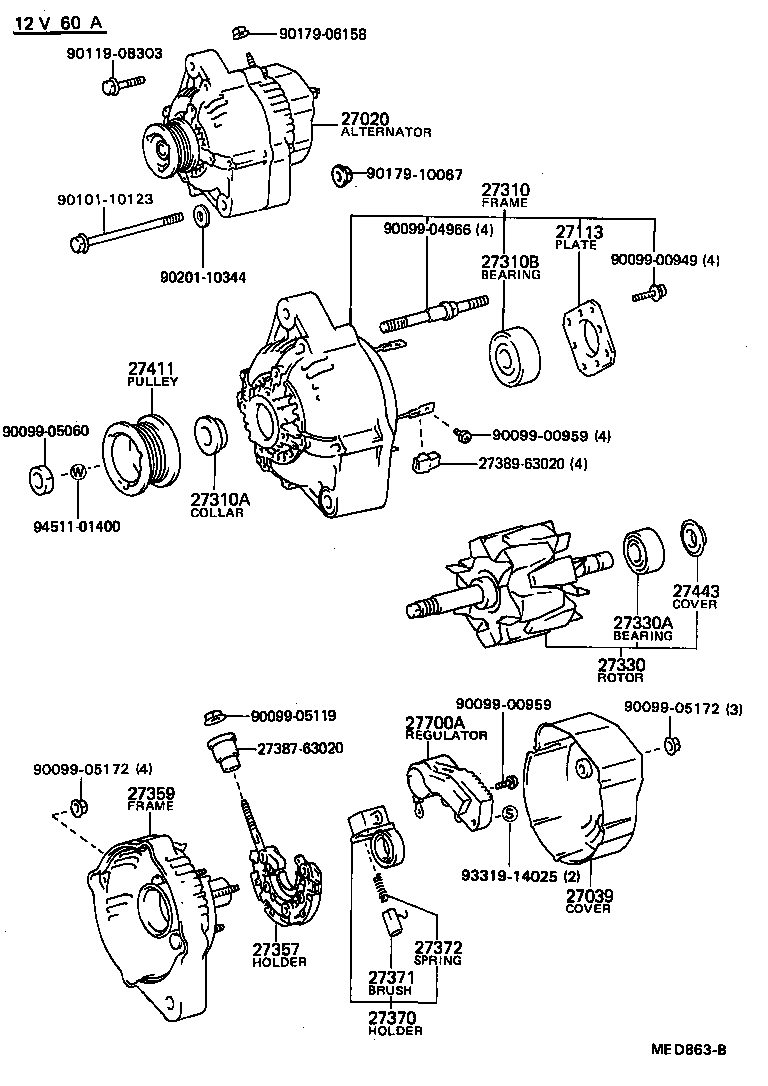

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16010 |
4AGEU..AT141 12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-63021 |
4AGEU..AT141 12V 60A |
1 | ||
| 27039-72010 |
4AGEU..AT141 12V 60A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-63020 |
4AGEU..AT141 12V 60A |
1 | ||
| 27312-72100 |
4AGEU..AT141 12V 60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16011 |
4AGEU..AT141 12V 60A |
1 | ||
| 27310-16010 |
4AGEU..AT141 12V 60A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-63020 |
4AGEU..AT141 12V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10152 |
4AGEU..AT141 12V 60A |
1 | ||
| 90099-10159 |
4AGEU..AT141 12V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72100 |
4AGEU..AT141 12V 60A |
1 | ||
| 27330-63020 |
4AGEU..AT141 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AGEU..AT141 12V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
4AGEU..AT141 12V 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16010 |
4AGEU..AT141 12V 60A |
1 | ||
| 27359-16011 |
4AGEU..AT141 12V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16010 |
4AGEU..AT141 12V 60A |
1 | ||
| 27370-16011 |
4AGEU..AT141 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
4AGEU..AT141 12V 60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
4AGEU..AT141 12V 60A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16010 |
4AGEU..AT141 12V 60A |
1 | ||
| 27411-16011 |
4AGEU..AT141 12V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AGEU..AT141 12V 60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63021 |
4AGEU..AT141 12V 60A |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05060 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90101-10123 | ||||
| 90119-08303 | ||||
| 90179-06158 | ||||
| 90179-10067 | ||||
| 90201-10344 | ||||
| 93319-14025 | ||||
| 94511-01400 | ||||
