AT141-TSMQF (1983)
Toyota Corona
Production
Oct 1983
-
Aug 1985
Engine
4AGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8310-8508)4AGEU

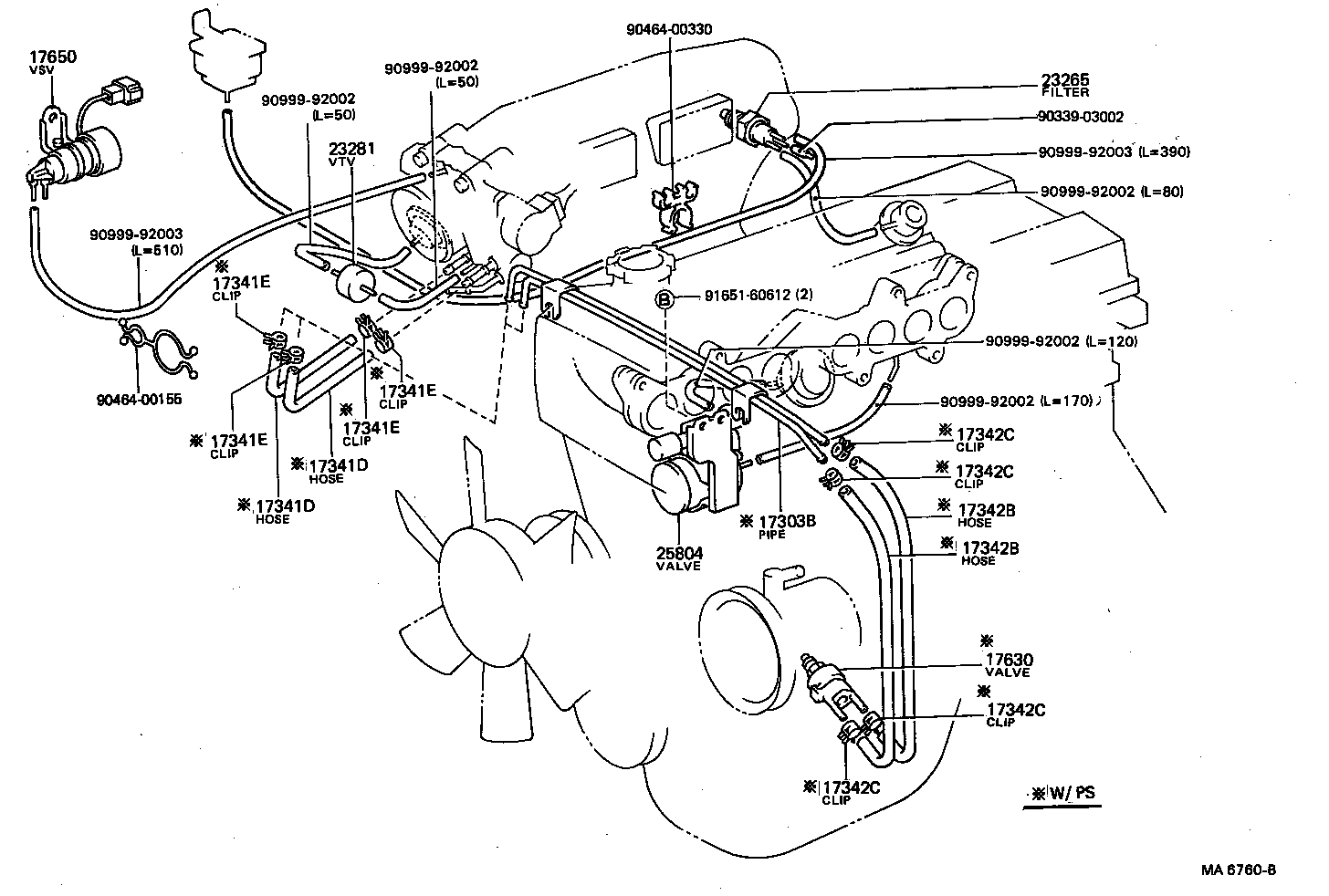

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-16020 |
4AGEU..AT141 W/PS |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-16030 |
4AGEU..AT141 W/PS |
2 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-16030 |
4AGEU..AT141 W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-16040 |
4AGEU..AT141 W/PS |
2 | ||
| 17342-16020 |
4AGEU..AT141 W/PS |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-16040 |
4AGEU..AT141 W/PS |
2 | ||
| 17342-16020 |
4AGEU..AT141 W/PS |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGEU..AT141 W/PS |
4 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-14191 |
4AGEU..AT141 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4AGEU..AT141 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-16010 |
4AGEU..AT141 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00155 | ||||
| 90464-00330 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-60612 | ||||
