AT141-TEMQF (1983)

Toyota Corona

Production Oct 1983 - Aug 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)AT141,RT141,TT142

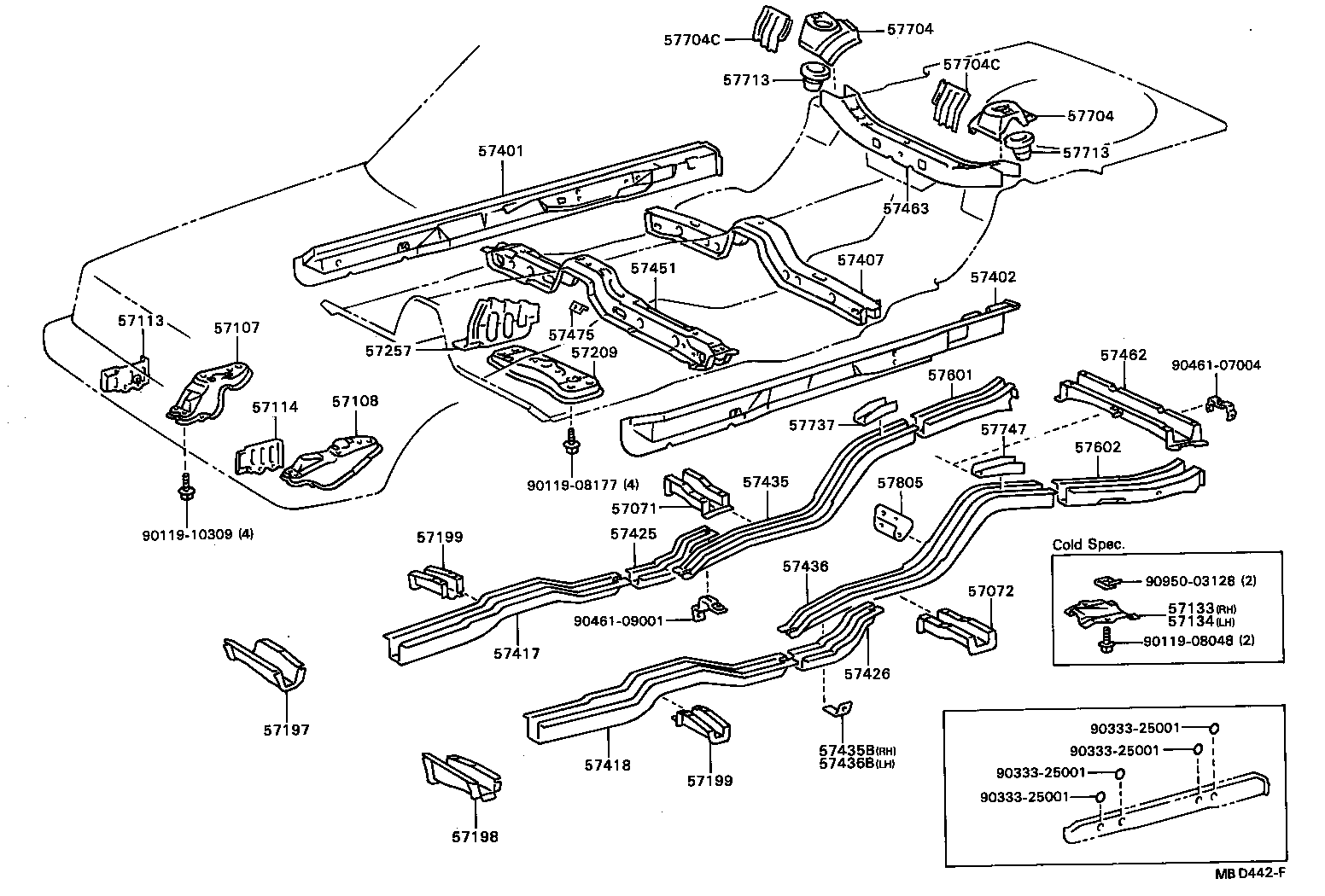

Click highlighted areas on diagram

diagram 57071 57072 57107 57108 57113 57114 57133 57134 57197 57198 57199 57199 57209 57257 57401 57402 57407 57417 57418 57425 57426 57435 57435B 57436 57436B 57451 57462 57463 57475 57601 57602 57704 57704 57704C 57704C 57713 57713 57737 57747 57805 9011908048 9011908177 9011910309 9033325001 9033325001 9033325001 9033325001 9046107004 9046109001 9095003128
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-14030

AT141,RT141,TT142

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-14030

AT141,RT141,TT142

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14080

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14080

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14070

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-14030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V

 1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-14030

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

COLD SPEC

 1
57134 - PROTECTOR, STRUT BAR BRACKET, LH
57134-14020

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

COLD SPEC

 1
57197 - BOX, TORQUE, FRONT RH
57197-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57198 - BOX, TORQUE, FRONT LH
57198-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14290

AT141

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57257-14050

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

RH

 1
57258-24010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

LH

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-14190

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-14190

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-14010

AT14#,CT140,RT141,ST140,TT142

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-24010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-24010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-24010

AT14#,CT140,RT141,ST140,TT142

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-24010

AT14#,CT140,RT141,ST140,TT142

 1
57435 - MEMBER, CENTER FLOOR SIDE, RH
57435-24010

AT141,RT141,TT142

 1
57435B - BRACKET, FLOOR BRAKE HOSE, REAR RH
58289-14020

AT141,RT141,TT142

 1
57436 - MEMBER, CENTER FLOOR SIDE, LH
57436-14020

AT141,RT141,TT142

 1
57436B - BRACKET, FLOOR BRAKE HOSE, REAR, LH
58299-14010

AT141,RT141,TT142

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-24010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
57462 - MEMBER, CENTER FLOOR CROSS, NO.2
57405-14100

AT141,RT141,TT142

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-24010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 4
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-14130

AT141,RT141,TT142..SED

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-14120

AT141,RT141,TT142..SED

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57724-14020

AT141,RT141,TT142

LH

 1
57723-14030

AT141,RT141,TT142

RH

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57724-14020

AT141,RT141,TT142

LH

 1
57723-14030

AT141,RT141,TT142

RH

 1
57704C - EXTENSION, CENTER FLOOR TO PACKAGE TRAY
64217-14040

AT141,RT141,TT142..SED

RH

 1
64218-14030

AT141,RT141,TT142..SED

LH

 1
57704C - EXTENSION, CENTER FLOOR TO PACKAGE TRAY
64217-14040

AT141,RT141,TT142..SED

RH

 1
64218-14030

AT141,RT141,TT142..SED

LH

 1
57713 - BRACKET, REAR SPRING BUMPER SUPPORT
57714-14010

AT141,RT141,TT142

LH

 1
57713-14020

AT141,RT141,TT142

RH

 1
57713 - BRACKET, REAR SPRING BUMPER SUPPORT
57714-14010

AT141,RT141,TT142

LH

 1
57713-14020

AT141,RT141,TT142

RH

 1
57737 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH
57737-24010

AT141,RT141,TT142

 1
57747 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH
57747-24010

AT141,RT141,TT142

 1
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57806-14030

AT141,RT141,TT142..SED

LH

 1
57805-14030

AT141,RT141,TT142..SED

RH

 1
Common parts
90119-08048
90119-08177
90119-10309
90333-25001
90461-07004
90461-09001
90950-03128
