AT140-TEMNS (1982)
Toyota Corona

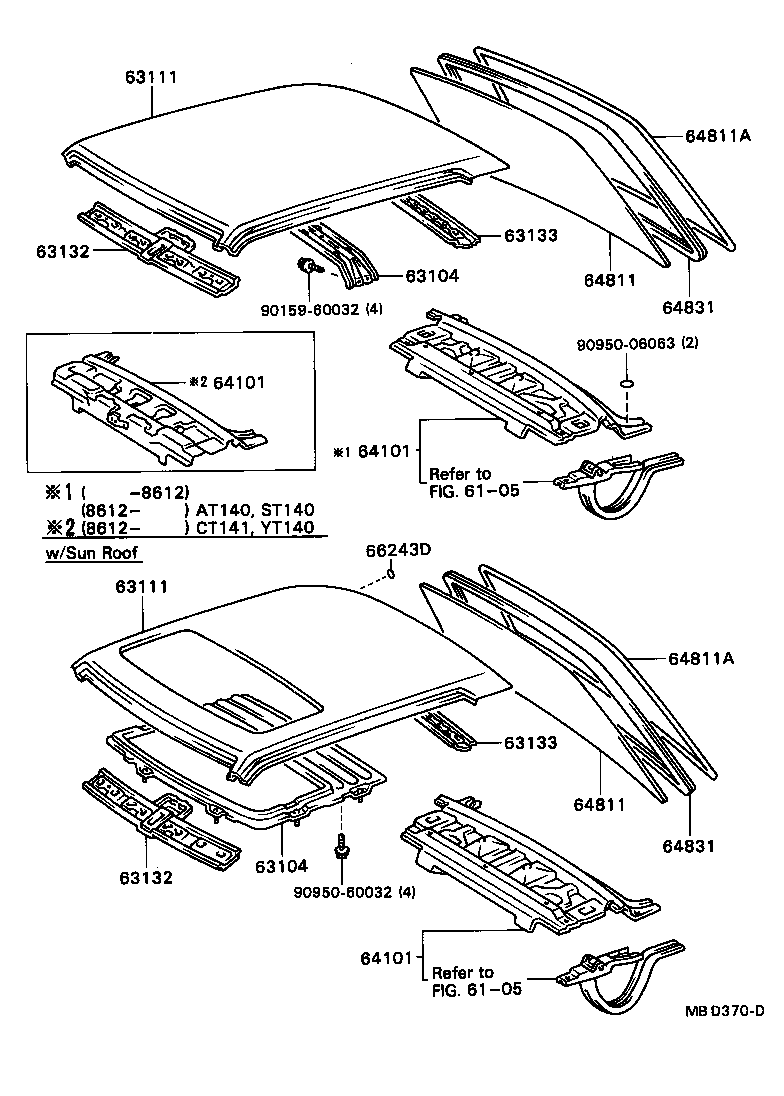

ILLUST NO. 1 OF 2(8201- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-20030 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-20030 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20120 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20120 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-14030 |
CT140..GX;AT14#,RT141,ST140,TT142..SED..(DLX,GT,GTT,GX,STD,SX) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-14030 |
CT140..GX;AT14#,RT141,ST140,TT142..SED..(DLX,GT,GTT,GX,STD,SX) |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-20080 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-20080 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20160 |
AT14#,CT140,RT141,ST140,TT142..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20160 |
AT14#,CT140,RT141,ST140,TT142..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20160 |
AT14#,CT140,RT141,ST140,TT142..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-20010 |
AT140,CT140,ST140,YT140..SED..(DLX,GX,GXA,STD) *EHTT,厚さ=3.5,*EHTT,T=3.5 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-20010 |
AT140,CT140,ST140,YT140..SED..(DLX,GX,GXA,STD) *EHTT,厚さ=3.5,*EHTT,T=3.5 |
1 | ||
| 64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP | ||||
| 64814-14020 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP | ||||
| 64814-14020 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-20010 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX) |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-20010 |
AT14#,CT140,RT141,ST140,TT142,YT140..SED..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX) |
1 | ||
| Common parts | ||||
| 90159-60032 | ||||
| 90950-06063 | ||||
| 90950-60032 | ||||
| Linked diagrams | ||||
| 6105 | ||||

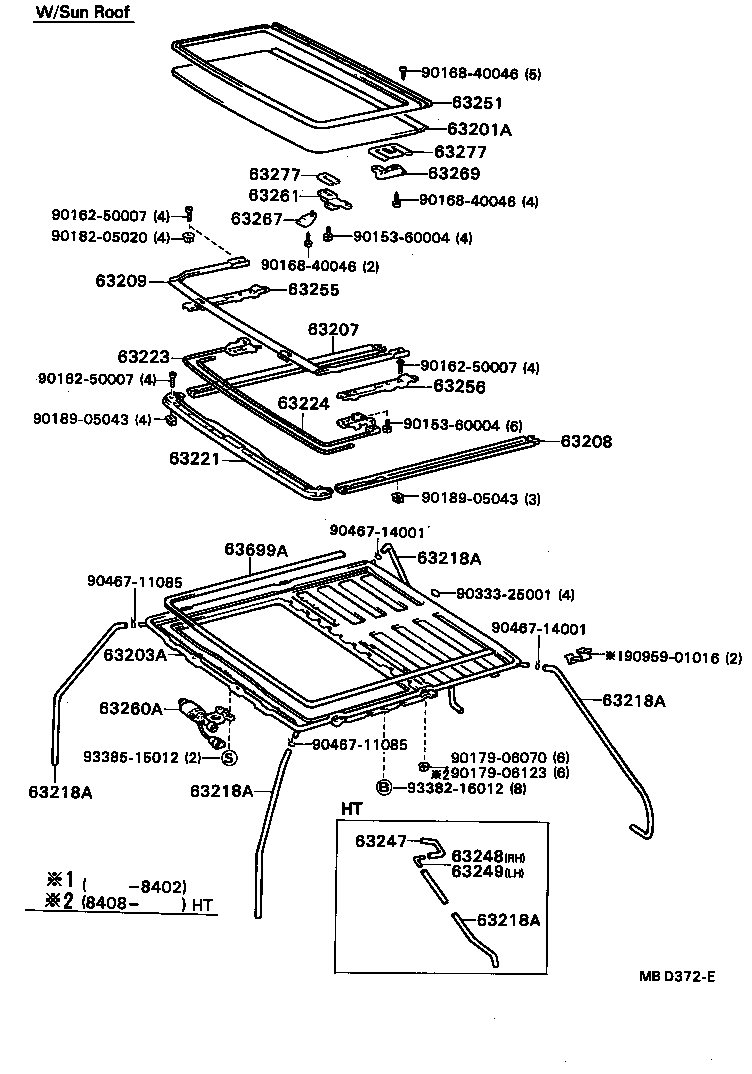

ILLUST NO. 2 OF 2(8201-8508)AT14#,CT140,RT141,ST140,TT142,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90153-60004 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90179-06070 | ||||
| 90179-06123 | ||||
| 90182-05020 | ||||
| 90189-05043 | ||||
| 90333-25001 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 90959-01016 | ||||
| 93382-16012 | ||||
| 93385-15012 | ||||
