AT140-TEMNS (1982)
Toyota Corona
Production
Jan 1982
-
Oct 1983
Engine
3AU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8712)3AU

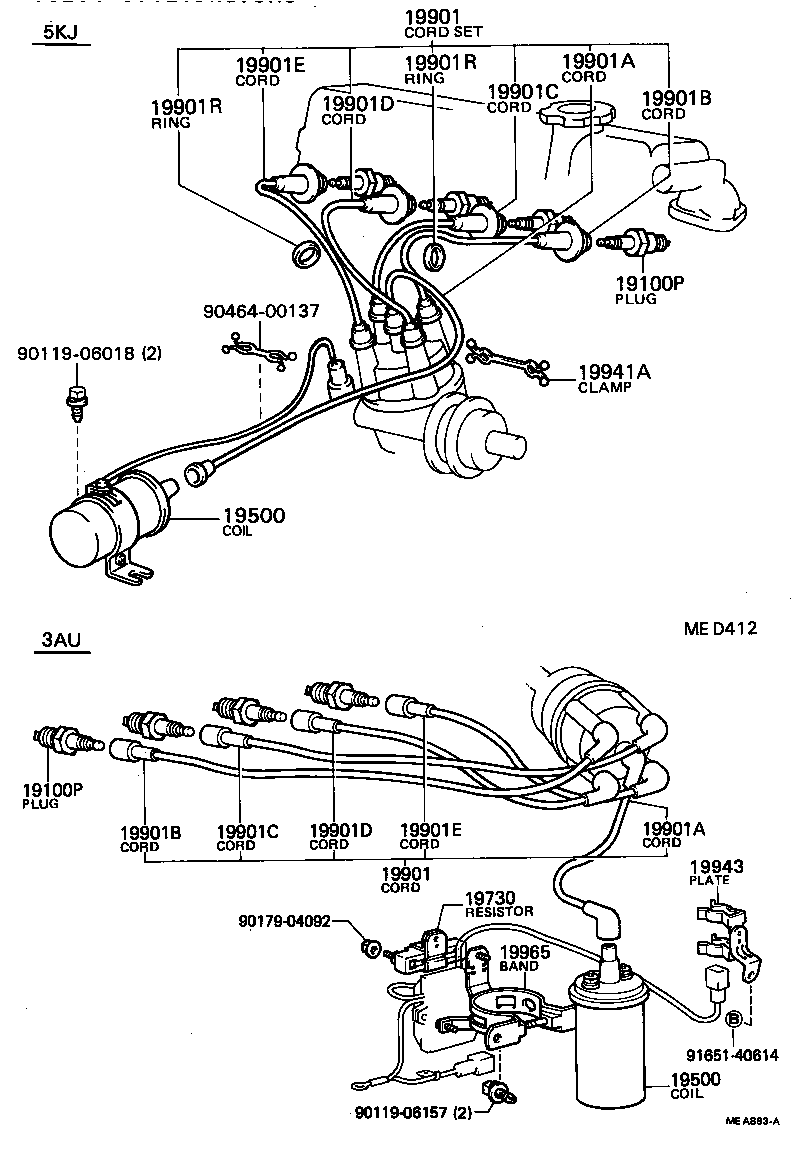

Click highlighted areas on diagram
MED412,MEA883A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01085 |
3AU..AT140 W14EX−U11,W14EX-U 11 |
4 | ||
| 90919-01085 |
3AU..AT140 W14EX−U11,W14EX-U 11 |
4 | ||
| 19100P - PLUG, SPARK | ||||
| 90919-01085 |
3AU..AT140 W14EX−U11,W14EX-U 11 |
4 | ||
| 90919-01085 |
3AU..AT140 W14EX−U11,W14EX-U 11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02083 |
3AU..AT140 |
1 | ||
| 90919-02083 |
3AU..AT140 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02083 |
3AU..AT140 |
1 | ||
| 90919-02083 |
3AU..AT140 |
1 | ||
| 19730 - RESISTOR, IGNITION COIL | ||||
| 90919-04030 |
3AU..AT140 |
1 | ||
| 90919-04030 |
3AU..AT140 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21284 |
3AU..AT140 |
1 | ||
| 90919-21284 |
3AU..AT140 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21284 |
3AU..AT140 |
1 | ||
| 90919-21284 |
3AU..AT140 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13131 |
3AU..AT140 |
1 | ||
| 90919-13131 |
3AU..AT140 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13131 |
3AU..AT140 |
1 | ||
| 90919-13131 |
3AU..AT140 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12356 |
3AU..AT140 |
1 | ||
| 90919-12356 |
3AU..AT140 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12356 |
3AU..AT140 |
1 | ||
| 90919-12356 |
3AU..AT140 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12357 |
3AU..AT140 |
1 | ||
| 90919-12357 |
3AU..AT140 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12357 |
3AU..AT140 |
1 | ||
| 90919-12357 |
3AU..AT140 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12358 |
3AU..AT140 |
1 | ||
| 90919-12358 |
3AU..AT140 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12358 |
3AU..AT140 |
1 | ||
| 90919-12358 |
3AU..AT140 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12359 |
3AU..AT140 |
1 | ||
| 90919-12359 |
3AU..AT140 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12359 |
3AU..AT140 |
1 | ||
| 90919-12359 |
3AU..AT140 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-15011 |
3AU..AT140 |
1 | ||
| 19943-15011 |
3AU..AT140 |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03077 |
3AU..AT140 |
1 | ||
| 90919-03077 |
3AU..AT140 |
1 | ||
| Common parts | ||||
| 90119-06018 | ||||
| 90119-06157 | ||||
| 90179-04092 | ||||
| 90464-00137 | ||||
| 91651-40614 | ||||
