AT140-TEKRS (1982)
Toyota Corona

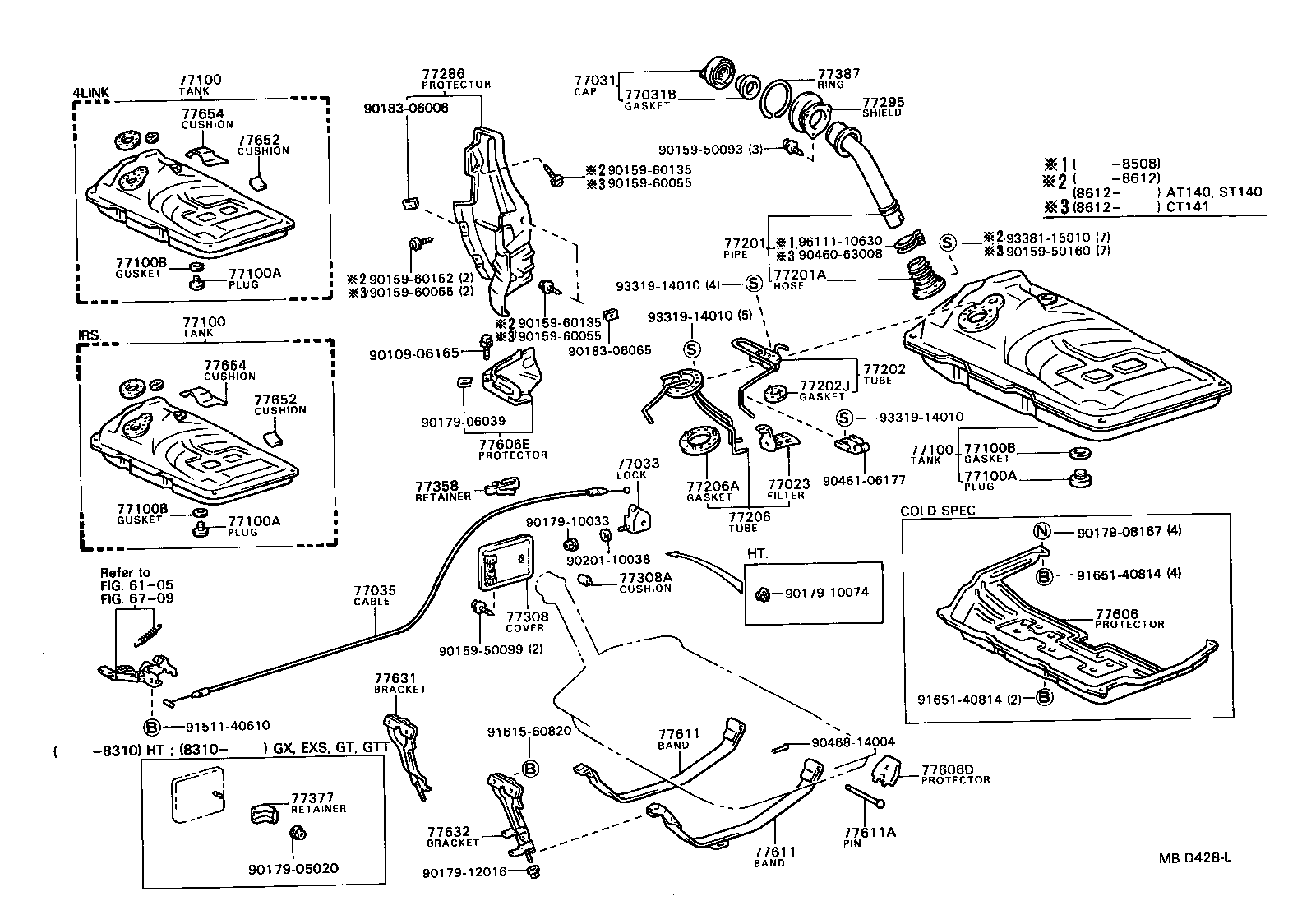

ILLUST NO. 1 OF 2(8201- )AT14#,CT140,141,RT141,ST140,TT142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AT140,KT147,ST140,TT147 |
1 | ||
| 77023-14030 |
AT140,ST140 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AT14#,KT147,RT141,ST140,TT14# |
1 | ||
| 77310-12100 |
AT140,CT14#,RT141,ST140,TT14# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AT14#,CT14#,KT147,RT141,ST140,TT14# |
1 | ||
| 77316-12050 |
AT140,CT147,KT147,ST140 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19095 |
AT140,ST140 |
1 | ||
| 77001-19096 |
AT140,ST140 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19095 |
AT140,ST140 |
1 | ||
| 77001-19096 |
AT140,ST140 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19095 |
AT140,ST140 |
1 | ||
| 77001-19096 |
AT140,ST140 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
AT140,CT140,RT141,ST140,TT142 OD=24 |
1 | ||
| 90341-20004 |
AT14#,CT140,ST140,TT142 OD=20 |
1 | ||
| 90341-20003 |
AT14#,CT140,RT141,ST140,TT142 OD=20 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
AT140,CT140,RT141,ST140,TT142 OD=24 |
1 | ||
| 90341-20004 |
AT14#,CT140,ST140,TT142 OD=20 |
1 | ||
| 90341-20003 |
AT14#,CT140,RT141,ST140,TT142 OD=20 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
AT140,CT140,RT141,ST140,TT142 OD=24 |
1 | ||
| 90341-20004 |
AT14#,CT140,ST140,TT142 OD=20 |
1 | ||
| 90341-20003 |
AT14#,CT140,RT141,ST140,TT142 OD=20 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT14#,CT140,ST140,TT142 ID=20.3 |
1 | ||
| 90430-24047 |
AT140,CT140,RT141,ST140,TT142 ID=24 |
1 | ||
| 90430-20006 |
AT14#,CT140,RT141,ST140,TT142 ID=20.3 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT14#,CT140,ST140,TT142 ID=20.3 |
1 | ||
| 90430-24047 |
AT140,CT140,RT141,ST140,TT142 ID=24 |
1 | ||
| 90430-20006 |
AT14#,CT140,RT141,ST140,TT142 ID=20.3 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT14#,CT140,ST140,TT142 ID=20.3 |
1 | ||
| 90430-24047 |
AT140,CT140,RT141,ST140,TT142 ID=24 |
1 | ||
| 90430-20006 |
AT14#,CT140,RT141,ST140,TT142 ID=20.3 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14200 |
AT140,CT140,ST140 |
1 | ||
| 77201-14200 |
AT140,ST140 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-14090 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77012-14023 |
AT140,CT140,ST140 |
1 | ||
| 77012-14022 |
AT140,CT140,ST140 |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14030 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-14041 |
AT140,ST140 |
1 | ||
| 77203-14100 |
AT140,ST140 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
AT140,CT140,ST140 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-20050 |
AT140,CT140,ST140..SED |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77034-14010 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-14040 |
AT140,CT140,RT141,ST140,TT142..SED |
1 | ||
| 77350-14040 |
AT140,CT140..DLX,STD |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05009 |
AT14#,CT140,RT141,ST140,TT142..SED |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77360-24010 |
AT14#,CT14#,RT141,ST140,TT14# |
1 | ||
| 77360-24010 |
AT140,CT147,ST140 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-14040 |
AT14#,CT140,RT141,ST140,TT142 COLD SPEC |
1 | ||
| 77606D - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-14030 |
AT140,CT140,ST140 |
1 | ||
| 77606E - PROTECTOR, FUEL TANK, NO.4 | ||||
| 77641-14080 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14040 |
AT140,CT140,RT141,ST140,TT142 |
2 | ||
| 77601-14050 |
AT14#,CT140,RT141,ST140,TT142 COLD SPEC |
2 | ||
| 77601-14060 |
AT14#,CT140,ST140,TT142 |
2 | ||
| 77601-14050 |
AT140,CT140,ST140 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14040 |
AT140,CT140,RT141,ST140,TT142 |
2 | ||
| 77601-14050 |
AT14#,CT140,RT141,ST140,TT142 COLD SPEC |
2 | ||
| 77601-14060 |
AT14#,CT140,ST140,TT142 |
2 | ||
| 77601-14050 |
AT140,CT140,ST140 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AT14#,CT140,RT141,ST140,TT142 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77613-14022 |
AT140,CT140,ST140 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77614-14021 |
AT140,CT140,ST140 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-14080 |
AT14#,CT140,RT141,ST140,TT142 |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-14080 |
AT14#,CT140,RT141,ST140,TT142 |
6 | ||
| Common parts | ||||
| 90109-06165 | ||||
| 90159-50093 | ||||
| 90159-50099 | ||||
| 90159-50160 | ||||
| 90159-60055 | ||||
| 90159-60135 | ||||
| 90159-60152 | ||||
| 90179-05020 | ||||
| 90179-06039 | ||||
| 90179-08167 | ||||
| 90179-10033 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06006 | ||||
| 90183-06065 | ||||
| 90201-10038 | ||||
| 90460-63008 | ||||
| 90461-06177 | ||||
| 90468-14004 | ||||
| 91511-40610 | ||||
| 91615-60820 | ||||
| 91651-40814 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-10630 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 6709 | ||||
ILLUST NO. 2 OF 2(8201-8712)AT140,ST140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14180 |
AT140,ST140 |
1 | ||
| 77251-14181 |
AT140,ST140 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06014 |
AT140,ST140 *H,L=140 |
1 | ||
| 95332-06020 |
AT140,ST140,TT147 *H,L=140 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
AT140,ST140 *H,L=300 |
1 | ||
| 95333-06030 |
AT140,ST140 *H,L=300 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-14111 |
AT140,ST140 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
AT14#,ST140,TT142 *H,L=260 |
1 | ||
| 95332-06030 |
AT140,ST140,TT147 *H,L=260 |
1 | ||
| 95332-06030 |
AT140,RT141,ST140,TT14# *H,L=260 |
1 | ||
| 95332-06030 |
AT140,ST140 *H,L=260 |
1 | ||
| 95333-06030 |
AT140,ST140 *H,L=300 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06030 |
AT140,ST140 *H,L=300 |
1 | ||
| 95332-06030 |
AT140,ST140,TT147 *H,L=300 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-14171 |
AT140,ST140 |
1 | ||
| 77255-14170 |
AT140,ST140 |
1 | ||
| 77255-14172 |
AT140,ST140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15020 |
AT140 |
1 | ||
| 23271-15021 |
AT140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15020 |
AT140 |
1 | ||
| 23271-15021 |
AT140 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
AT140,ST140 *H,L=300 |
1 | ||
| 95332-06030 |
AT140,CT140,ST140 *H,L=300 |
1 | ||
| 95333-06030 |
AT140,CT140,ST140 *H,L=300 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-14230 |
AT140,ST140,TT147 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
AT140,ST140,TT147 *H,L=130,内径=7.6 |
1 | ||
| 90445-12120 |
AT140,ST140,TT147 |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
AT140 *H,L=540,ﾏｰｸ=#* |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
AT140 *H,L=540,ﾏｰｸ=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-14070 |
AT140,RT141,ST140,TT14# |
1 | ||
| 77264-14070 |
AT140,ST140,TT147 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77751-14090 |
AT140,ST140,TT147 |
1 | ||
| Common parts | ||||
| 90461-07016 | ||||
| 90461-07019 | ||||
| 90461-08517 | ||||
| 90463-06038 | ||||
| 90464-00141 | ||||
| 90467-10036 | ||||
| 90467-10043 | ||||
| 90467-12011 | ||||
| 90480-17002 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
