AT140-TEKRS (1982)

Toyota Corona

Production Jan 1982 - Dec 1987
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-9111)AT140,CT140,141,ST140

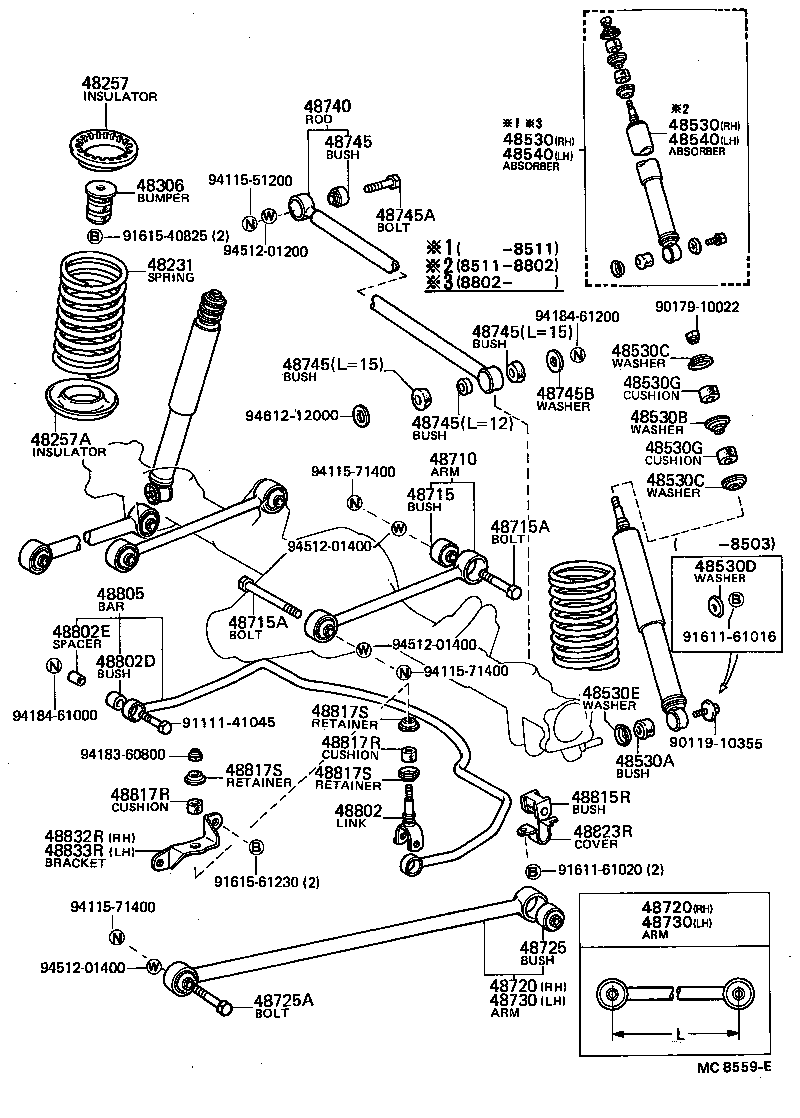

Click highlighted areas on diagram

diagram 48231 48257 48257A 48306 48530 48530 48530A 48530B 48530C 48530C 48530D 48530E 48530G 48530G 48540 48540 48710 48715 48715A 48715A 48720 48720 48725 48725A 48730 48730 48740 48745 48745 48745 48745 48745A 48745B 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48823R 48832R 48833R 9011910355 9017910022 9111141045 9161161016 9161161020 9161540825 9161561230 9411551200 9411571400 9411571400 9411571400 9418360800 9418461000 9418461200 9451201200 9451201400 9451201400 9451201400 9461212000
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-20110

CT140..GX;AT140,ST140..DLX,GX,GXA,STD

 2
48231-14500

CT140..GX;AT140,ST140..DLX,GX,GXA,STD

 2
48231-14500

AT140

 2
48231-20230

CT140..GX;AT140,ST140..DLX,GX,GXA,STD

 2
48257 - INSULATOR, REAR COIL SPRING
48257-14020

AT140,CT140,ST140

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-14030

AT140,CT140,141,ST140

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-14030

AT140,CT140,141,ST140

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80001

AT140,CT140

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80001

AT140,CT140

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02050

AT140,CT14#,RT141,ST140,TT14#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02045

AT140,CT140,141,ST140,YT140

UPR

 2
90948-02002

AT140,CT140,141,ST140,YT140

LWR

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02045

AT140,CT140,141,ST140,YT140

UPR

 2
90948-02002

AT140,CT140,141,ST140,YT140

LWR

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90540-10002

AT140,CT140,141,ST140

LWR

 2
90540-10005

AT140,CT140,141,ST140

UPR

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90540-10002

AT140,CT140,141,ST140

LWR

 2
90540-10005

AT140,CT140,141,ST140

UPR

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80001

AT140,CT140

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80001

AT140,CT140

 1
48710 - ARM ASSY, UPPER CONTROL
48710-14040

AT140,ST140;CT140..EXS,GX

 2
48715 - BUSH, UPPER CONTROL ARM
48702-22060

AT140,ST140;CT140..EXS,GX

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-14006

AT140,CT140,141,ST140

L=77

 2
90105-14009

AT140,CT140,141,ST140

L=141

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-14006

AT140,CT140,141,ST140

L=77

 2
90105-14009

AT140,CT140,141,ST140

L=141

 2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-14050

AT140,CT140,ST140

L=470

 1
48720-14040

AT140,ST140;CT140..EXS,GX

L=475

 1
48720 - ARM ASSY, LOWER CONTROL, RH
48720-14050

AT140,CT140,ST140

L=470

 1
48720-14040

AT140,ST140;CT140..EXS,GX

L=475

 1
48725 - BUSH, LOWER CONTROL ARM
48702-14020

AT140,ST140;CT140..EXS,GX

ARM L=475

 4
48702-14020

AT140,CT140,ST140

ARM L=470

 4
48725A - BOLT(FOR LOWER CONTROL ARM)
90105-14006

AT140,CT140,141,ST140

 4
48730 - ARM ASSY, LOWER CONTROL, LH
48720-14040

AT140,ST140;CT140..EXS,GX

L=475

 1
48720-14050

AT140,CT140,ST140

L=470

 1
48730 - ARM ASSY, LOWER CONTROL, LH
48720-14040

AT140,ST140;CT140..EXS,GX

L=475

 1
48720-14050

AT140,CT140,ST140

L=470

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-20030

AT140,CT140,141,ST140..SED

 1
48745 - BUSH, LATERAL CONTROL ROD
90386-20001

AT140,CT140,141,ST140

L=12,HOUSING SIDE

 1
90385-20001

AT140,CT140,141,ST140

L=15,HOUSING SIDE

 2
48706-14010

AT140,CT140,141,ST140

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90386-20001

AT140,CT140,141,ST140

L=12,HOUSING SIDE

 1
90385-20001

AT140,CT140,141,ST140

L=15,HOUSING SIDE

 2
48706-14010

AT140,CT140,141,ST140

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90386-20001

AT140,CT140,141,ST140

L=12,HOUSING SIDE

 1
90385-20001

AT140,CT140,141,ST140

L=15,HOUSING SIDE

 2
48706-14010

AT140,CT140,141,ST140

BODY SIDE

 1
48745 - BUSH, LATERAL CONTROL ROD
90386-20001

AT140,CT140,141,ST140

L=12,HOUSING SIDE

 1
90385-20001

AT140,CT140,141,ST140

L=15,HOUSING SIDE

 2
48706-14010

AT140,CT140,141,ST140

BODY SIDE

 1
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90106-12002

AT140,CT140,141,ST140

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12010

AT140,CT140,141,ST140

 1
Common parts
90119-10355
90179-10022
91111-41045
91611-61016
91611-61020
91615-40825
91615-61230
94115-51200
94115-71400
94183-60800
94184-61000
94184-61200
94512-01200
94512-01400
94612-12000
