AT140-TEKNS (1982)

Toyota Corona

Production Jan 1982 - Dec 1987
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-9111)AT140,CT14#,ST140..MTM

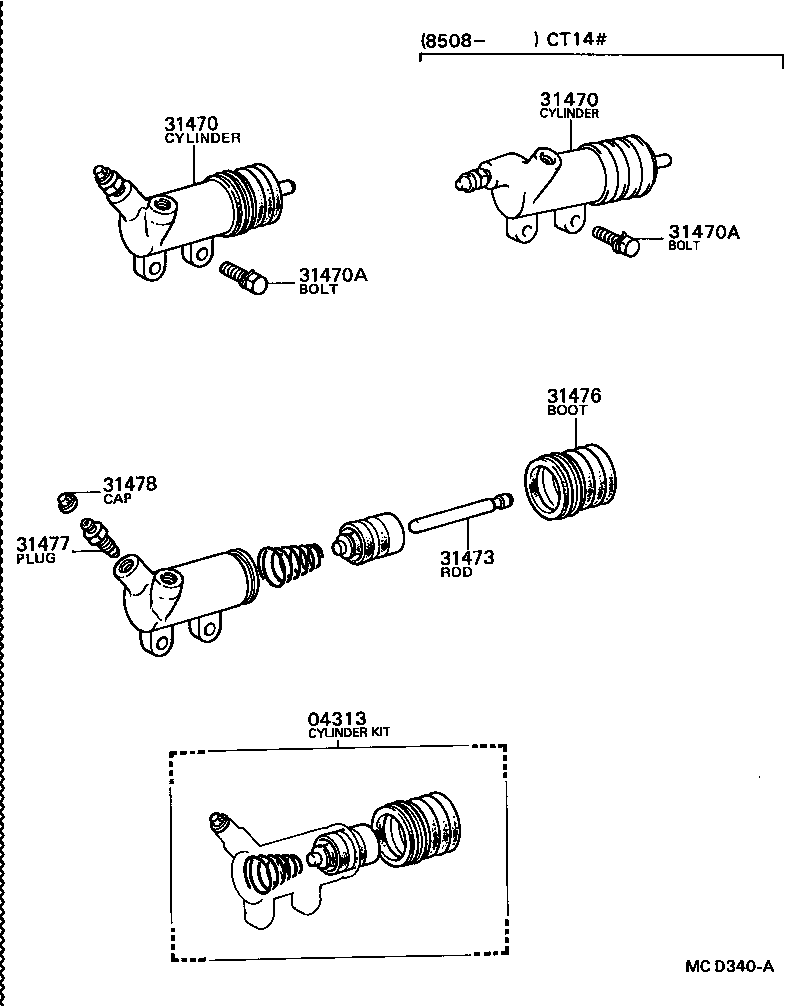

Click highlighted areas on diagram

diagram 04313 31470 31470 31470A 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22020

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14040

AT140,CT14#,ST140..MTM

 1
31470-14040

AT140,ST140..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14040

AT140,CT14#,ST140..MTM

 1
31470-14040

AT140,ST140..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

*8−1.25PX25−25

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

*8−1.25PX25−25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-20031

AT140,KT147,ST140..MTM

 1
31473-20031

AT14#,CT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
