AT140-TEKNS (1982)

Toyota Corona

Production Jan 1982 - Dec 1987
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)3AU

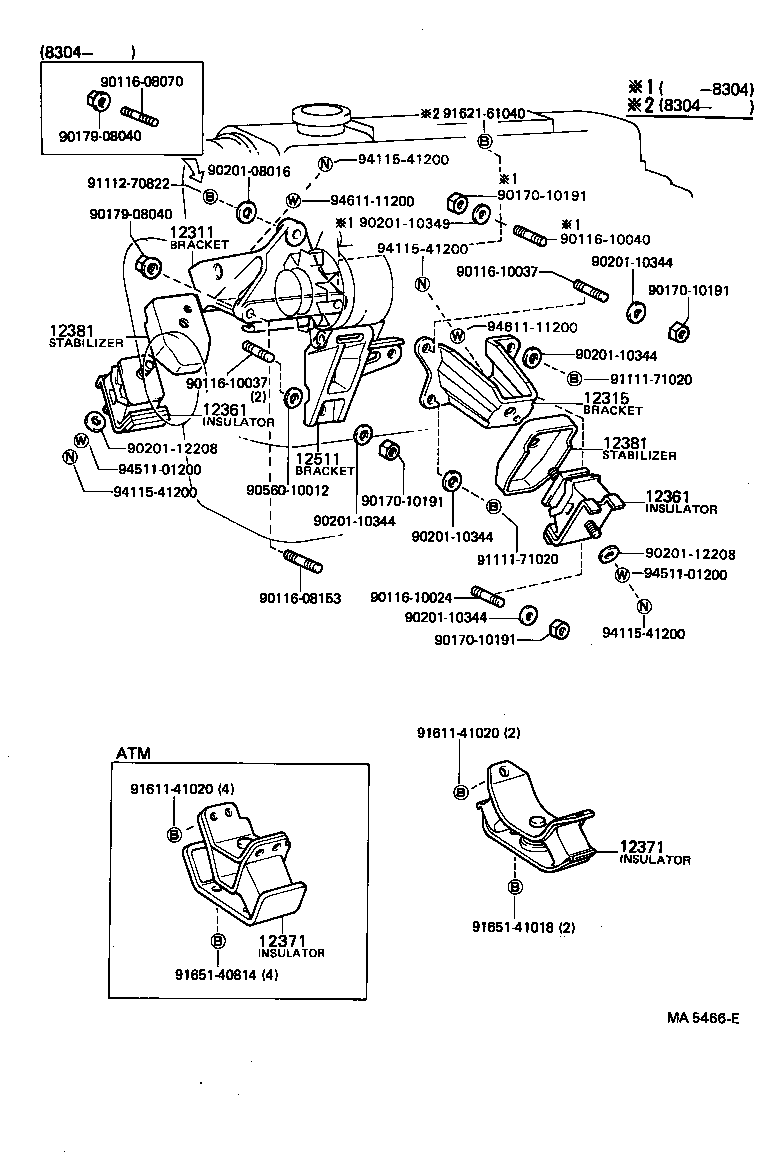

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12511 9011608070 9011608153 9011610024 9011610037 9011610037 9011610040 9017010191 9017010191 9017010191 9017010191 9017908040 9017908040 9020108016 9020110344 9020110344 9020110344 9020110344 9020110344 9020110349 9020112208 9020112208 9056010012 9111171020 9111171020 9111270822 9161141020 9161141020 9162161040 9165140814 9165141018 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9461111200 9461111200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-15070

3AU..AT140

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-15040

3AU..AT140

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15080

3AU..AT140

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15080

3AU..AT140

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

3AU..AT140..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

3AU..AT140..MTM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-15030

3AU..AT140

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-15030

3AU..AT140

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-15011

3AU..AT140

 1
Common parts
90116-08070
90116-08153
90116-10024
90116-10037
90116-10040
90170-10191
90179-08040
90201-08016
90201-10344
90201-10349
90201-12208
90560-10012
91111-71020
91112-70822
91611-41020
91621-61040
91651-40814
91651-41018
94115-41200
94511-01200
94611-11200
