AT140-TEKDS (1982)

Toyota Corona

Production Jan 1982 - Dec 1987
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

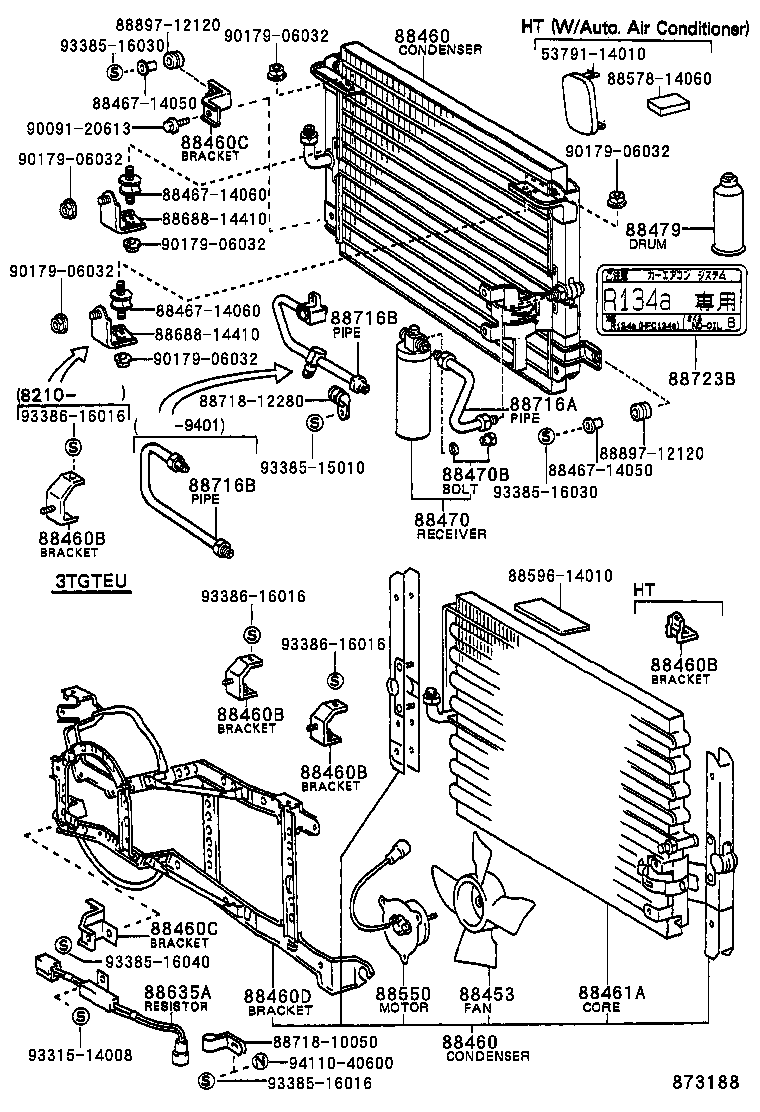

Click highlighted areas on diagram

diagram 5379114010 88453 88460 88460 88460B 88460B 88460B 88460B 88460C 88460C 88460D 88461A 8846714050 8846714050 8846714060 8846714060 88470 88470B 88479 88550 8857814060 8859614010 88635A 8868814410 8868814410 88716A 88716B 88716B 8871810050 8871812280 88723B 8889712120 8889712120 9009120613 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9331514008 9338515010 9338516016 9338516030 9338516030 9338516040 9338616016 9338616016 9338616016 9411040600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14210

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88460 - CONDENSER ASSY, COOLER
88460-14210

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-14400

AT140,CT14#,RT141,ST140,TT14#,YT140

LH

 1
88688-14410

AT140,CT14#,RT141,ST140,TT14#,YT140

RH

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-14400

AT140,CT14#,RT141,ST140,TT14#,YT140

LH

 1
88688-14410

AT140,CT14#,RT141,ST140,TT14#,YT140

RH

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-14400

AT140,CT14#,RT141,ST140,TT14#,YT140

LH

 1
88688-14410

AT140,CT14#,RT141,ST140,TT14#,YT140

RH

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-14400

AT140,CT14#,RT141,ST140,TT14#,YT140

LH

 1
88688-14410

AT140,CT14#,RT141,ST140,TT14#,YT140

RH

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-14430

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-14430

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12050

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
88470B - BOLT, FUSE
88475-12020

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14860

AT14#,CT14#,KT147

 1
88716-14740

AT140,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-14860

AT14#,CT14#,KT147

 1
88716-14740

AT140,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
Common parts
53791-14010
88467-14050
88467-14060
88578-14060
88596-14010
88688-14410
88718-10050
88718-12280
88897-12120
90091-20613
90179-06032
93315-14008
93385-15010
93385-16016
93385-16030
93385-16040
93386-16016
94110-40600

(8201-8712)AT14#

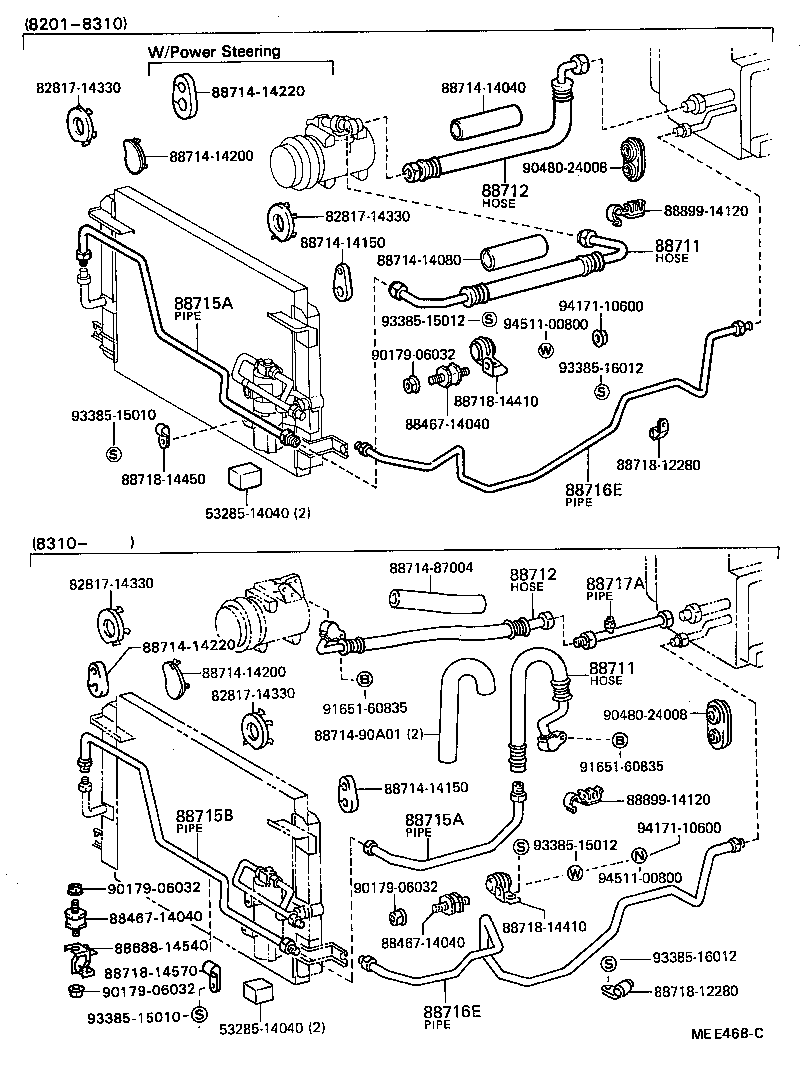

Click highlighted areas on diagram

diagram 5328514040 5328514040 8281714330 8281714330 8281714330 8281714330 8846714040 8846714040 8846714040 8868814540 88711 88711 88712 88712 8871414040 8871414080 8871414150 8871414150 8871414200 8871414200 8871414220 8871414220 8871487004 8871490A01 88715A 88715A 88715B 88716E 88716E 88717A 8871812280 8871812280 8871814410 8871814410 8871814450 8871814570 8889914120 8889914120 9017906032 9017906032 9017906032 9017906032 9048024008 9048024008 9165160835 9165160835 9338515010 9338515010 9338515012 9338515012 9338516012 9338516012 9417110600 9417110600 9451100800 9451100800
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14490

AT140

 1
88711-12280

AT140

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14490

AT140

 1
88711-12280

AT140

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14790

AT140

 1
88712-14900

AT140

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14790

AT140

 1
88712-14900

AT140

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14160

AT14#

 1
88715-14140

AT140,CT14#,RT141,ST140

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-14160

AT14#

 1
88715-14140

AT140,CT14#,RT141,ST140

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-14170

AT14#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88716-14760

AT140,CT147,KT147,ST140

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
88716-14760

AT140,CT147,KT147,ST140

 1
Common parts
53285-14040
82817-14330
88467-14040
88688-14540
88714-14040
88714-14080
88714-14150
88714-14200
88714-14220
88714-87004
88714-90A01
88718-12280
88718-14410
88718-14450
88718-14570
88899-14120
90179-06032
90480-24008
91651-60835
93385-15010
93385-15012
93385-16012
94171-10600
94511-00800
