ZWE213H-BHXNB (2020)

Toyota Corolla Sport

Production Jun 2020 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

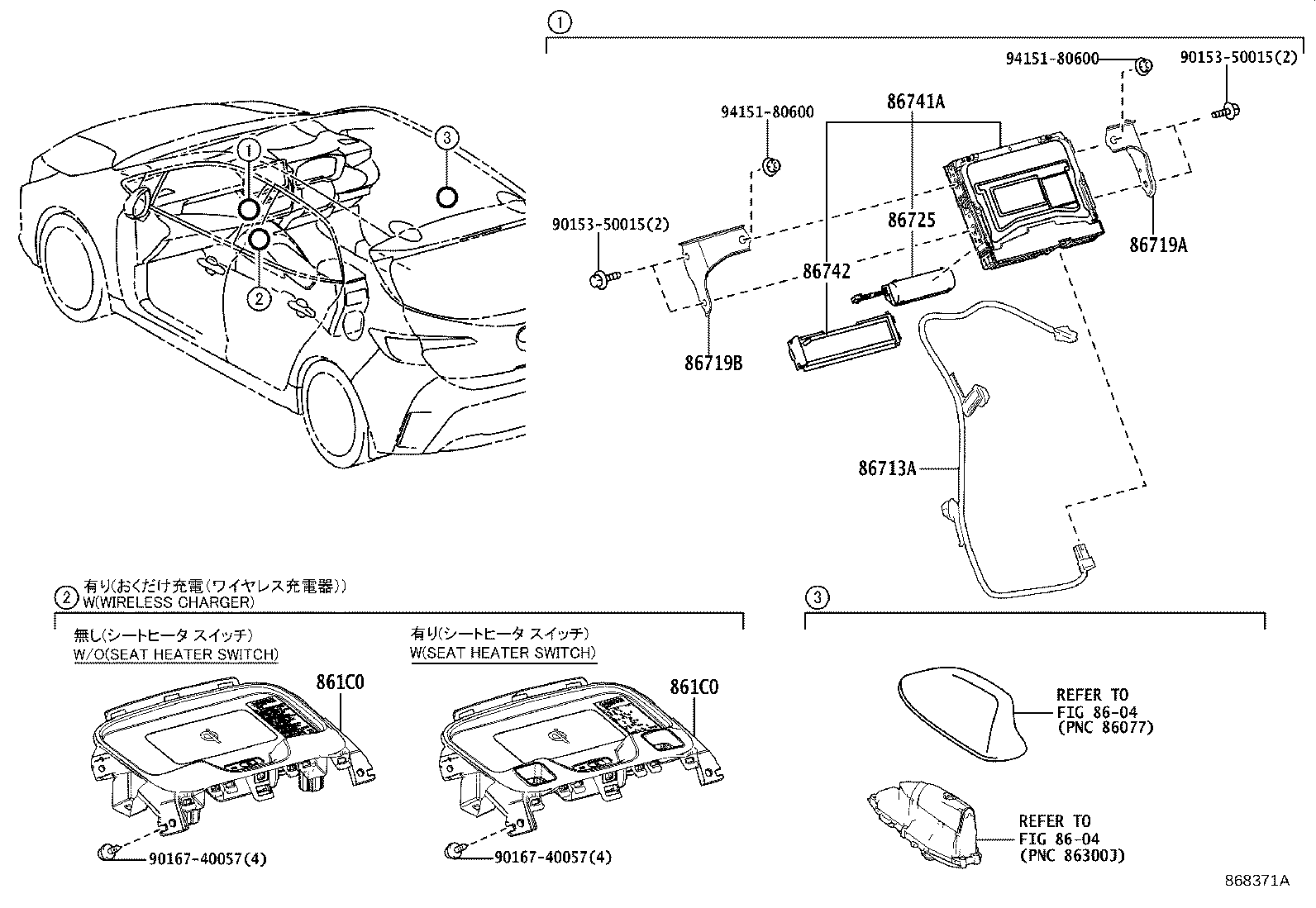

Click highlighted areas on diagram

diagram 8604 8604 861C0 861C0 86713A 86719A 86719B 86725 86741A 86742 9015350015 9015350015 9016740057 9016740057 9415180600 9415180600
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-12011

NRE21#,ZWE213

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-12011

NRE21#,ZWE213

おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り

 1
86741A - TRANSCEIVER, TELEMATICS
86741-11041

NRE21#,ZWE213

 1
Common parts
90153-50015
90167-40057
94151-80600
Linked diagrams
8604
