ZWE213H-BHXNB (2020)

Toyota Corolla Sport

Production Jun 2020 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

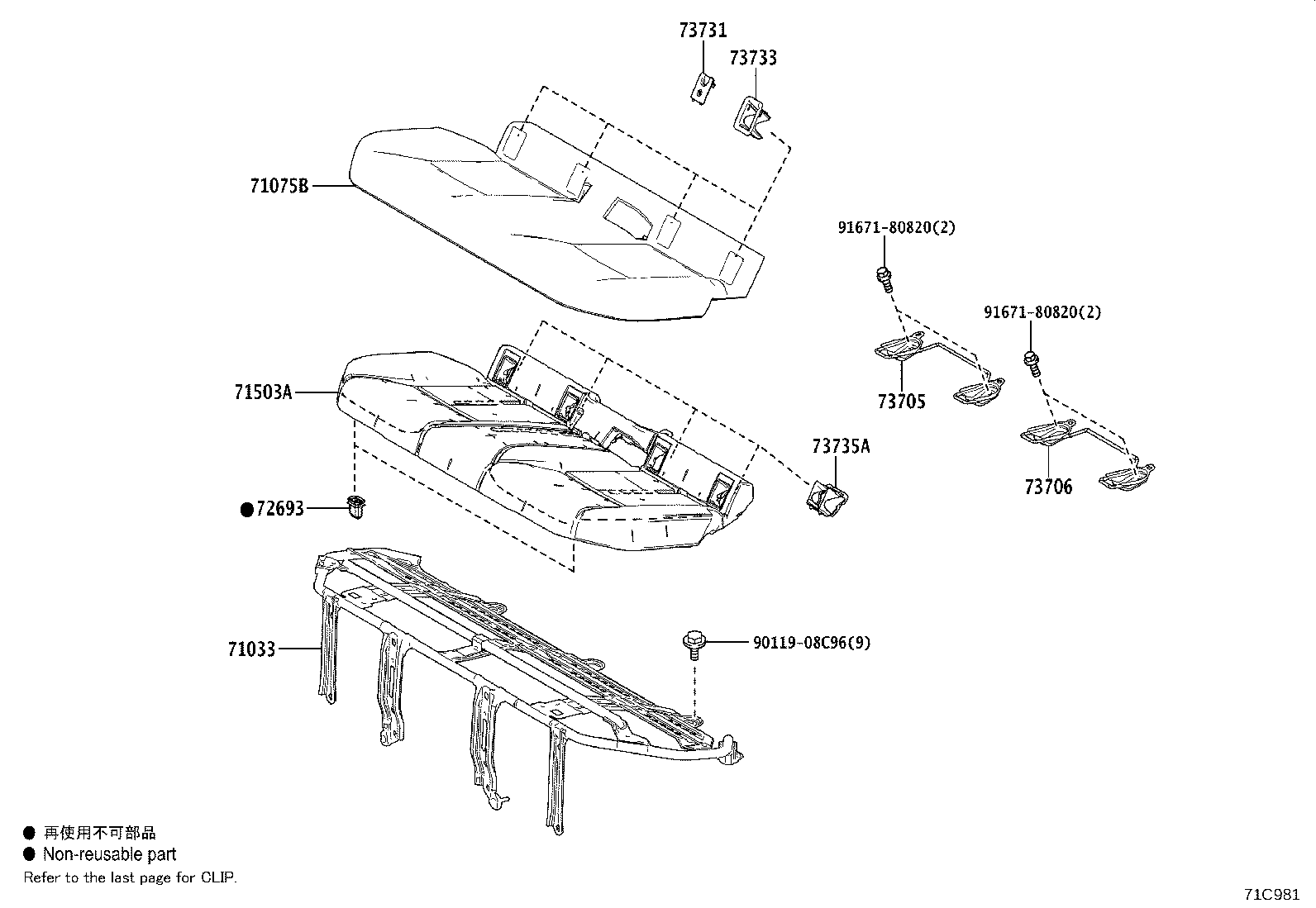

ILLUST NO. 2 OF 3(2006- )ZWE213

Click highlighted areas on diagram

ｼｰﾄｸｯｼｮﾝ

diagram 71033 71075B 71503A 72693 73705 73706 73731 73733 73735A 9011908C96 9167180820 9167180820
Part # Description Qty Price
71033 - LEG SUB-ASSY, REAR SEAT CUSHION
71033-47060

ZWE213

 1
71033-47020

ZWE213

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-12Y80C0

ZWE213

Zﾊﾟｯｹｰｼﾞ*(Z)&ｼｰﾄﾋｰﾀ−有り,BLACK / GRAY DOT,TRIM2#

 1
71075-12Y60E0

ZWE213

ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ&ｼｰﾄﾋｰﾀ−有り,SADDLE TAN,TRIM4#

 1
71075-12Y70C0

ZWE213

BLACK / GRAY DOT,TRIM2#

 1
71075-12Y90C0

ZWE213

Zﾊﾟｯｹｰｼﾞ*(Z)&ｼｰﾄ表皮−本革&ｳﾙﾄﾗｽｴｰﾄﾞ&ｼｰﾄﾋｰﾀ−有り,BLACK,TRIM2#

 1
71075-12Y90C1

ZWE213

Zﾊﾟｯｹｰｼﾞ*(Z)&ｼｰﾄ表皮−本革&ｳﾙﾄﾗｽｴｰﾄﾞ&ｼｰﾄﾋｰﾀ−有り,BLACK/SENSUAL RED,TRIM3#

 1
71075-12Z30C0

ZWE213

“Style Package”*(F)&ｼｰﾄ表皮−本革(ﾌﾞﾗｯｸ)&ｼｰﾄﾋｰﾀ−有り,BLACK WITH BEIGE ACCENT,TRIM2#

 1
71075-12Z30C0

ZWE213

“Style Package”*(F)&ｼｰﾄ表皮−本革(ﾌﾞﾗｯｸ),BLACK WITH BEIGE ACCENT,TRIM2#

 1
71503A - PAD SUB-ASSY, REAR SEAT CUSHION
71503-12440

ZWE213

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

NRE21#,ZWE21#

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-12170

NRE21#,ZWE21#

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73705-12180

NRE21#,ZWE21#

 1
73731 - COVER, CHILD RESTRAINT SEAT
73731-47022C1

NRE21#,ZWE21#

BLACK,TRIM2#

 4
73733 - COVER, CHILD RESTRAINT SEAT BASE
73733-47011C1

NRE21#,ZWE21#

BLACK,TRIM2#

 4
Common parts
90119-08C96
91671-80820
