ZWE213H-BHXNB (2020)
Toyota Corolla Sport

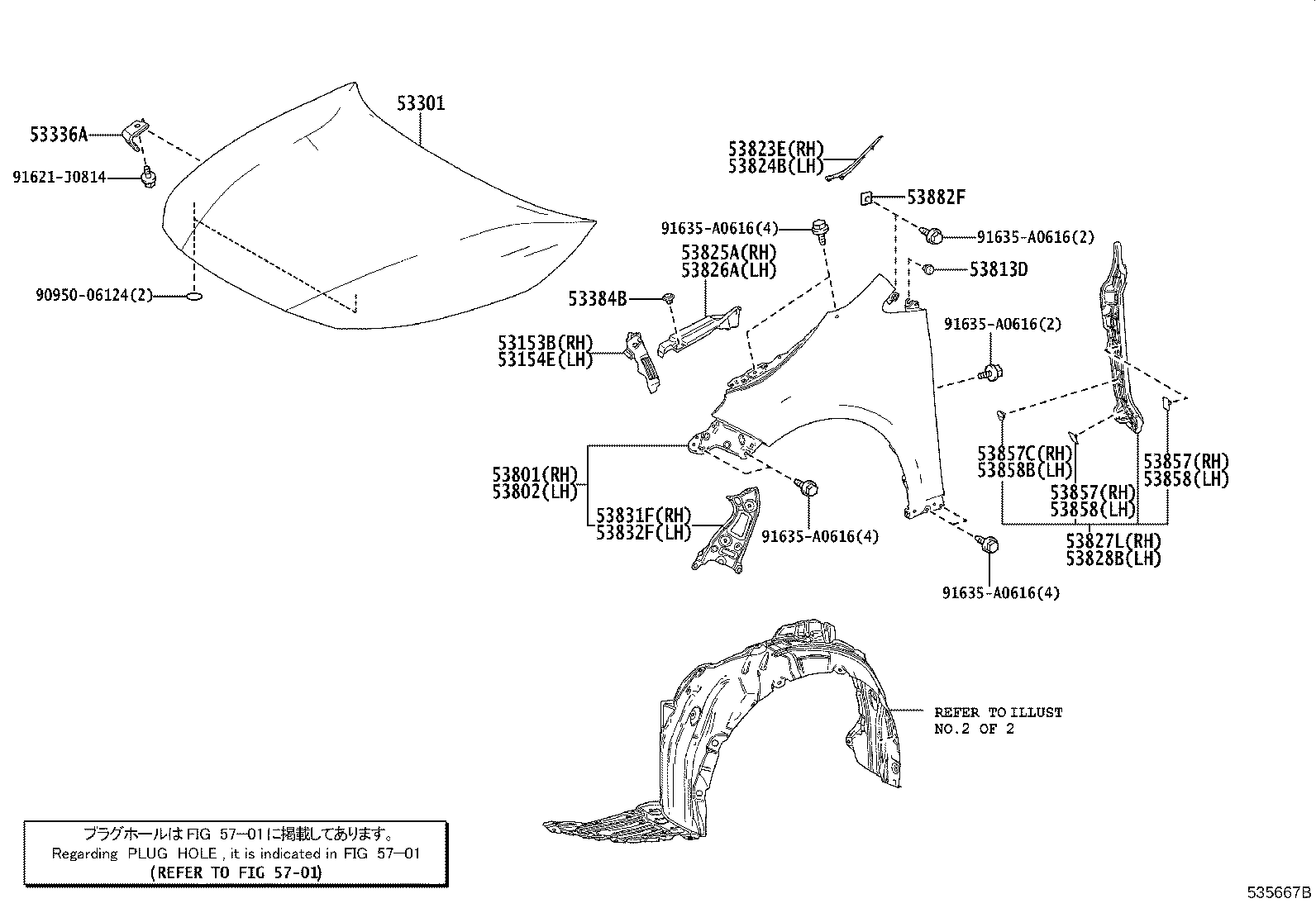

ILLUST NO. 1 OF 2(1806-2102) ; (2102- )NRE214
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-12040 |
NRE21#,ZWE213 |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-12030 |
NRE21#,ZWE213 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12B50 |
NRE210,ZWE213 |
1 | ||
| 53301-12B70 |
NRE210,ZWE213 |
1 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-12020 |
NRE210,ZWE213 |
1 | ||
| 53336-12030 |
NRE210,ZWE213 |
1 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-78010 |
NRE21#,ZWE213 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-12B10 |
NRE21#,ZWE21# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-12B10 |
NRE21#,ZWE21# |
1 | ||
| 53813D - EXTENSION, FRONT FENDER | ||||
| 53813-47040 |
NRE21#,ZWE213 |
2 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-12060 |
NRE21#,ZWE213 |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-12050 |
NRE21#,ZWE213 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-12100 |
NRE21#,ZWE213 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-12080 |
NRE21#,ZWE213 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-12150 |
NRE21#,ZWE213 |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-12150 |
NRE21#,ZWE213 |
1 | ||
| 53831F - PANEL, FRONT FENDER SIDE, RH | ||||
| 53831-12360 |
NRE21#,ZWE21# |
1 | ||
| 53832F - PANEL, FRONT FENDER SIDE, LH | ||||
| 53832-12360 |
NRE21#,ZWE21# |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53857C - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
NRE21#,ZWE213 |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
NRE21#,ZWE213 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
NRE21#,ZWE213 |
2 | ||
| Common parts | ||||
| 90950-06124 | ||||
| 91621-J0814 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 1 OF 2(2102- )NRE210,ZWE213
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-12040 |
NRE21#,ZWE213 |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-12030 |
NRE21#,ZWE213 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12B50 |
NRE210,ZWE213 |
1 | ||
| 53301-12B70 |
NRE210,ZWE213 |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-09117 |
NRE210,ZWE213 |
2 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-12020 |
NRE210,ZWE213 |
1 | ||
| 53336-12030 |
NRE210,ZWE213 |
1 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-78010 |
NRE21#,ZWE213 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-12B10 |
NRE21#,ZWE21# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-12B10 |
NRE21#,ZWE21# |
1 | ||
| 53813D - EXTENSION, FRONT FENDER | ||||
| 53813-47040 |
NRE21#,ZWE213 |
2 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-12060 |
NRE21#,ZWE213 |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-12050 |
NRE21#,ZWE213 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-12100 |
NRE21#,ZWE213 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-12080 |
NRE21#,ZWE213 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-12150 |
NRE21#,ZWE213 |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-12150 |
NRE21#,ZWE213 |
1 | ||
| 53831F - PANEL, FRONT FENDER SIDE, RH | ||||
| 53831-12360 |
NRE21#,ZWE21# |
1 | ||
| 53832F - PANEL, FRONT FENDER SIDE, LH | ||||
| 53832-12360 |
NRE21#,ZWE21# |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53857C - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
NRE21#,ZWE213 |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
NRE21#,ZWE213 |
2 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
NRE21#,ZWE213 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
NRE21#,ZWE213 |
2 | ||
| Common parts | ||||
| 90950-06124 | ||||
| 91621-J0814 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
