ZWE211H-BHXNB (2018)

Toyota Corolla Sport

Production Jun 2018 - May 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

Click highlighted areas on diagram

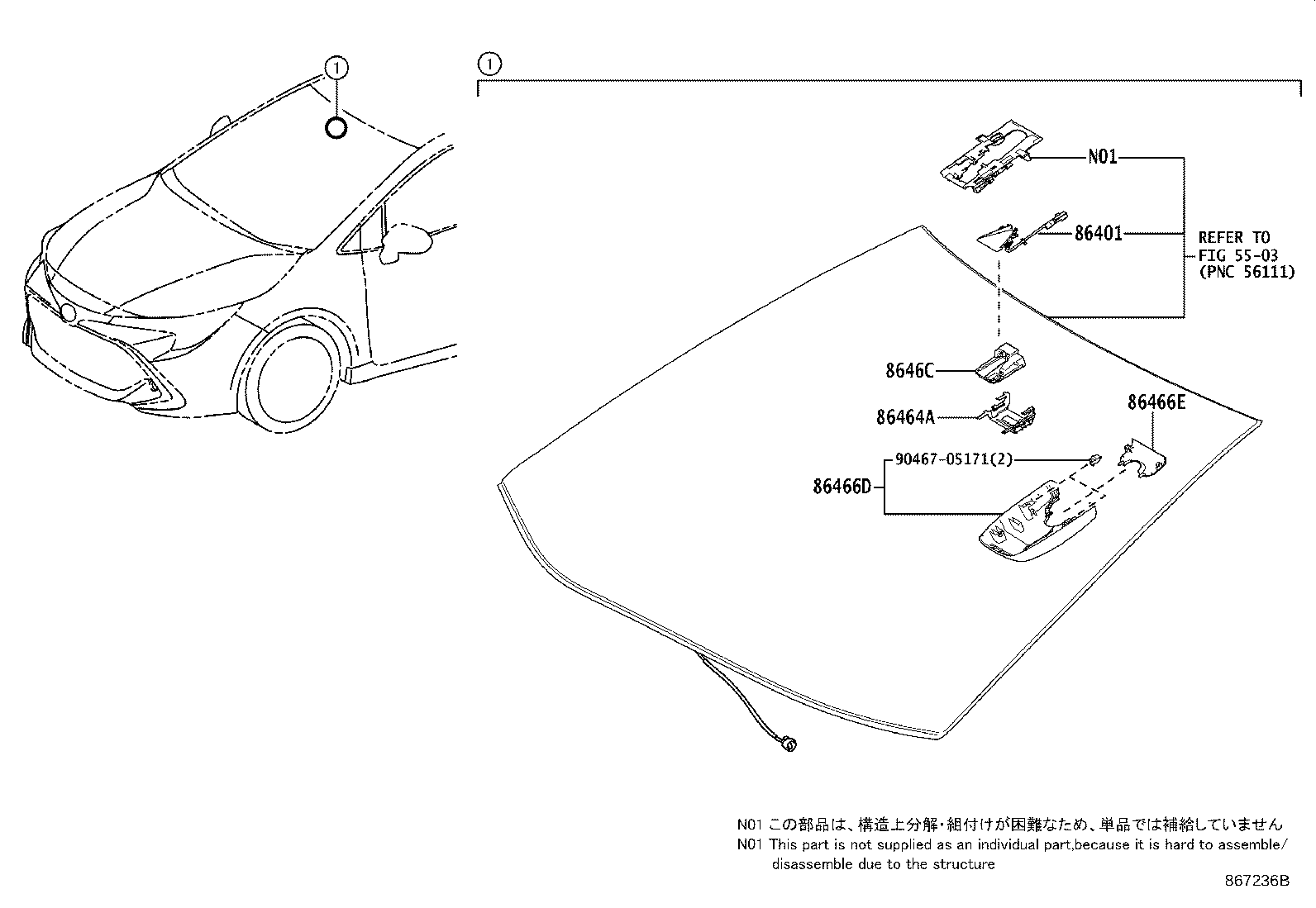

diagram 5503 86401 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-12010

NRE21#,ZWE21#

 1
86401-12010

NRE21#,ZWE211

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
86464A - LATCH, FORWARD RECOGNITION
86464-26010

NRE21#,ZWE21#

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-12030

ZWE211

 1
86466-12030

ZWE211

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-12040

ZWE211

 1
86466-12040

ZWE211

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-12010

NRE21#,ZWE211

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
8646C-12010

NRE21#,ZWE211

 1
Common parts
90467-05171
Linked diagrams
5503
