ZWE211H-BHXNB (2018)

Toyota Corolla Sport

Production Jun 2018 - May 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )ZWE21#

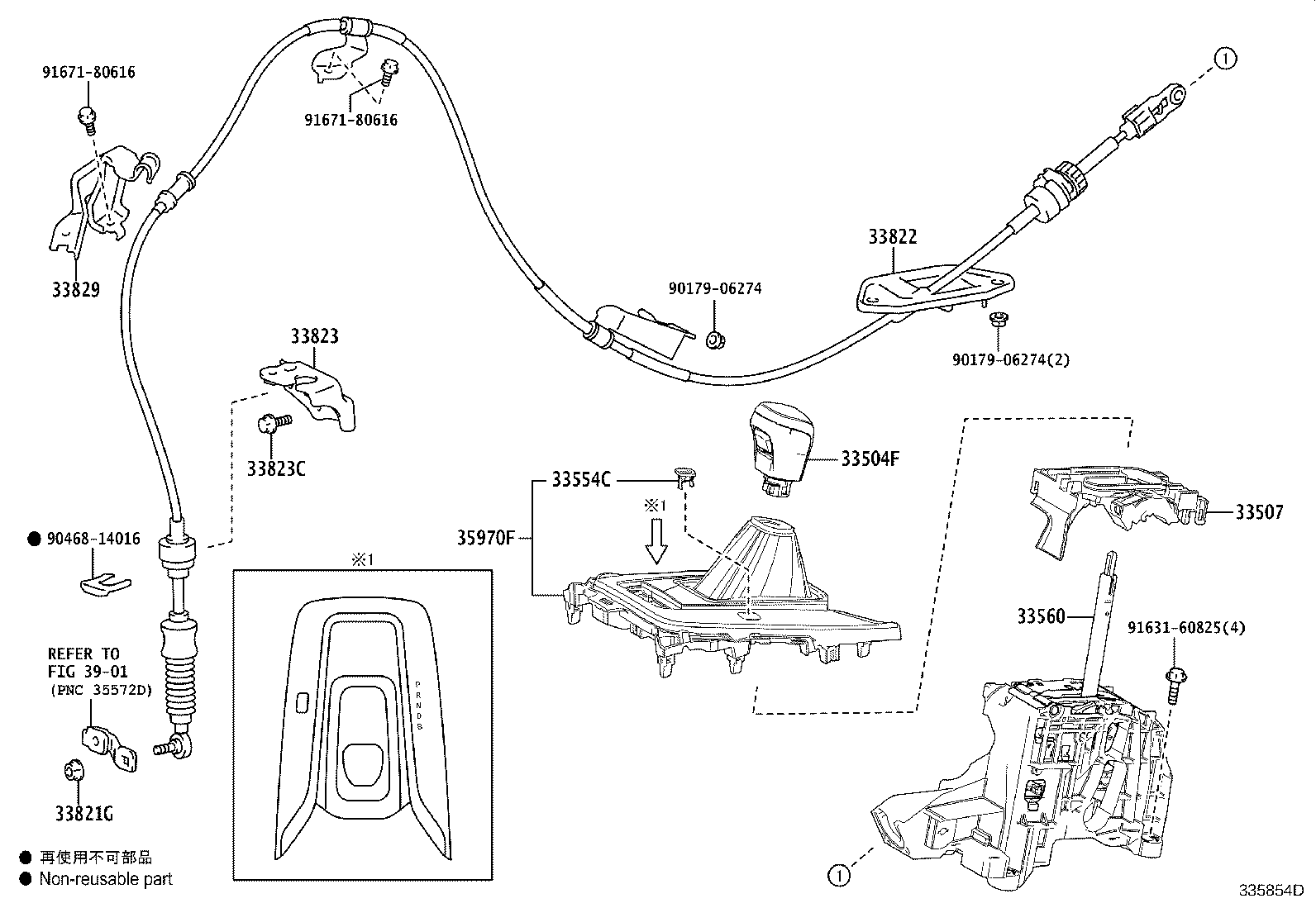

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33821G 33822 33823 33823C 33829 35970F 3901 9017906274 9017906274 9046814016 9163160825 9167180616 9167180616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12800C0

NRE21#,ZWE21#..CVT

BLACK,TRIM2#,3#,4#

 1
33504-33170C0

NRE21#,ZWE21#..CVT

Xﾊﾟｯｹｰｼﾞ*(S)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-12040

ZWE211

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-12220

ZWE211

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-10030

ZWE211

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ZWE211

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-12J60

ZWE211

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-10030

ZWE211

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08079

ZWE211

 2
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-10011

ZWE211

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-12480C3

ZWE211

BLACK & SILVER,TRIM2#,3#,4#

 1
Common parts
90179-06274
90468-14016
91631-60825
91671-80616
Linked diagrams
3901
