NRE214H-BHXNZ (2018)

Toyota Corolla Sport

Production Jun 2018 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

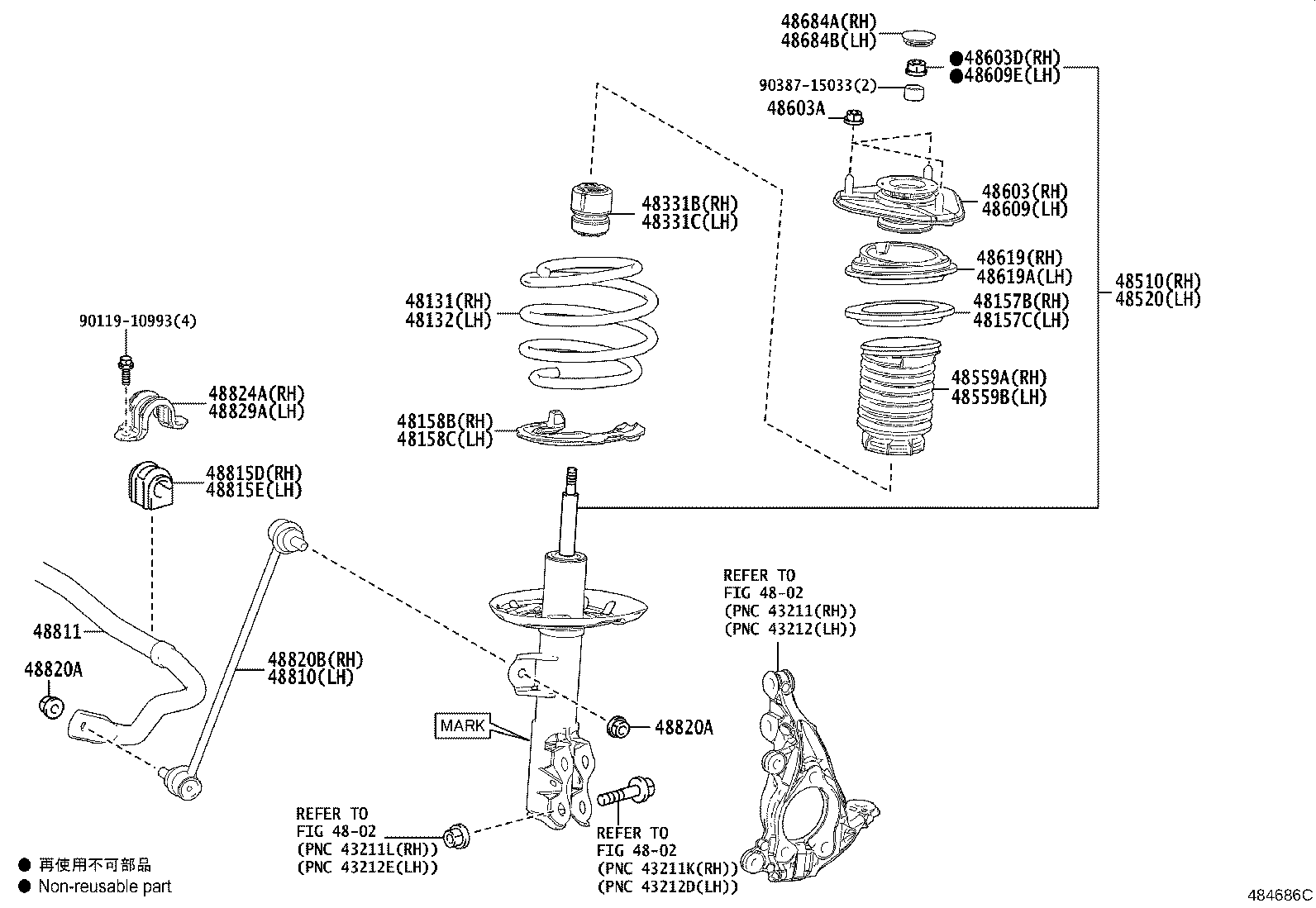

Click highlighted areas on diagram

diagram 4802 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48510 48520 48559A 48559B 48603 48603A 48603D 48609 48609E 48619 48619A 48684A 48684B 48810 48811 48815D 48815E 48820A 48820A 48820B 48824A 48829A 9011910993 9038715033
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-12J30

NRE214

 1
48131-12J40

NRE214

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/40R18 ｻﾏｰﾀｲﾔ ｱﾙﾐﾎｲｰﾙ

 1
48132 - SPRING, FRONT COIL, LH
48131-12J30

NRE214

 1
48131-12J40

NRE214

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/40R18 ｻﾏｰﾀｲﾔ ｱﾙﾐﾎｲｰﾙ

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-47030

NRE21#,ZWE21#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-47030

NRE21#,ZWE21#

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-47020

NRE21#,ZWE21#

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-47020

NRE21#,ZWE21#

 1
48331B - BUMPER, FRONT SPRING, RH
48331-10120

NRE21#,ZWE21#

 1
48331C - BUMPER, FRONT SPRING, LH
48331-10120

NRE21#,ZWE21#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80A30

NRE214

ﾏｰｸ 48510−12L10

 1
48510-80A31

NRE214

ﾏｰｸ 48510−12L20,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/40R18 ｻﾏ[ﾀｲﾔ ｱﾙﾐﾎｲｰﾙ

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-80589

NRE214

ﾏｰｸ 48520−12L20,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/40R18 ｻﾏ[ﾀｲﾔ ｱﾙﾐﾎｲｰﾙ

 1
48520-80588

NRE214

ﾏｰｸ 48520−12L10

 1
48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559-47010

NRE21#,ZWE21#

 1
48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48559-47010

NRE21#,ZWE21#

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-47060

NRE21#,ZWE21#

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-10029

NRE21#,ZWE213

 6
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90177-14007

NRE21#,ZWE21#

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-47060

NRE21#,ZWE21#

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90177-14007

NRE21#,ZWE21#

 1
48619 - BEARING, STRUT MOUNTING, RH
48619-F4010

NRE21#,ZWE21#

 1
48619A - BEARING, STRUT MOUNTING, LH
48619-F4010

NRE21#,ZWE21#

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-52010

NRE21#,ZWE21#

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-52010

NRE21#,ZWE21#

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-47040

NRE21#,ZWE213

 1
48811 - BAR, STABILIZER, FRONT
48811-12B20

NRE21#,ZWE213

 1
48815D - BUSH, FRONT STABILIZER BAR, RH
48815-12430

NRE21#,ZWE213

 1
48815E - BUSH, FRONT STABILIZER BAR, LH
48815-12430

NRE21#,ZWE213

 1
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

NRE21#,ZWE213

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

NRE21#,ZWE213

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-47040

NRE21#,ZWE213

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-47020

NRE21#,ZWE213

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-47020

NRE21#,ZWE213

 1
Common parts
90119-10993
90387-15033
Linked diagrams
4802
