NRE210H-BHXNZ (2018)

Toyota Corolla Sport

Production Jun 2018 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1806- )

Click highlighted areas on diagram

diagram 85213B 85213C
Part # Description Qty Price
85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT)
85213-28110

NRE21#,ZWE213

 1
85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT)
85213-12320

NRE21#,ZWE213

 1

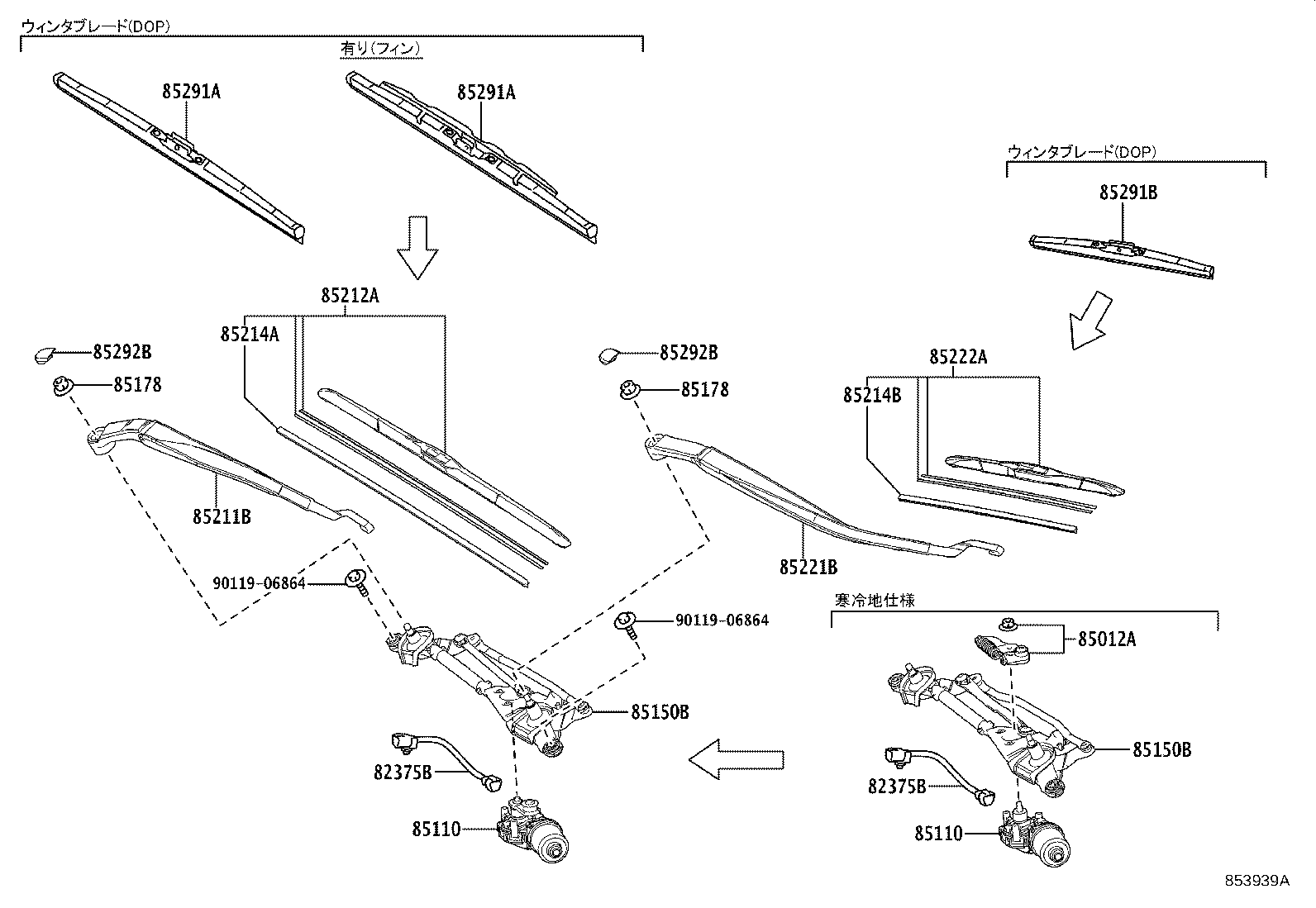

ILLUST NO. 2 OF 2(1806-1909)

Click highlighted areas on diagram

diagram 82375B 82375B 85012A 85110 85110 85150B 85150B 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 9011906864 9011906864
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-12330

NRE21#,ZWE211

 1
82375B - WIRE, WIPER MOTOR
82375-12330

NRE21#,ZWE211

 1
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-50010

NRE21#,ZWE213

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12C40

NRE21#,ZWE213

 1
85110-12C50

NRE21#,ZWE213

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12C40

NRE21#,ZWE213

 1
85110-12C50

NRE21#,ZWE213

寒冷地仕様

 1
85150B - LINK ASSY, WIPER
85150-12B90

NRE21#,ZWE213

 1
85150-12C00

NRE21#,ZWE213

寒冷地仕様

 1
85150B - LINK ASSY, WIPER
85150-12B90

NRE21#,ZWE213

 1
85150-12C00

NRE21#,ZWE213

寒冷地仕様

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NRE21#,ZWE213

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NRE21#,ZWE213

 2
85211B - ARM, FRONT WIPER, RH
85211-12670

NRE21#,ZWE213

 1
85212A - BLADE, FR WIPER, RH
85212-12610

NRE21#,ZWE213

 1
85214A - RUBBER, WIPER, RH
85214-28080

NRE21#,ZWE213

 1
85214B - RUBBER, WIPER, LH
85214-68030

NRE21#,ZWE213

 1
85221B - ARM, FRONT WIPER, LH
85221-12600

NRE21#,ZWE213

 1
85222A - BLADE, FR WIPER, LH
85222-12A80

NRE21#,ZWE213

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-52090

NRE21#,ZWE213

有り(ﾌｨﾝ)

 1
85291-52100

NRE21#,ZWE213

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-52090

NRE21#,ZWE213

有り(ﾌｨﾝ)

 1
85291-52100

NRE21#,ZWE213

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-58110

NRE21#,ZWE213

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NRE21#,ZWE213

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NRE21#,ZWE213

 2
Common parts
90119-06864

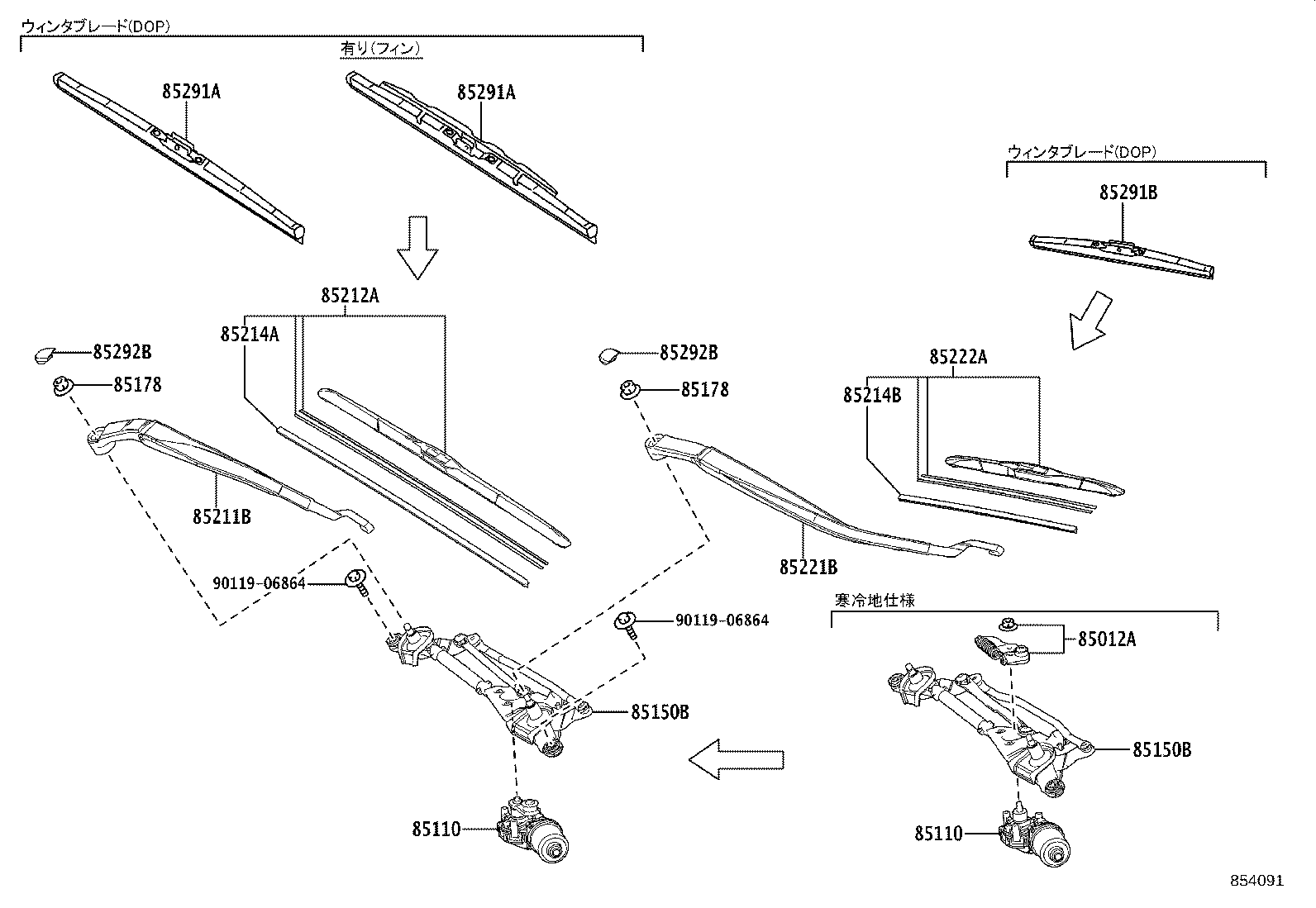

ILLUST NO. 2 OF 2(1909- )

Click highlighted areas on diagram

diagram 85012A 85110 85110 85150B 85150B 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 9011906864 9011906864
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-50010

NRE21#,ZWE213

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12C40

NRE21#,ZWE213

 1
85110-12C50

NRE21#,ZWE213

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12C40

NRE21#,ZWE213

 1
85110-12C50

NRE21#,ZWE213

寒冷地仕様

 1
85150B - LINK ASSY, WIPER
85150-12B90

NRE21#,ZWE213

 1
85150-12C00

NRE21#,ZWE213

寒冷地仕様

 1
85150B - LINK ASSY, WIPER
85150-12B90

NRE21#,ZWE213

 1
85150-12C00

NRE21#,ZWE213

寒冷地仕様

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NRE21#,ZWE213

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NRE21#,ZWE213

 2
85211B - ARM, FRONT WIPER, RH
85211-12670

NRE21#,ZWE213

 1
85212A - BLADE, FR WIPER, RH
85212-12610

NRE21#,ZWE213

 1
85214A - RUBBER, WIPER, RH
85214-28080

NRE21#,ZWE213

 1
85214B - RUBBER, WIPER, LH
85214-68030

NRE21#,ZWE213

 1
85221B - ARM, FRONT WIPER, LH
85221-12600

NRE21#,ZWE213

 1
85222A - BLADE, FR WIPER, LH
85222-12A80

NRE21#,ZWE213

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-52090

NRE21#,ZWE213

有り(ﾌｨﾝ)

 1
85291-52100

NRE21#,ZWE213

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-52090

NRE21#,ZWE213

有り(ﾌｨﾝ)

 1
85291-52100

NRE21#,ZWE213

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-58110

NRE21#,ZWE213

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NRE21#,ZWE213

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NRE21#,ZWE213

 2
Common parts
90119-06864
