NRE210H-BHXNZ (2018)

Toyota Corolla Sport

Production Jun 2018 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )NRE21#

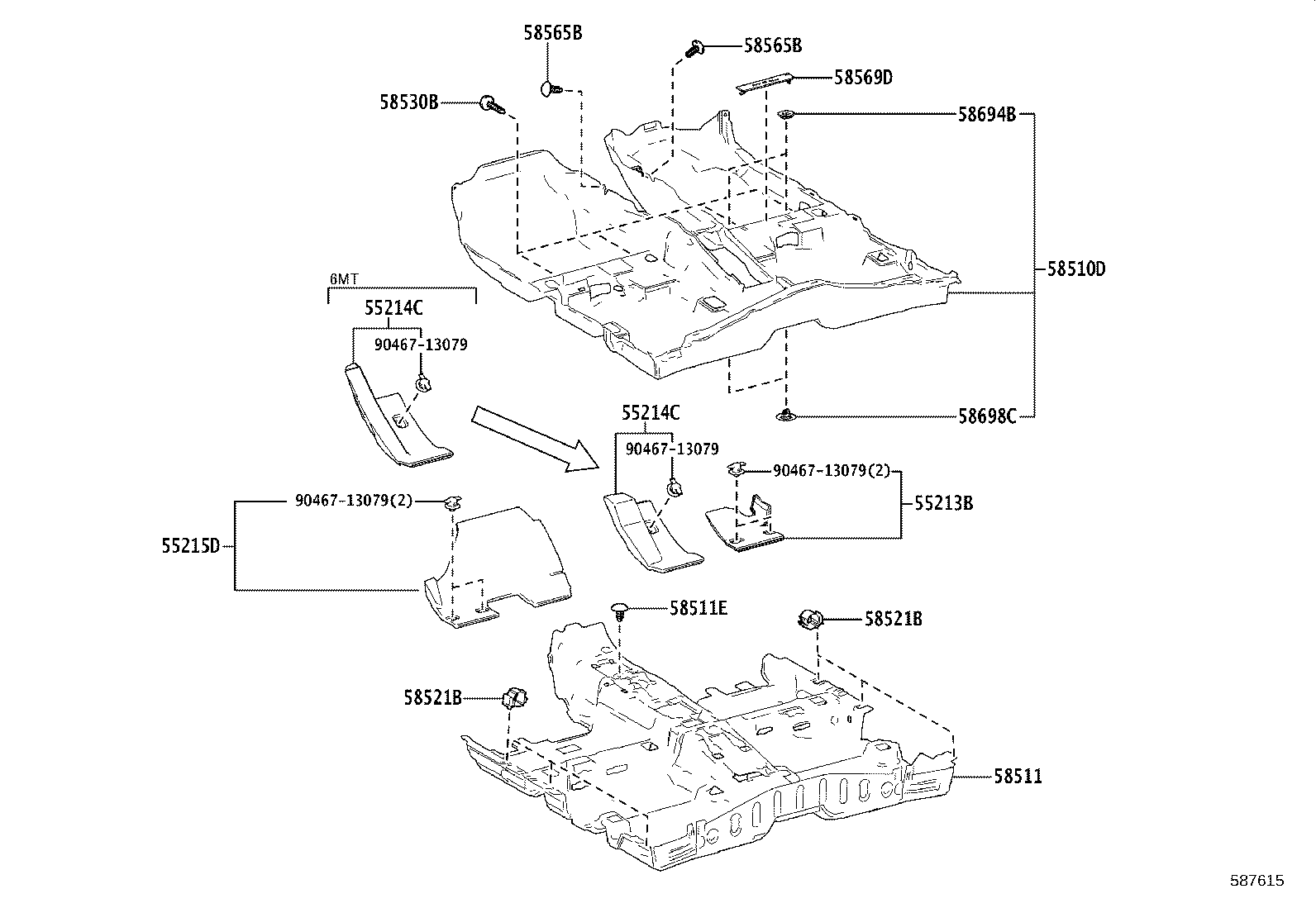

Click highlighted areas on diagram

diagram 55213B 55214C 55214C 55215D 58510D 58511 58511E 58521B 58521B 58530B 58565B 58565B 58569D 58694B 58698C 9046713079 9046713079 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-47150

NRE21#,ZWE213

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-47070

NRE21#,ZWE213..CVT

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-47070

NRE21#,ZWE213..CVT

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-47070

NRE21#,ZWE213

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-12L30C1

NRE210..CVT

BLACK,TRIM2#,3#,4#

 1
58511 - MAT, FLOOR, FRONT
58511-12780

NRE210

 1
58511-12770

NRE210

寒冷地仕様

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

NRE21#,ZWE213

BLACK

 1
58521B - HOOK, FLOOR CARPET
58521-33060

NRE21#,ZWE213

 6
58521B - HOOK, FLOOR CARPET
58521-33060

NRE21#,ZWE213

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07161C1

NRE21#,ZWE213

BLACK,TRIM2#,3#,4#

 4
90467-0704923

NRE21#,ZWE211

BLACK,TRIM2#,3#,4#

 4
58565B - CLIP
90467-05164C7

NRE21#,ZWE21#

BLACK,TRIM2#,3#,4#

 2
58565B - CLIP
90467-05164C7

NRE21#,ZWE21#

BLACK,TRIM2#,3#,4#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-47020C1

NRE21#,ZWE21#

BLACK,TRIM2#,3#,4#

 1
58694B - PLATE, MAT SET, UPPER
58694-78010

NRE21#,ZWE21#

 2
58698C - PLATE, MAT SET, LOWER
58698-78010

NRE21#,ZWE21#

 2
Common parts
90467-13079
