NRE210H-BHXNZ (2018)
Toyota Corolla Sport

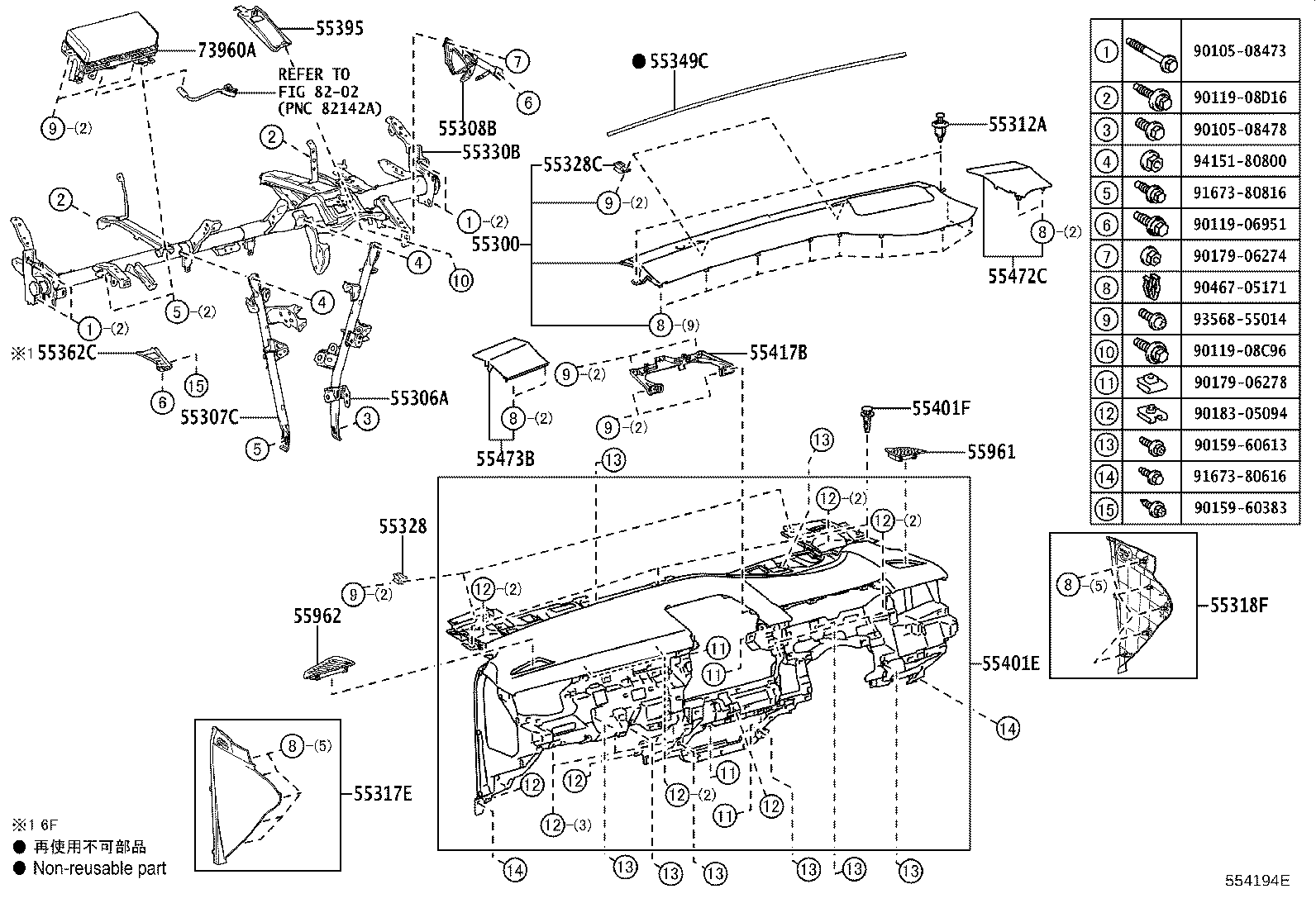

ILLUST NO. 1 OF 2(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-12060C0 |
NRE21#,ZWE21# BLACK,TRIM2#,3#,4# |
1 | ||
| 55300-12070C0 |
NRE21#,ZWE211 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM2#,3#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12550 |
NRE21#,ZWE213..CVT |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12460 |
NRE21#,ZWE213 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-12340 |
NRE21#,ZWE213 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07217 |
NRE21#,ZWE21# |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-12230C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-12170C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
NRE21#,ZWE211 |
2 | ||
| 55328-12430 |
NRE21#,ZWE21# |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-12440 |
NRE21#,ZWE21# |
2 | ||
| 55328-12420 |
NRE21#,ZWE211 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12640 |
NRE21#,ZWE211 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 55330-12861 |
NRE21#,ZWE21# |
1 | ||
| 55330-12860 |
NRE21#,ZWE211 |
1 | ||
| 55330-12641 |
NRE21#,ZWE21# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-12190 |
NRE21#,ZWE21# |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-12040 |
NRE21#,ZWE213 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-12907C2 |
NRE21#,ZWE211 Zﾊﾟｯｹｰｼﾞ*(Z),BLACK/GRAY,TRIM20 |
1 | ||
| 55400-12906C0 |
NRE21#,ZWE211 BLACK,TRIM2# |
1 | ||
| 55400-12907C2 |
NRE21#,ZWE211 ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,BLACK/GRAY,TRIM20 |
1 | ||
| 55400-12907C3 |
NRE21#,ZWE211 ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12907C9 |
NRE21#,ZWE211 Zﾊﾟｯｹｰｼﾞ*(Z),TRIM4# |
1 | ||
| 55400-12907C9 |
NRE21#,ZWE211 ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,TRIM4# |
1 | ||
| 55400-12905C7 |
NRE21#,ZWE21# Zﾊﾟｯｹｰｼﾞ*(Z),BLACK/DK.ROSE,TRIM20,3# |
1 | ||
| 55400-12907C1 |
NRE21#,ZWE211 ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,BLACK/DK.ROSE,TRIM20,3# |
1 | ||
| 55400-12907C3 |
NRE21#,ZWE211 Zﾊﾟｯｹｰｼﾞ*(Z),BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12907C7 |
NRE21#,ZWE211 ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,TRIM20,3# |
1 | ||
| 55400-12906C4 |
NRE21#,ZWE211 BLACK,TRIM2# |
1 | ||
| 55400-12907C8 |
NRE21#,ZWE211 Zﾊﾟｯｹｰｼﾞ*(Z),TRIM20 |
1 | ||
| 55400-12907C7 |
NRE21#,ZWE211 Zﾊﾟｯｹｰｼﾞ*(Z),TRIM20,3# |
1 | ||
| 55400-12907C1 |
NRE21#,ZWE211 Zﾊﾟｯｹｰｼﾞ*(Z),BLACK/DK.ROSE,TRIM20,3# |
1 | ||
| 55400-12904C4 |
NRE21#,ZWE21# BLACK,TRIM2# |
1 | ||
| 55400-12907C8 |
NRE21#,ZWE211 ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,TRIM20 |
1 | ||
| 55400-12905C9 |
NRE21#,ZWE213 ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12905C8 |
NRE21#,ZWE21# ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,BLACK/GRAY,TRIM20 |
1 | ||
| 55400-12905C9 |
NRE21#,ZWE213 Zﾊﾟｯｹｰｼﾞ*(Z),BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12905C8 |
NRE21#,ZWE21# Zﾊﾟｯｹｰｼﾞ*(Z),BLACK/GRAY,TRIM20 |
1 | ||
| 55400-12905C7 |
NRE21#,ZWE21# ｼｰﾄ表皮−本革&ﾒﾗﾝｼﾞ調ﾌｧﾌﾞﾘｯｸ,BLACK/DK.ROSE,TRIM20,3# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
NRE21#,ZWE21# |
3 | ||
| 55417B - RETAINER, RADIO TUNER FINISH | ||||
| 55417-12060 |
NRE21#,ZWE211 |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-12140C0 |
NRE21#,ZWE21# BLACK,TRIM2#,3#,4# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-12120C0 |
NRE21#,ZWE211 BLACK,TRIM2#,3#,4# |
1 | ||
| 55473-12140C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12260C0 |
NRE21#,ZWE211 BLACK,TRIM2#,4# |
1 | ||
| 55961-12260C0 |
NRE21#,ZWE21# BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12230C0 |
NRE21#,ZWE211 BLACK,TRIM2#,4# |
1 | ||
| 55962-12230C0 |
NRE21#,ZWE21# BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12320 |
NRE21#,ZWE213 |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90159-60383 | ||||
| 90159-60613 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

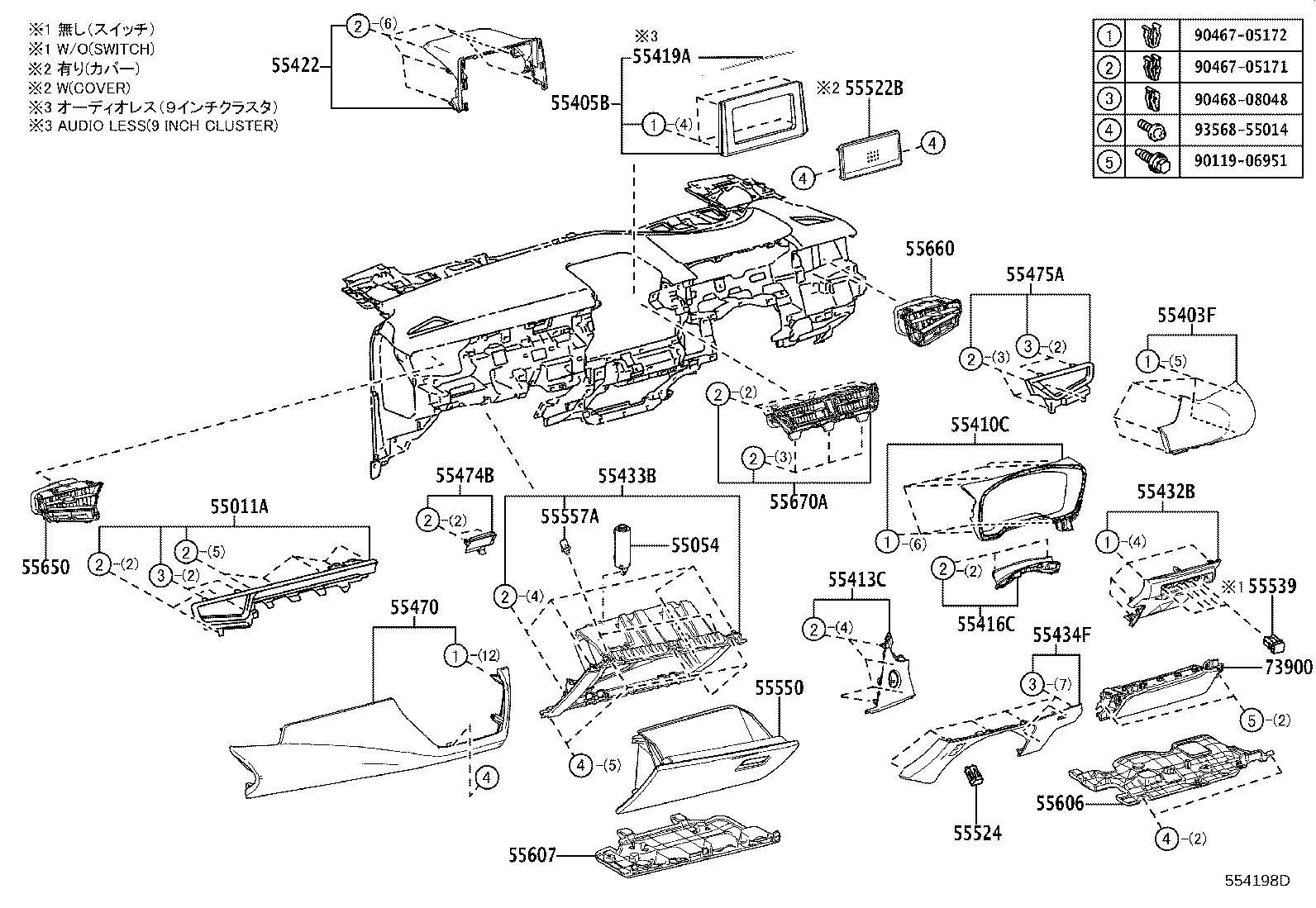

ILLUST NO. 2 OF 2(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-12181C1 |
NRE21#,ZWE211 BLACK/SILVER,TRIM2#,3#,4# |
1 | ||
| 55011-12181B3 |
NRE21#,ZWE21# SILVER,TRIM2#,3#,4# |
1 | ||
| 55011-12181C1 |
NRE21#,ZWE211 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｾﾝﾀｸﾗｽﾀ−9ｲﾝﾁ(DOP),BLACK/SILVER,TRIM2#,3#,4# |
1 | ||
| 55011-12181B3 |
NRE21#,ZWE211 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｾﾝﾀｸﾗｽﾀ−9ｲﾝﾁ(DOP),SILVER,TRIM2#,3#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NRE21#,ZWE213 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-12210C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12F70B0 |
NRE21#,ZWE211 SILVER,TRIM2#,3#,4# |
1 | ||
| 55405-12G40B0 |
NRE21#,ZWE211 ｵｰﾃﾞｨｵ(国内)−ｵｰﾃﾞｨｵﾚｽ 6ｽﾋﾟｰｶ&9ｲﾝﾁｸﾗｽﾀ(DOP),SILVER,TRIM2#,3#,4# |
1 | ||
| 55405-12G40B0 |
NRE21#,ZWE211 Xﾊﾟｯｹｰｼﾞ*(S)&ｵｰﾃﾞｨｵ(国内)−ｵｰﾃﾞｨｵﾚｽ 4ｽﾋﾟｰｶ&9ｲﾝﾁｸﾗｽﾀ(DOP),SILVER,TRIM2#,3#,4# |
1 | ||
| 55405-12E90B0 |
NRE21#,ZWE21# SILVER,TRIM2#,3#,4# |
1 | ||
| 55405-12G10 |
NRE21#,ZWE21# ｵｰﾃﾞｨｵ(国内)−(9ｲﾝﾁ)6ｽﾋﾟｰｶ |
1 | ||
| 55405-12F60 |
NRE21#,ZWE211 Xﾊﾟｯｹｰｼﾞ*(S) |
1 | ||
| 55405-12E40 |
NRE21#,ZWE21# Xﾊﾟｯｹｰｼﾞ*(S) |
1 | ||
| 55405-12G30 |
NRE21#,ZWE213 Xﾊﾟｯｹｰｼﾞ*(S) |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12D40C0 |
NRE21#,ZWE211..CVT Xﾊﾟｯｹｰｼﾞ*(S),BLACK,TRIM2#,4# |
1 | ||
| 55410-12D50C2 |
NRE21#,ZWE21# BLACK/SILVER,TRIM2#,3#,4# |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-12750C0 |
NRE21#,ZWE21# BLACK,TRIM2#,3#,4# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-12210 |
NRE21#,ZWE21# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-12260 |
NRE21#,ZWE211 ｵｰﾃﾞｨｵ(国内)−ｵｰﾃﾞｨｵﾚｽ 6ｽﾋﾟｰｶ&9ｲﾝﾁｸﾗｽﾀ(DOP) |
1 | ||
| 55419-12260 |
NRE21#,ZWE211 Xﾊﾟｯｹｰｼﾞ*(S)&ｵｰﾃﾞｨｵ(国内)−ｵｰﾃﾞｨｵﾚｽ 4ｽﾋﾟｰｶ&9ｲﾝﾁｸﾗｽﾀ(DOP) |
1 | ||
| 55422 - ORNAMENT, INSTRUMENT PANEL METER, UPPER | ||||
| 55422-12350 |
NRE21# ｵｰﾃﾞｨｵ(国内)−(9ｲﾝﾁ)6ｽﾋﾟｰｶ |
1 | ||
| 55422-12340 |
NRE21#,ZWE213 |
1 | ||
| 55422-12340 |
NRE21#,ZWE213 ｵｰﾃﾞｨｵ(国内)−(9ｲﾝﾁ)6ｽﾋﾟｰｶ |
1 | ||
| 55422-12350 |
NRE21#,ZWE211 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12700C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12390C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12420C0 |
NRE21#,ZWE213 CD&DVDﾃﾞｯｷ(DOP)−有り,BLACK,TRIM2#,3#,4# |
1 | ||
| 55434-12320C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55434-12410C0 |
NRE21#,ZWE213 ｲﾙﾐﾈｰﾃｨｯﾄﾞｴﾝﾄﾘｰｼｽﾃﾑ−有り(ｺﾝｿｰﾙﾄﾚｲ,*CUH,ﾌﾛﾝﾄﾄﾞｱﾄﾘﾑ),BLACK,TRIM2#,3#,4# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-12101C3 |
NRE21#,ZWE213 BLACK/GRAY,TRIM20 |
1 | ||
| 55470-12101C2 |
NRE21#,ZWE213 BLACK/DK.ROSE,TRIM20,3# |
1 | ||
| 55470-12090C0 |
NRE21#,ZWE211 Xﾊﾟｯｹｰｼﾞ*(S),BLACK,TRIM2# |
1 | ||
| 55470-12101C4 |
NRE21#,ZWE213 BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55470-12100C2 |
NRE21# ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂ,BLACK/DK.ROSE,TRIM20,3# |
1 | ||
| 55470-12100C4 |
NRE21#,ZWE211 BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55470-12091C0 |
NRE21#,ZWE213 Xﾊﾟｯｹｰｼﾞ*(S),BLACK,TRIM2# |
1 | ||
| 55470-12100C3 |
NRE21# ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾃｨ,BLACK/GRAY,TRIM20 |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-12300B1 |
NRE21#,ZWE21# SILVER,TRIM2#,3#,4# |
1 | ||
| 55474-12270B0 |
NRE21#,ZWE213 SILVER,TRIM2#,3#,4# |
1 | ||
| 55474-12270B0 |
NRE21# ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｾﾝﾀｸﾗｽﾀ−9ｲﾝﾁ(DOP),SILVER,TRIM2#,3#,4# |
1 | ||
| 55474-12300B1 |
NRE21#,ZWE211 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｾﾝﾀｸﾗｽﾀ−9ｲﾝﾁ(DOP),SILVER,TRIM2#,3#,4# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-12171C1 |
NRE21#,ZWE21# BLACK/SILVER,TRIM2#,3#,4# |
1 | ||
| 55475-12171C1 |
NRE21#,ZWE211 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｾﾝﾀｸﾗｽﾀ−9ｲﾝﾁ(DOP),BLACK/SILVER,TRIM2#,3#,4# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NRE21#,ZWE211 Xﾊﾟｯｹｰｼﾞ*(S)&ｵｰﾃﾞｨｵ(国内)−ｵｰﾃﾞｨｵﾚｽ 4ｽﾋﾟｰｶ ｶﾊﾞｰ付き(DOP) |
1 | ||
| 55522-52020 |
NRE21#,ZWE211 ｵｰﾃﾞｨｵ(国内)−ｵｰﾃﾞｨｵﾚｽ 6ｽﾋﾟｰｶ ｶﾊﾞｰ付き(DOP) |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-12010C0 |
NRE21#,ZWE211 BLACK,TRIM2#,3#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
NRE21#,ZWE213 BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12580C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
NRE21#,ZWE213 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-12160 |
NRE21#,ZWE213 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-12120 |
NRE21#,ZWE213 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12460 |
NRE21#,ZWE213 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12530 |
NRE21#,ZWE213 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12740 |
NRE21#,ZWE213 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-12120C0 |
NRE21#,ZWE213 BLACK,TRIM2#,3#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
