NRE210H-BHXNZ (2018)

Toyota Corolla Sport

Production Jun 2018 - Sep 9999
Engine 8NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )NRE21#..CVT

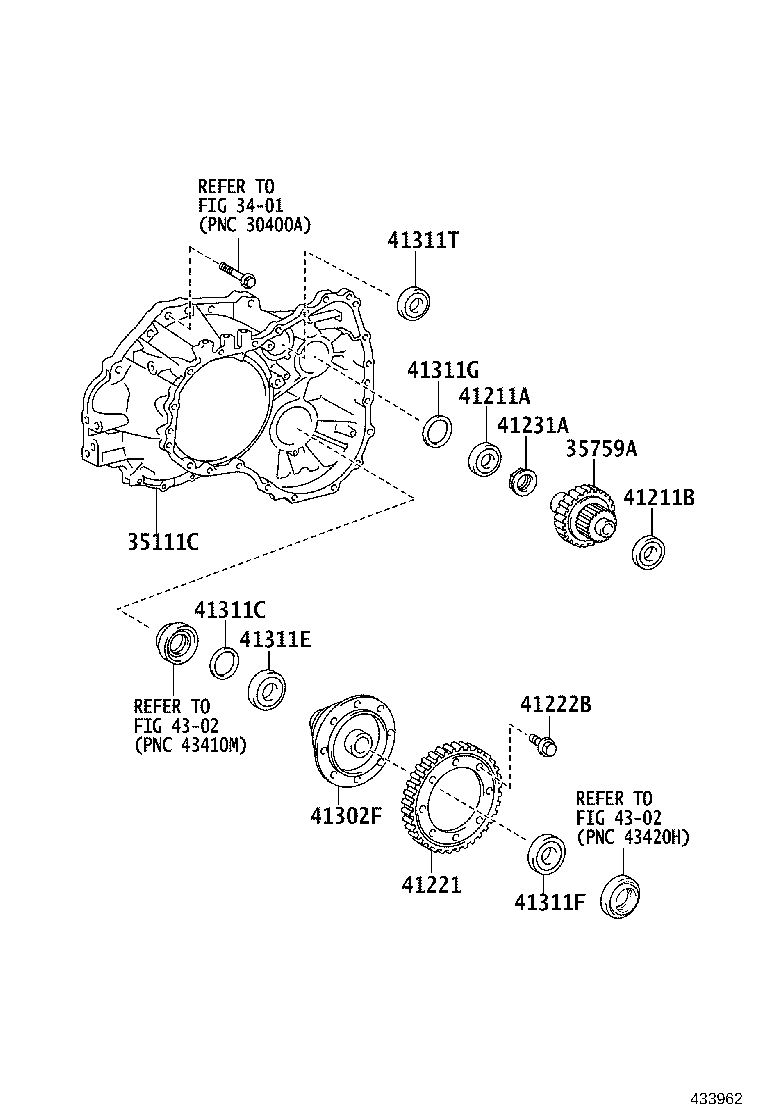

Click highlighted areas on diagram

K313E,K313F

diagram 35111C 35759A 41211A 41211B 41221 41222B 41231A 41302F 41311C 41311E 41311F 41311G 41311T
Part # Description Qty Price
35111C - HOUSING, TRANSAXLE
35105-12091

NRE210..CVT

 1
35759A - GEAR, REDUCTION DRIVEN
35705-12070

NRE210..CVT

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-25021

NRE21#..CVT

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90366-29010

NRE21#..CVT

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12570

NRE210..CVT

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12379

NRE21#..CVT

 8
41231A - NUT, DRIVE PINION LOCK
90179-32006

NRE21#..CVT

 1
41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL
41301-12381

NRE210..CVT

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-48006

NRE210..CVT

厚さ=2.18,ﾏｰｸ F

 1
90564-48002

NRE210..CVT

厚さ=2.06,ﾏｰｸ B

 1
90564-48001

NRE210..CVT

厚さ=2.03,ﾏｰｸ A

 1
90564-48013

NRE210..CVT

厚さ=2.39,ﾏｰｸ N

 1
90564-48005

NRE210..CVT

厚さ=2.15,ﾏｰｸ E

 1
90564-48008

NRE210..CVT

厚さ=2.24,ﾏｰｸ H

 1
90564-48007

NRE210..CVT

厚さ=2.21,ﾏｰｸ G

 1
90564-48017

NRE210..CVT

厚さ=2.51,ﾏｰｸ S

 1
90564-48020

NRE210..CVT

厚さ=2.60,ﾏｰｸ V

 1
90564-48004

NRE210..CVT

厚さ=2.12,ﾏｰｸ D

 1
90564-48003

NRE210..CVT

厚さ=2.09,ﾏｰｸ C

 1
90564-48012

NRE210..CVT

厚さ=2.36,ﾏｰｸ M

 1
90564-48018

NRE210..CVT

厚さ=2.54,ﾏｰｸ T

 1
90564-48014

NRE210..CVT

厚さ=2.42,ﾏｰｸ P

 1
90564-48019

NRE210..CVT

厚さ=2.57,ﾏｰｸ U

 1
90564-48015

NRE210..CVT

厚さ=2.45,ﾏｰｸ Q

 1
90564-48011

NRE210..CVT

厚さ=2.33,ﾏｰｸ L

 1
90564-48009

NRE210..CVT

厚さ=2.27,ﾏｰｸ J

 1
90564-48010

NRE210..CVT

厚さ=2.30,ﾏｰｸ K

 1
90564-48016

NRE210..CVT

厚さ=2.48,ﾏｰｸ R

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40117

NRE210..CVT

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-44007

NRE21#..CVT

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-47004

NRE21#..CVT

厚さ=1.82,ﾏｰｸ D

 1
90564-47003

NRE21#..CVT

厚さ=1.79,ﾏｰｸ C

 1
90564-47002

NRE21#..CVT

厚さ=1.76,ﾏｰｸ B

 1
90564-47008

NRE21#..CVT

厚さ=1.94,ﾏｰｸ H

 1
90564-47001

NRE21#..CVT

厚さ=1.73,ﾏｰｸ A

 1
90564-47009

NRE21#..CVT

厚さ=1.97,ﾏｰｸ J

 1
90564-47007

NRE21#..CVT

厚さ=1.91,ﾏｰｸ G

 1
90564-47011

NRE21#..CVT

厚さ=2.03,ﾏｰｸ L

 1
90564-47012

NRE21#..CVT

厚さ=2.06,ﾏｰｸ M

 1
90564-47016

NRE21#..CVT

厚さ=2.18,ﾏｰｸ S

 1
90564-47005

NRE21#..CVT

厚さ=1.85,ﾏｰｸ E

 1
90564-47013

NRE21#..CVT

厚さ=2.09,ﾏｰｸ N

 1
90564-47019

NRE21#..CVT

厚さ=2.27,ﾏｰｸ V

 1
90564-47015

NRE21#..CVT

厚さ=2.15,ﾏｰｸ Q

 1
90564-47018

NRE21#..CVT

厚さ=2.24,ﾏｰｸ U

 1
90564-47010

NRE21#..CVT

厚さ=2.00,ﾏｰｸ K

 1
90564-47017

NRE21#..CVT

厚さ=2.21,ﾏｰｸ T

 1
90564-47006

NRE21#..CVT

厚さ=1.88,ﾏｰｸ F

 1
90564-47014

NRE21#..CVT

厚さ=2.12,ﾏｰｸ P

 1
41311T - BEARING, CYLINDRICAL ROLLER(FOR SECONDARY SHEAVE SHAFT)
90365-24001

NRE21#..CVT

 1
