ZZE124N-FWPNK (2001)

Toyota Corolla Spacio

Production Aug 2001 - Apr 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0304)

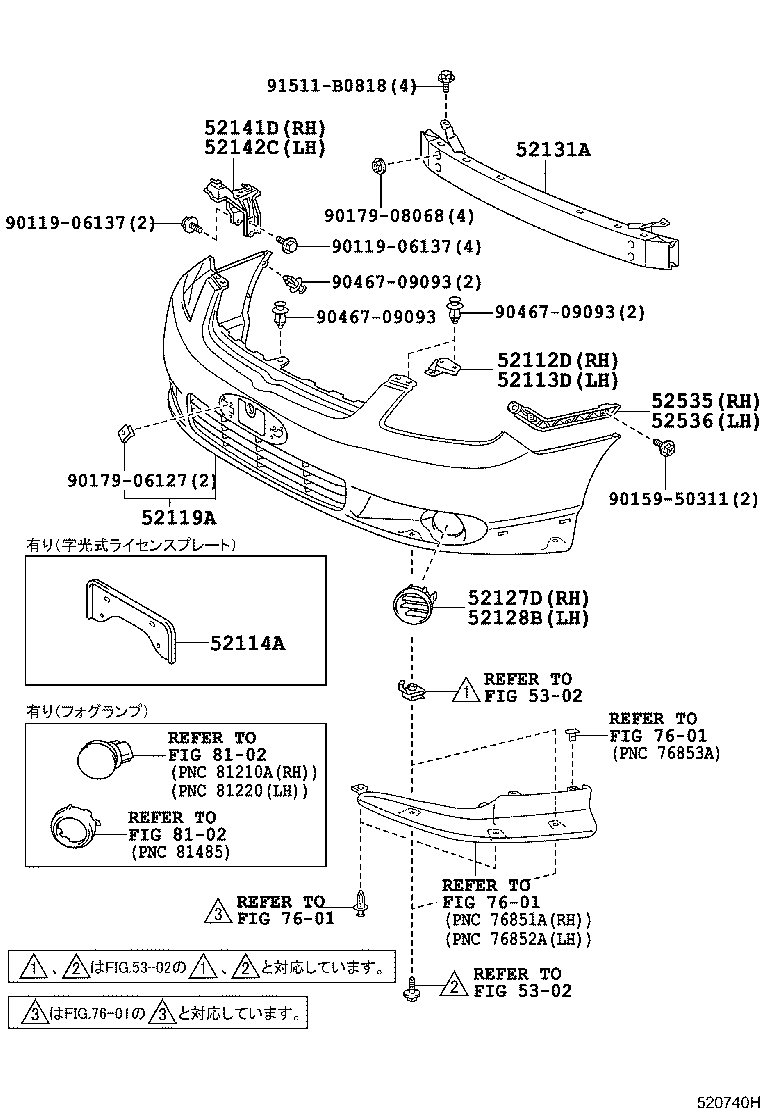

Click highlighted areas on diagram

diagram 52112D 52113D 52114A 52119A 52127D 52128B 52131A 52141D 52142C 52535 52536 5302 5302 7601 7601 7601 8102 8102 9011906137 9011906137 9015950311 9017906127 9017908068 9046709093 9046709093 9046709093 91511B0818
Part # Description Qty Price
52112D - EXTENSION, FRONT BUMPER, RH
52112-13040

NZE121,ZZE12#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-13040

NZE121,ZZE12#

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-12100

NZE121,ZZE12#

ｱﾘ(ｼﾞｺｳｼｷ ﾗｲｾﾝｽ ﾌﾟﾚ-ﾄ)

 1
52119A - COVER, FRONT BUMPER
52119-13320A0

NZE121,ZZE12#..X

SUPER WHITE 2,040

 1
52119-13320B0

NZE121,ZZE12#..X

SILVER ME.GR.,1D9

 1
52119-13320D1

NZE121,ZZE12#..X

BORDEAUX MC.,3P2

 1
52119-13330A0

NZE121,ZZE12#..X

ｱﾘ(ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ),SUPER WHITE 2,040

 1
52119-13320D0

NZE121,ZZE12#..X

RED M.M.,3N8

 1
52119-13330B0

NZE121,ZZE12#..X

ｱﾘ(ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ),SILVER ME.GR.,1D9

 1
52119-13330D1

NZE121,ZZE12#..X

ｱﾘ(ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ),BORDEAUX MC.,3P2

 1
52119-13330F0

NZE121,ZZE12#..X

ｱﾘ(ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ),GOLD ME.,585

 1
52119-13330D0

NZE121,ZZE12#..X

ｱﾘ(ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ),RED M.M.,3N8

 1
52119-13330J0

NZE121,ZZE12#..X

ｱﾘ(ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ),BLUE M.M.,8Q1

 1
52119-13320J0

NZE121,ZZE12#..X

BLUE M.M.,8Q1

 1
52119-13320F0

NZE121,ZZE12#..X

GOLD ME.,585

 1
52119-13330C0

NZE121,ZZE12#..X

ｱﾘ(ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ),BLACK ME,205

 1
52119-13320C0

NZE121,ZZE12#..X

BLACK ME,205

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13060

NZE121,ZZE12#

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-13060

NZE121,ZZE12#

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-12200

NZE121,ZZE12#

 1
52141D - STAY, FRONT BUMPER, RH
52081-13010

NZE121,ZZE12#

 1
52142C - STAY, FRONT BUMPER, LH
52082-13010

NZE121,ZZE12#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-13031

NZE121,ZZE12#

 1
52535-13030

NZE121,ZZE12#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-13031

NZE121,ZZE12#

 1
52536-13030

NZE121,ZZE12#

 1
Common parts
90119-06137
90159-50311
90179-06127
90179-08068
90467-09093
91511-B0818
Linked diagrams
5302
7601
8102
