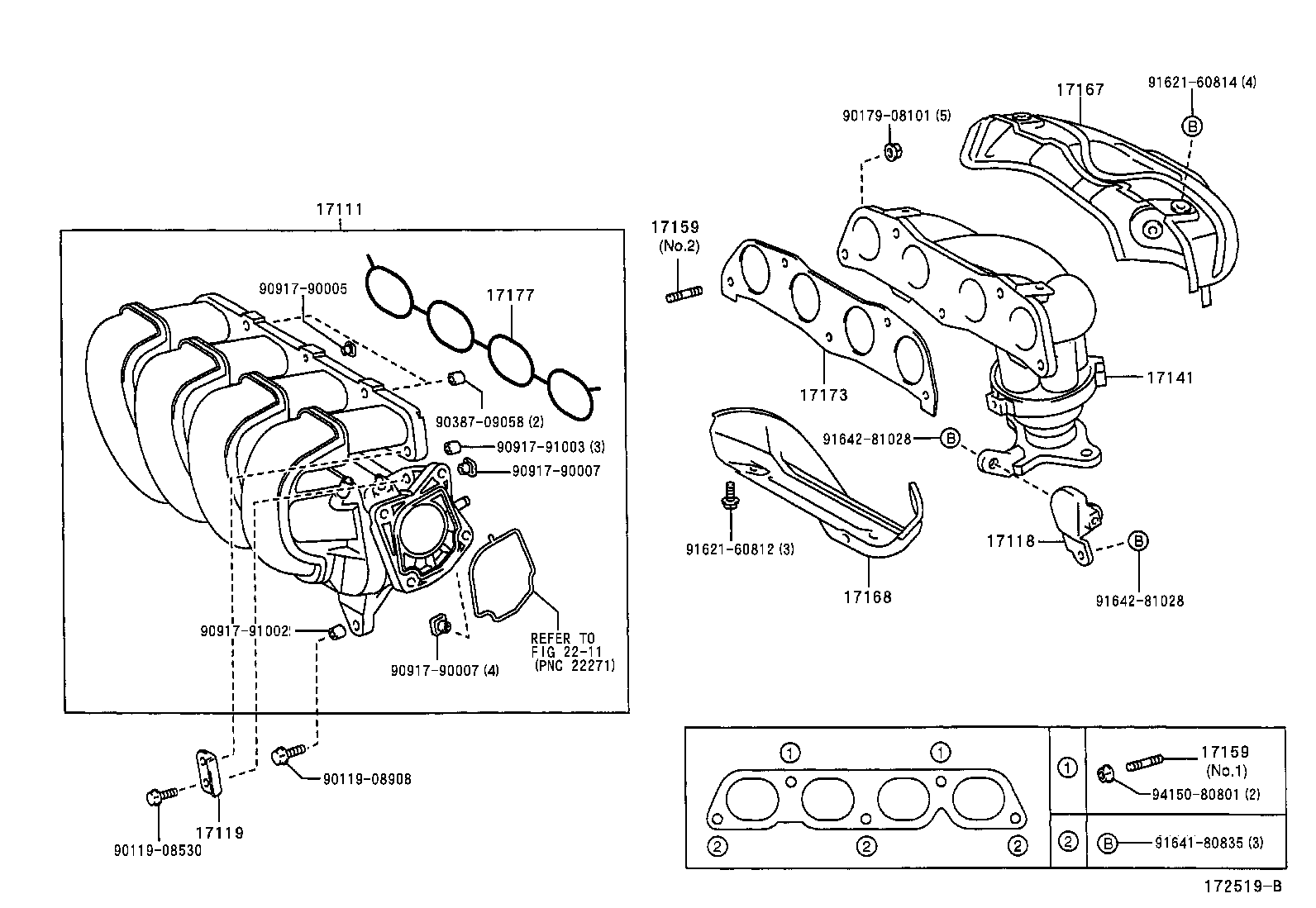

Toyota Corolla spacio ZZE124 MANIFOLD

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-22030	1ZZFE..ZZE12#	05/2001 - 04/2003	1
17118 - STAY, MANIFOLD
17118-22060	1ZZFE..ZZE124	08/2001 - 04/2003	1
17119 - STAY, MANIFOLD, NO.2
17139-22030	1ZZFE..ZZE12#	05/2001 - 04/2003	1
17141 - MANIFOLD, EXHAUST
17104-22080	1ZZFE..ZZE124	08/2001 - 04/2003	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037	1ZZFE..ZZE12# NO.2	05/2001 - 11/2001	5
90126-08026	1ZZFE..ZZE12# NO.1	05/2001 - 04/2003	2
90126-08043	1ZZFE..ZZE12# NO.2	11/2001 - 04/2003	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037	1ZZFE..ZZE12# NO.2	05/2001 - 11/2001	5
90126-08026	1ZZFE..ZZE12# NO.1	05/2001 - 04/2003	2
90126-08043	1ZZFE..ZZE12# NO.2	11/2001 - 04/2003	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-22070	1ZZFE..ZZE124	08/2001 - 04/2003	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22070	1ZZFE..ZZE124	08/2001 - 04/2003	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-22010	1ZZFE..ZZE12#	05/2001 - 04/2003	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-22030	1ZZFE..ZZE12#	05/2001 - 04/2003	1
Common parts
90119-08530
90119-08908
90179-08101
90387-09058
90917-90005
90917-90007
90917-91002
90917-91003
91621-60812
91621-60814
91641-80835
91642-81028
94150-80801
Linked diagrams
2211

ZZE124N-FWPGK (2001)
