ZZE124N-FPPVK (2001)

Toyota Corolla Spacio

Production Aug 2001 - Apr 2003
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0304) ; (0304- )NZE121,ZZE124

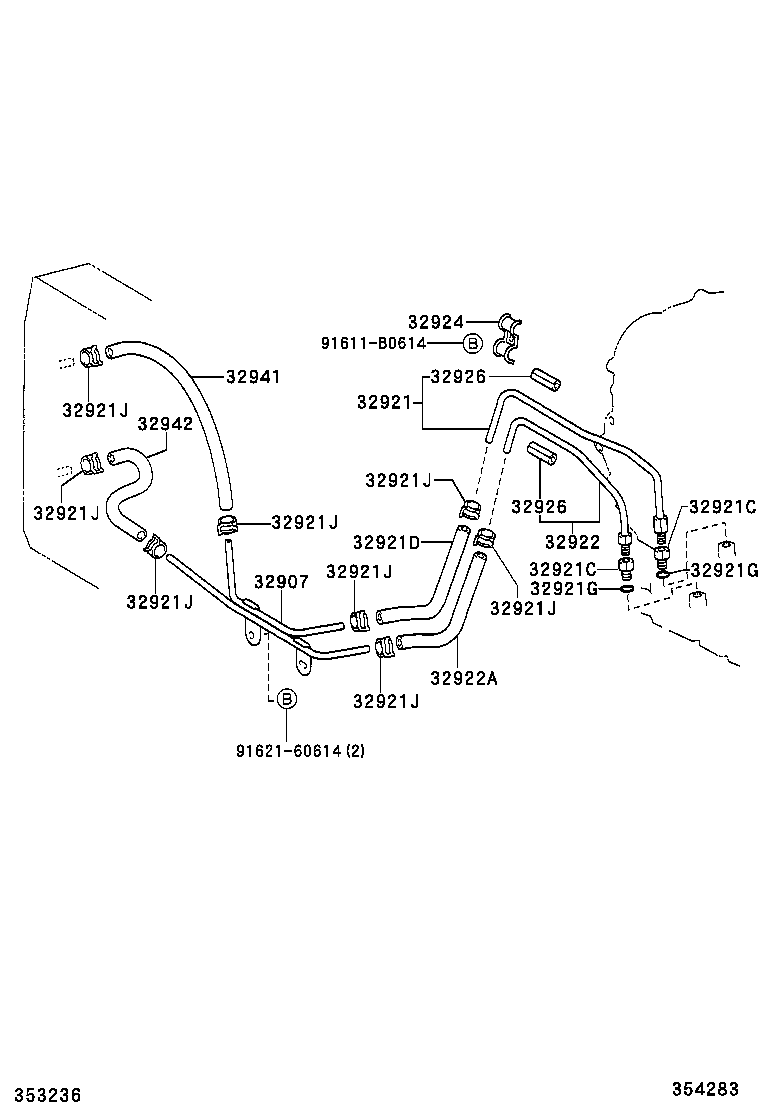

Click highlighted areas on diagram

U340E,U341E,U341F

diagram 32907 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32921J 32922 32922A 32924 32926 32926 32941 32942 91611B0614 9162160614
Part # Description Qty Price
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-12020

NZE121,ZZE12#

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12460

ZZE12#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

NZE121,ZZE12#

ｱｳﾄﾚｯﾄ

 1
90407-14003

NZE121,ZZE12#

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

NZE121,ZZE12#

ｱｳﾄﾚｯﾄ

 1
90407-14003

NZE121,ZZE12#

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-15042

ZZE12#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

NZE121,ZZE12#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

NZE121,ZZE12#

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

NZE121,ZZE12#

 8
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12350

ZZE12#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15042

ZZE12#

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10127

NZE121,ZZE12#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010

NZE121,ZZE12#

長さ=30,内径=8

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010

NZE121,ZZE12#

長さ=30,内径=8

 2
32941 - HOSE, OIL COOLER INLET, NO.1
90445-15039

NZE121,ZZE12#

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-15050

NZE121,ZZE12#

 1
Common parts
91611-B0614
91621-60614
