ZZE124N-FPPGK (2001)

Toyota Corolla Spacio

Production Aug 2001 - Jun 2007
Engine 1ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0304)

Click highlighted areas on diagram

diagram 53111 53119B 7501 9016850057 9018905037
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-13240

NZE121,ZZE12#

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150

NZE121,ZZE12#

 2
53119-12150

NZE121,ZZE12#

 2
Common parts
90168-50057
90189-05037
Linked diagrams
7501

(0304- )

Click highlighted areas on diagram

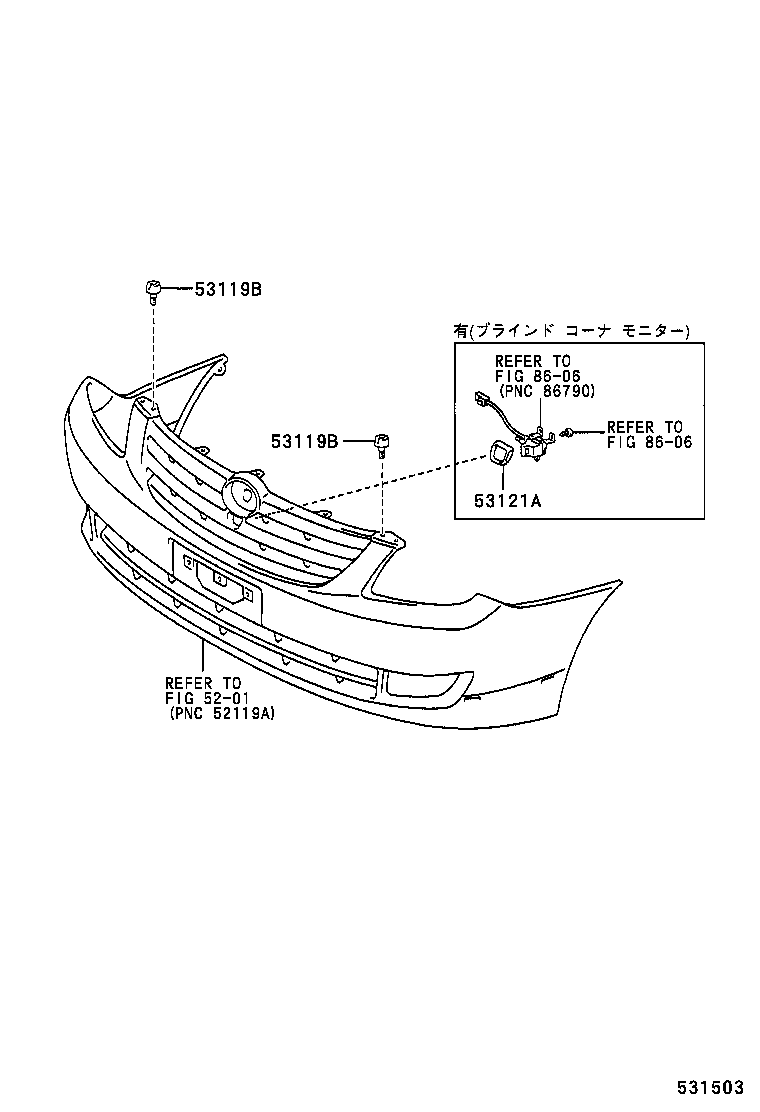

diagram 5201 53119B 53119B 53121A 8606 8606
Part # Description Qty Price
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150

NZE121,ZZE12#

 2
53119-12150

NZE121,ZZE12#

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-12150

NZE121,ZZE12#

 2
53119-12150

NZE121,ZZE12#

 2
53121A - MOULDING, RADIATOR GRILLE
53121-13010B1

NZE121,ZZE12#

LT. GRAY,040 ,073 ,1D9 ,1E7

 1
53121-13010C0

NZE121,ZZE12#

BLACK,209 ,3N8 ,3P3 ,761 ,8P4

 1
Linked diagrams
5201
8606
