NZE121N-FWPVK (2001)
Toyota Corolla Spacio
Production
May 2001
-
Apr 2003
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

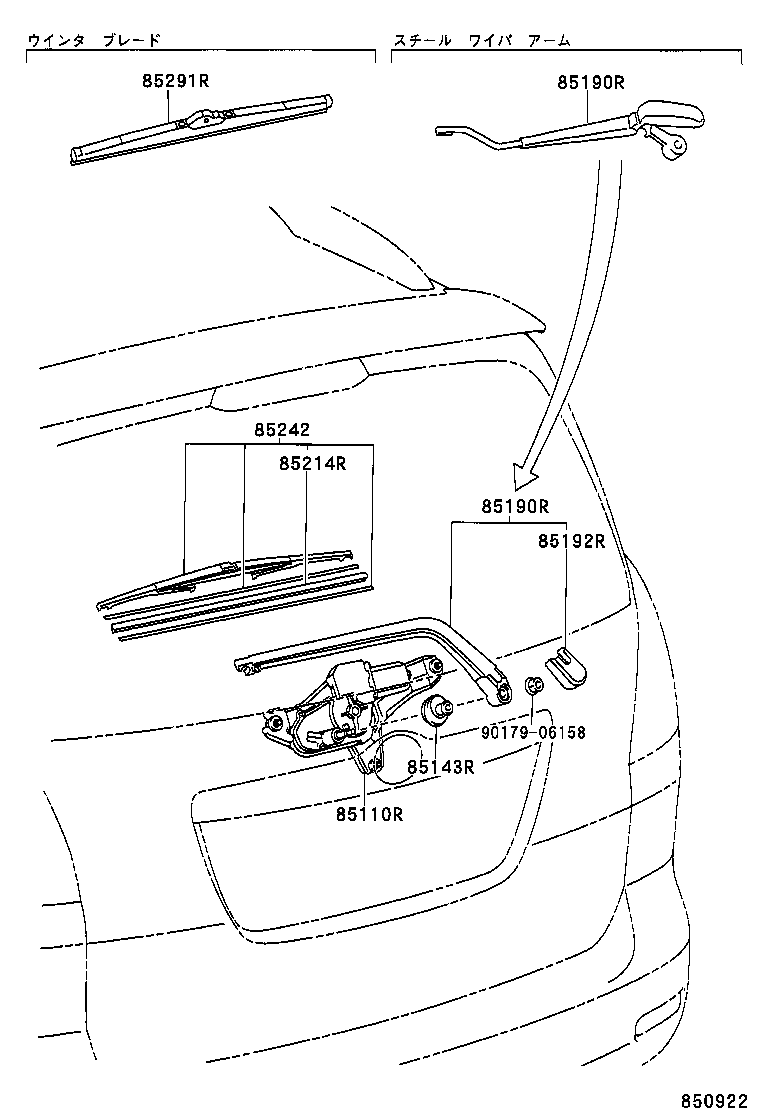

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-13120 |
NZE121,ZZE12# |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-13070 |
NZE121,ZZE12# |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-28070 |
NZE121,ZZE12# |
1 | ||
| 85241-44020 |
NZE121,ZZE12# ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-28070 |
NZE121,ZZE12# |
1 | ||
| 85241-44020 |
NZE121,ZZE12# ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85292-28030 |
NZE121,ZZE12# |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-30280 |
NZE121,ZZE12# |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-52030 |
NZE121,ZZE12# ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
1 | ||
| 85242-13060 |
NZE121,ZZE12# |
1 | ||
| 85291R - BLADE,REAR WIPER, WINTER | ||||
| 85291-63010 |
NZE121,ZZE12# |
1 | ||
| 85291-60030 |
NZE121,ZZE12# ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
