NZE121N-FWPVK (2001)
Toyota Corolla Spacio
Production
May 2001
-
Apr 2003
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

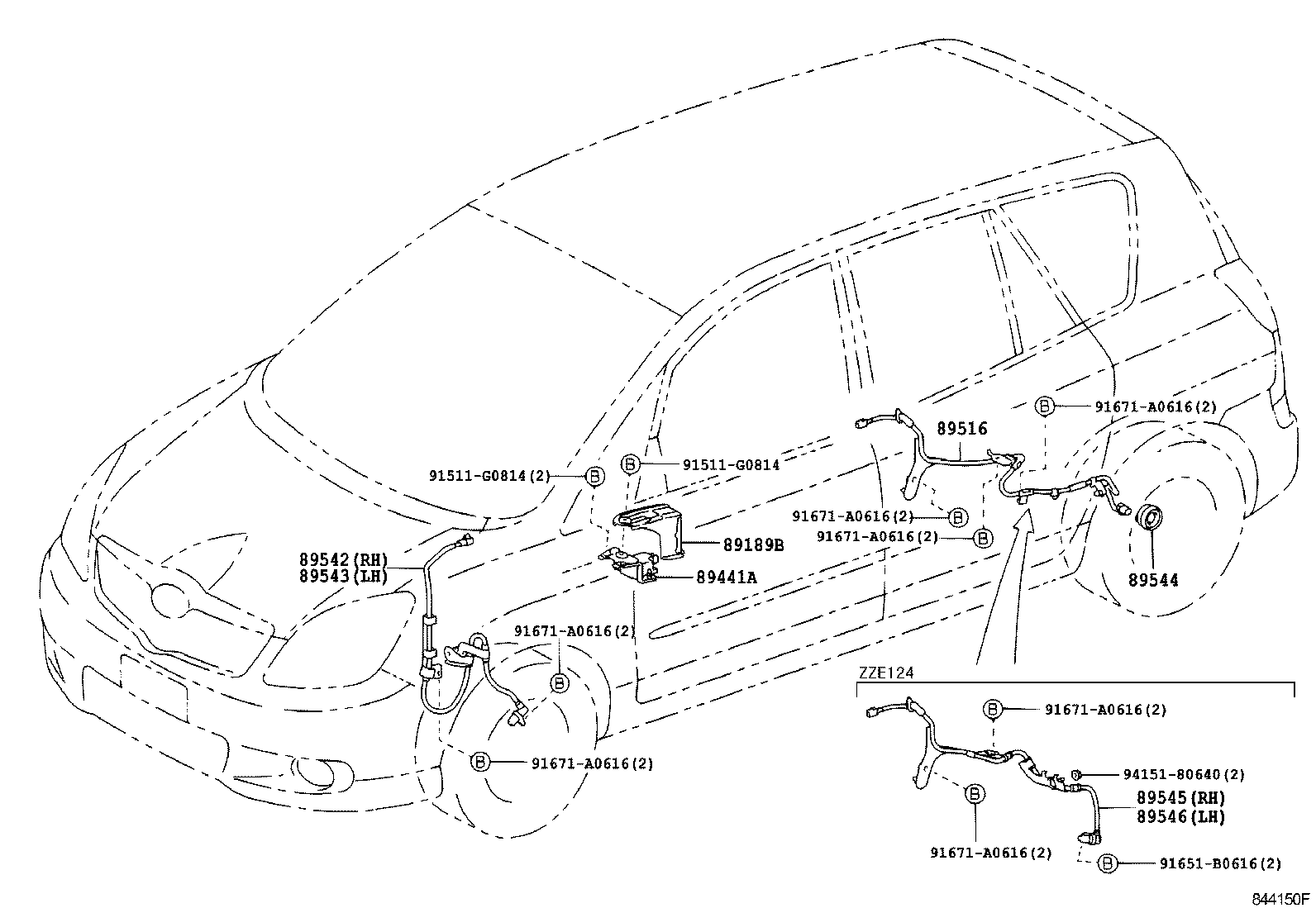

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-12010 |
NZE121,ZZE122 右側 |
1 | ||
| 89516-12020 |
NZE121,ZZE122 左側 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-12070 |
NZE121,ZZE12# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-12070 |
NZE121,ZZE12# |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-32030 |
NZE121,ZZE122 |
2 | ||
| Common parts | ||||
| 91511-G0814 | ||||
| 91651-B0616 | ||||
| 91671-A0616 | ||||
| 94151-80640 | ||||
