NZE121N-FWPVK (2001)

Toyota Corolla Spacio

Production May 2001 - Apr 2003
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

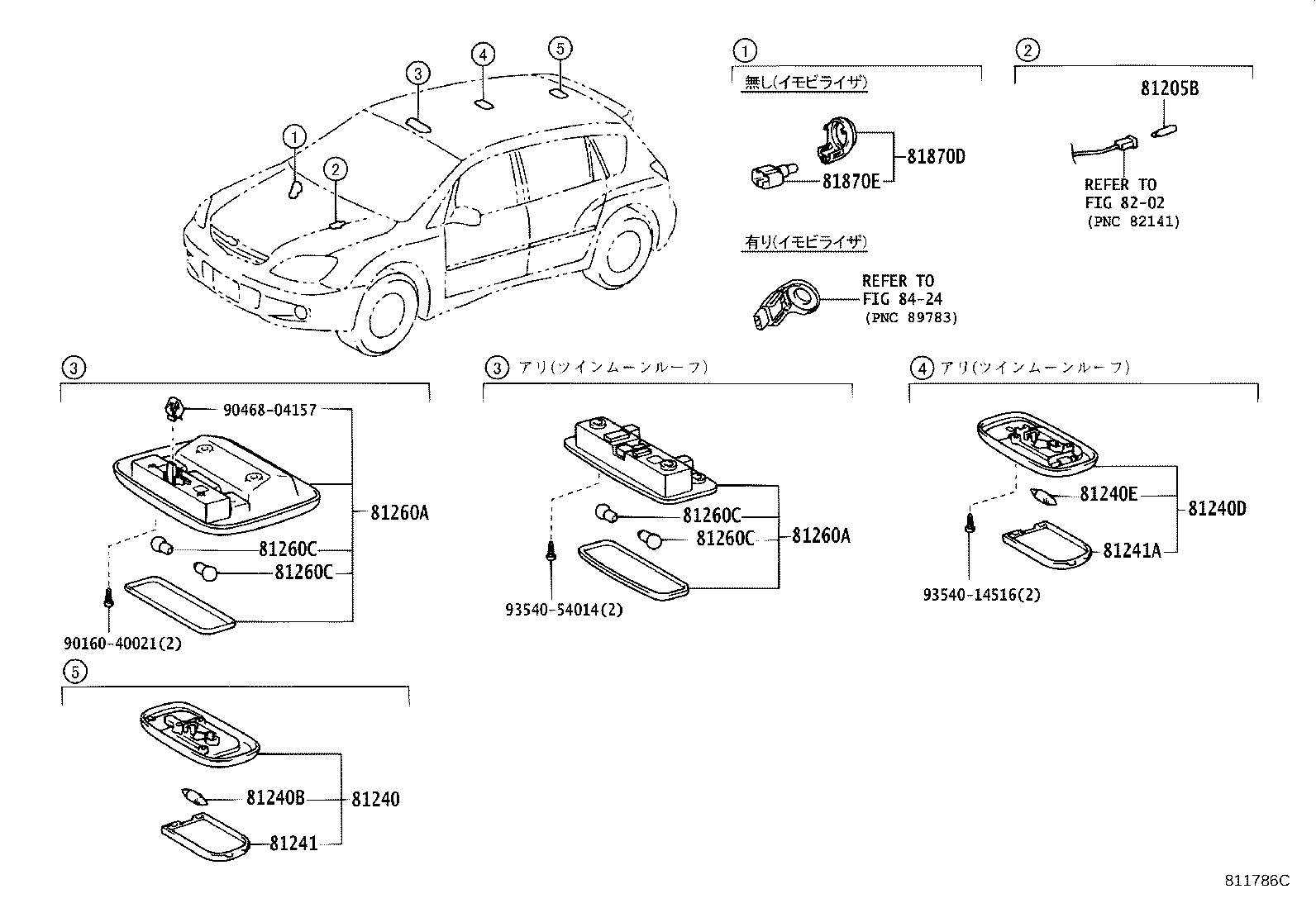

Click highlighted areas on diagram

diagram 81205B 81240 81240B 81240D 81240E 81241 81241A 81260A 81260A 81260C 81260C 81260C 81260C 81870D 81870E 8202 8424 9016040021 9046804157 9354014516 9354054014
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

NZE121,ZZE12#

12V 1.2W ｿｹｯﾄ無し

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12070A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NZE121,ZZE12#

12V 8W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-52010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

NZE121,ZZE12#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12070

NZE121,ZZE12#

 1
81241A - LENS, ROOM LAMP, NO.2
81241-44010

NZE121,ZZE12#

 1
81260A - LAMP ASSY, MAP
81260-13030A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
81260-13031A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
81260-14080A2

NZE121,ZZE12#..V,X

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
81260A - LAMP ASSY, MAP
81260-13030A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
81260-13031A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
81260-14080A2

NZE121,ZZE12#..V,X

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

NZE121,ZZE12#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

NZE121,ZZE12#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

NZE121,ZZE12#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

NZE121,ZZE12#

12V 8W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-13010

NZE121,ZZE12#

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01056

NZE121,ZZE12#

14V 1.4W

 1
Common parts
90160-40021
90468-04157
93540-14516
93540-54014
Linked diagrams
8202
8424
