NZE121N-FWPNK (2001)

Toyota Corolla Spacio

Production May 2001 - Apr 2003
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0304)

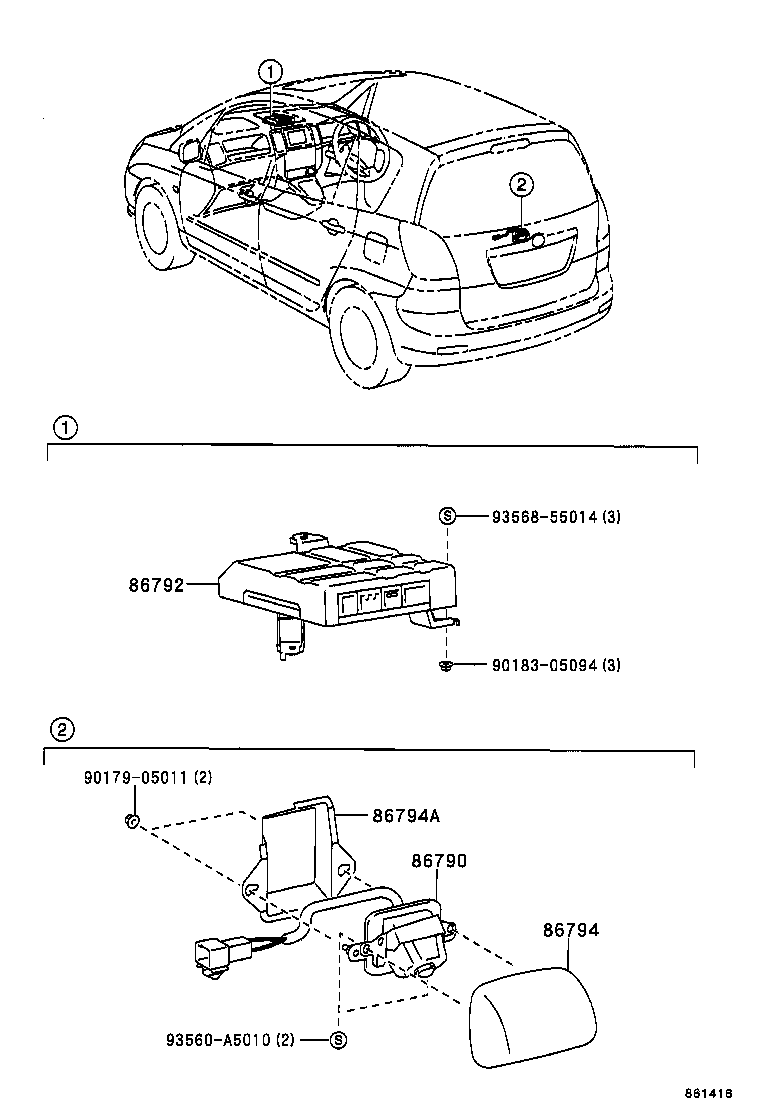

Click highlighted areas on diagram

diagram 86790 86792 86794 86794A 9017905011 9018305094 93560A5010 9356855014
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-13020

NZE121,ZZE12#

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-13030

NZE121

 1
86794 - COVER, TELEVISION CAMERA WIRE
86794-13020B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
86794-13020A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
86794-13020D0

NZE121,ZZE12#

RED M.M.,3N8

 1
86794-13020J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
86794-13020D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
86794-13020C0

NZE121,ZZE12#

BLACK ME,205

 1
86794-13020F0

NZE121,ZZE12#

GOLD ME.,585

 1
86794A - COVER, TELEVISION CAMERA WIRE, NO.2
86795-13010

NZE121,ZZE12#

 1
Common parts
90179-05011
90183-05094
93560-A5010
93568-55014
