NZE121N-FWPNK (2001)
Toyota Corolla Spacio
Production
May 2001
-
Apr 2003
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )
Click highlighted areas on diagram

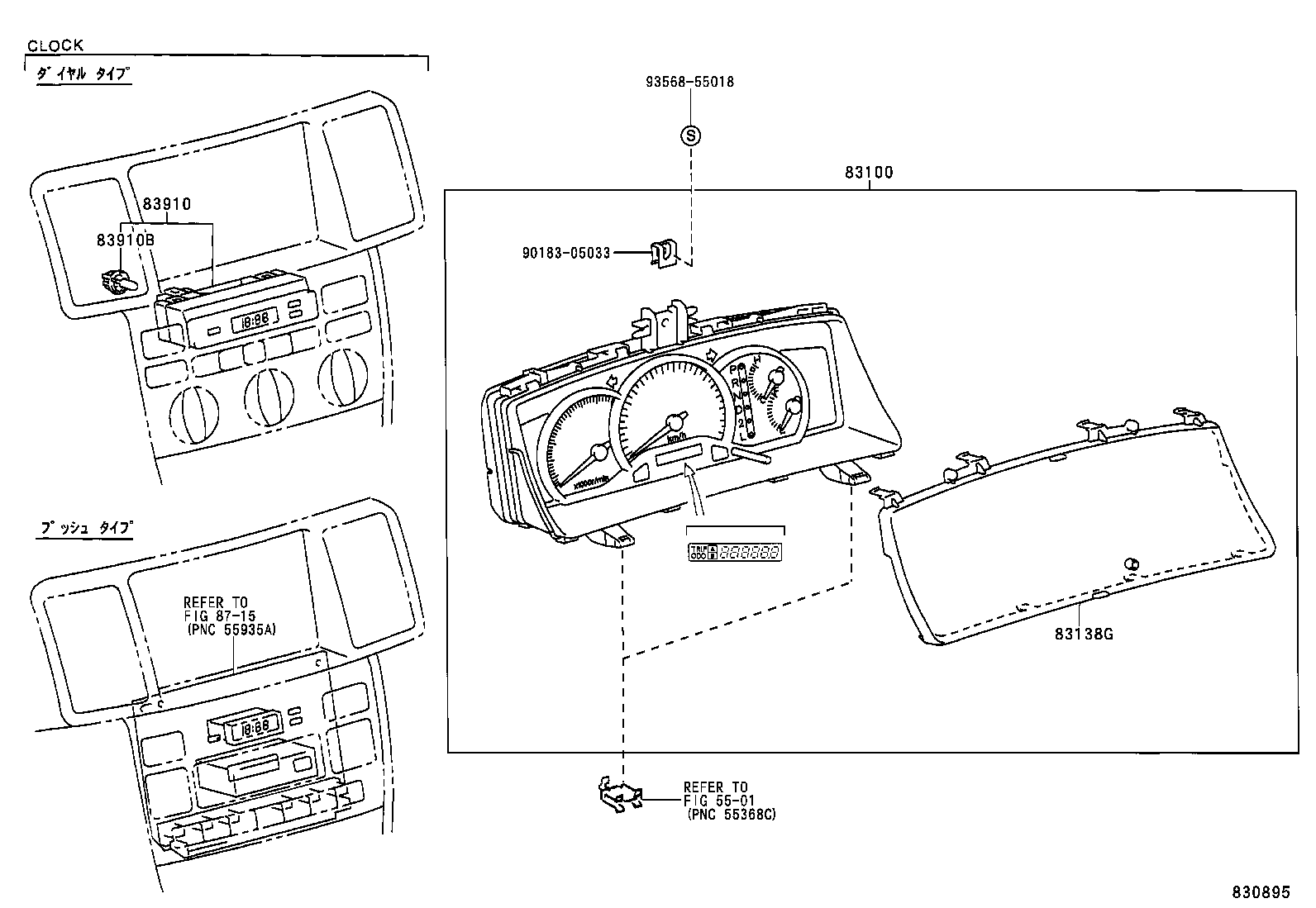

TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-1E760 |
NZE121,ZZE12#..X DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾀｲﾔ ｳｵ-ﾆﾝｸﾞ ｲﾝｼﾞｹ-ﾀ) |
1 | ||
| 83800-1H030 |
NZE121,ZZE12#..V,X DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾀｲﾔ ｳｵ-ﾆﾝｸﾞ ｲﾝｼﾞｹ-ﾀ) |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-1E760 |
ZZE124..V,X;NZE121,ZZE122 ｱﾘ(ﾀｲﾔ ｳｵ-ﾆﾝｸﾞ ｲﾝｼﾞｹ-ﾀ) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12580 |
NZE121,ZZE12#..V,X |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07018 |
NZE121,ZZE12#..V,X 14V 1.12W |
1 | ||
| Common parts | ||||
| 90183-05033 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8715 | ||||
(0105- )
Click highlighted areas on diagram

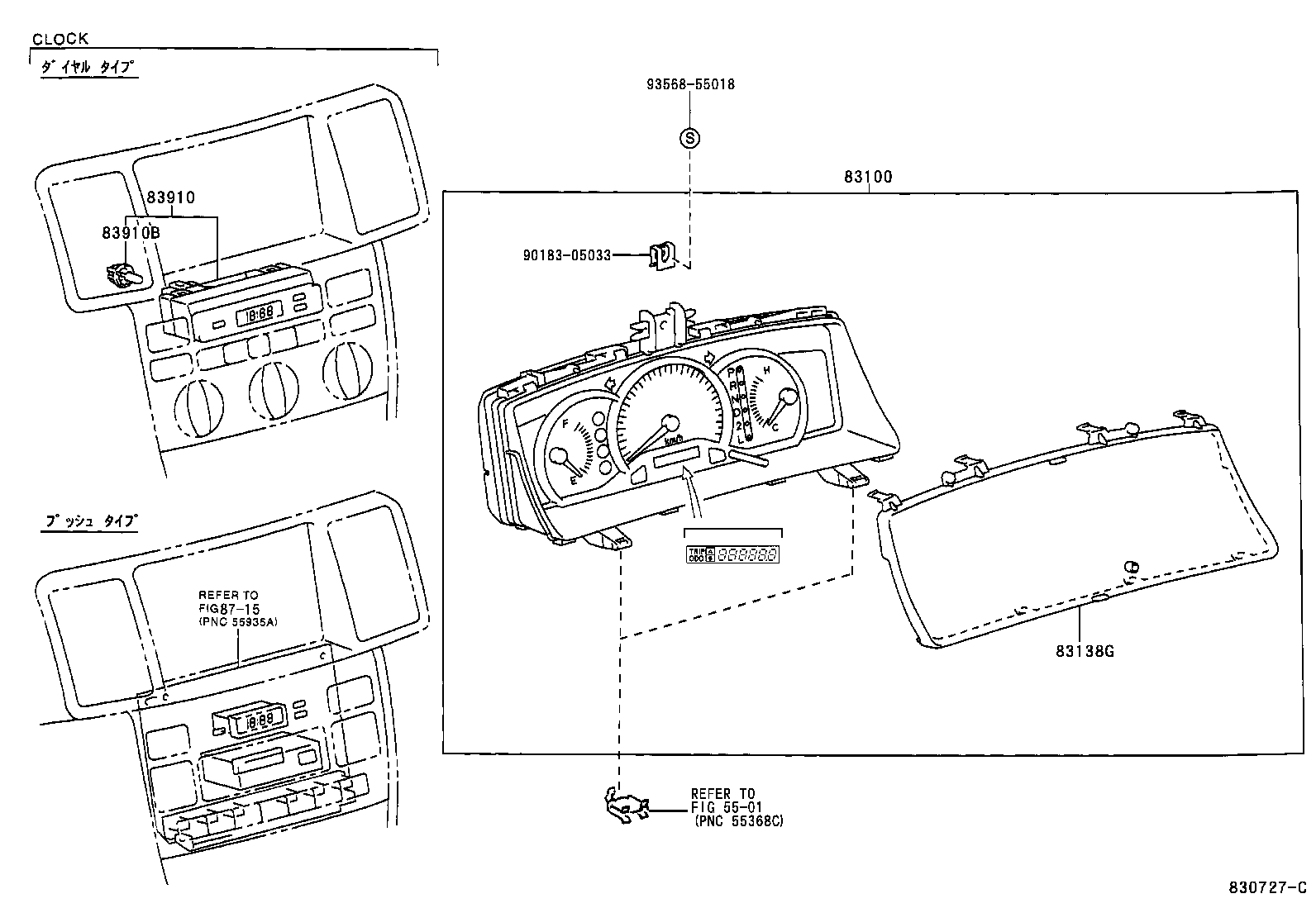

TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-1E760 |
NZE121,ZZE12#..X DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾀｲﾔ ｳｵ-ﾆﾝｸﾞ ｲﾝｼﾞｹ-ﾀ) |
1 | ||
| 83800-1H030 |
NZE121,ZZE12#..V,X DENSO,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾀｲﾔ ｳｵ-ﾆﾝｸﾞ ｲﾝｼﾞｹ-ﾀ) |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-1E760 |
ZZE124..V,X;NZE121,ZZE122 ｱﾘ(ﾀｲﾔ ｳｵ-ﾆﾝｸﾞ ｲﾝｼﾞｹ-ﾀ) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12580 |
NZE121,ZZE12#..V,X |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07018 |
NZE121,ZZE12#..V,X 14V 1.12W |
1 | ||
| Common parts | ||||
| 90183-05033 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8715 | ||||
