NZE121N-FWPNK (2001)

Toyota Corolla Spacio

Production May 2001 - Apr 2003
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0304)

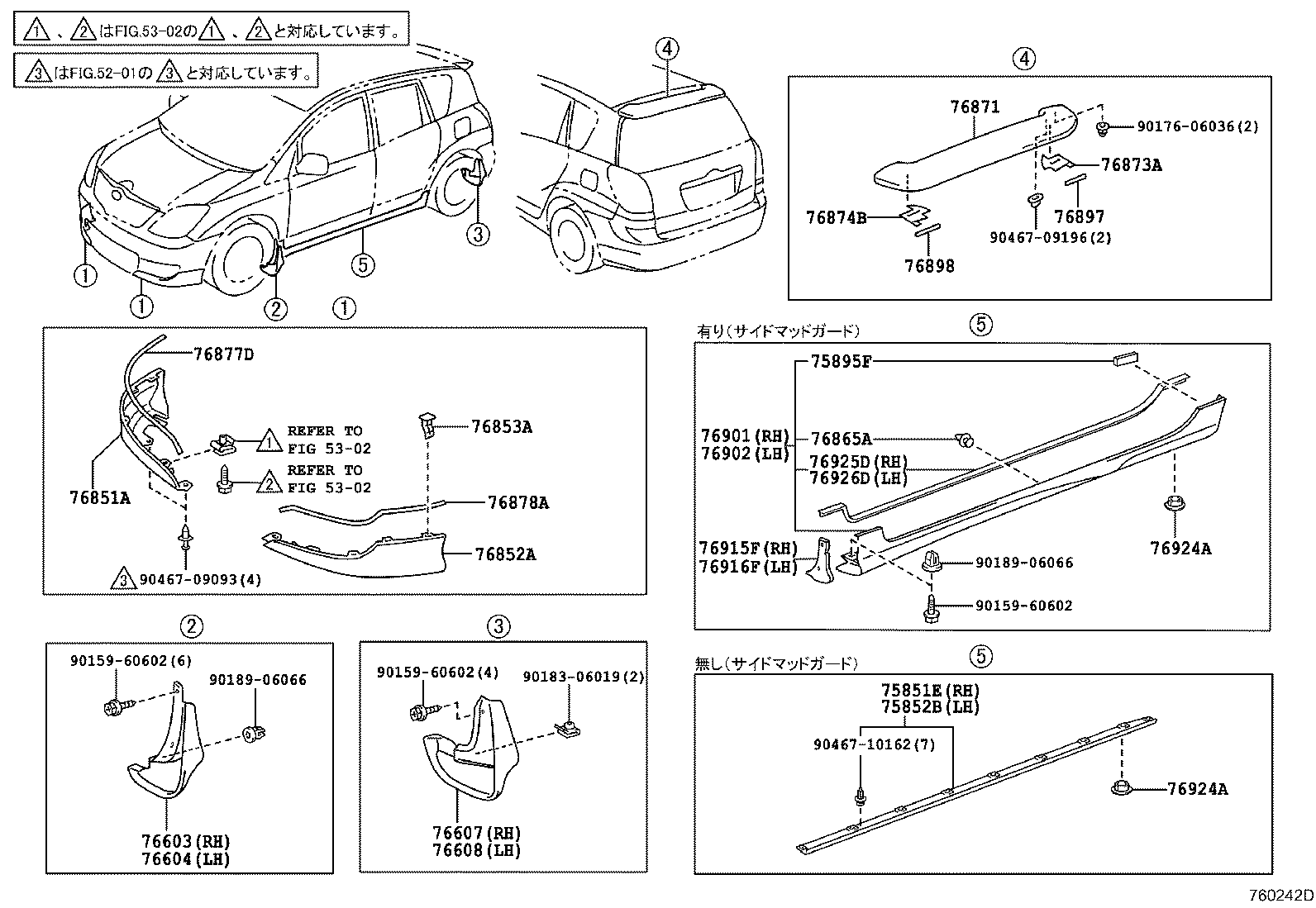

Click highlighted areas on diagram

diagram 5302 5302 75851E 75852B 75895F 76603 76604 76607 76608 76851A 76852A 76853A 76865A 76871 76873A 76874B 76877D 76878A 76897 76898 76901 76902 76915F 76916F 76924A 76924A 76925D 76926D 9015960602 9015960602 9015960602 9017606036 9018306019 9018906066 9018906066 9046709093 9046709196 9046710162
Part # Description Qty Price
75851E - MOULDING, BODY ROCKER PANEL, RH
75851-12091

NZE121,ZZE12#

 1
75852B - MOULDING, BODY ROCKER PANEL, LH
75852-12061

NZE121,ZZE12#

 1
75895F - TAPE, MOULDING, NO.1
75895-13010

NZE121,ZZE12#

 2
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12200A1

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76621-12200B2

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76621-12200C0

NZE121,ZZE12#

BLACK ME,205

 1
76621-12200J1

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76621-12200F0

NZE121,ZZE12#

GOLD ME.,585

 1
76621-12200D1

NZE121,ZZE12#

RED M.M.,3N8

 1
76621-12200D2

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12200C0

NZE121,ZZE12#

BLACK ME,205

 1
76622-12200B2

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76622-12200J1

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76622-12200D2

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76622-12200A1

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76622-12200D1

NZE121,ZZE12#

RED M.M.,3N8

 1
76622-12200F0

NZE121,ZZE12#

GOLD ME.,585

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-13120B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76625-13120C0

NZE121,ZZE12#

BLACK ME,205

 1
76625-13120D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76625-13120F0

NZE121,ZZE12#

GOLD ME.,585

 1
76625-13120A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76625-13120D0

NZE121,ZZE12#

RED M.M.,3N8

 1
76625-13120J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-13120A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76626-13120F0

NZE121,ZZE12#

GOLD ME.,585

 1
76626-13120B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76626-13120D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76626-13120D0

NZE121,ZZE12#

RED M.M.,3N8

 1
76626-13120C0

NZE121,ZZE12#

BLACK ME,205

 1
76626-13120J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76851A - COVER, FRONT SPOILER, RH
76851-13070B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76851-13070A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76851-13070D0

NZE121,ZZE12#

RED M.M.,3N8

 1
76851-13070D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76851-13070C0

NZE121,ZZE12#

BLACK ME,205

 1
76851-13070F0

NZE121,ZZE12#

GOLD ME.,585

 1
76851-13070J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76852A - COVER, FRONT SPOILER, LH
76852-13050B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76852-13050C0

NZE121,ZZE12#

BLACK ME,205

 1
76852-13050D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76852-13050A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76852-13050D0

NZE121,ZZE12#

RED M.M.,3N8

 1
76852-13050J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76852-13050F0

NZE121,ZZE12#

GOLD ME.,585

 1
76853A - RETAINER, FRONT SPOILER, UPPER NO.1
76853-10010

NZE121,ZZE12#

 8
76865A - RETAINER, SIDE MUDGUARD
67771-16170

NZE121,ZZE12#

 18
76871 - SPOILER, REAR
76871-13100A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76871-13100C0

NZE121,ZZE12#

BLACK ME,205

 1
76871-13100J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76871-13100D0

NZE121,ZZE12#

RED M.M.,3N8

 1
76871-13100B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76871-13100F0

NZE121,ZZE12#

GOLD ME.,585

 1
76871-13100D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76873A - PROTECTOR, REAR SPOILER, RH
76783-13010

NZE121,ZZE12#

 1
76874B - PROTECTOR, REAR SPOILER, LH
76784-13010

NZE121,ZZE12#

 1
76877D - PROTECTOR, FRONT SPOILER SIDE, RH
76877-13040B0

NZE121,ZZE12#

GRAY,040 ,1D9 ,585

 1
76877-13040C0

NZE121,ZZE12#

BLACK,205 ,3N8 ,3P2 ,8Q1

 1
76878A - PROTECTOR, FRONT SPOILER SIDE, LH
76878-13030B0

NZE121,ZZE12#

GRAY,040 ,1D9 ,585

 1
76878-13030C0

NZE121,ZZE12#

BLACK,205 ,3N8 ,3P2 ,8Q1

 1
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-13040

NZE121,ZZE12#

 1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76897-13040

NZE121,ZZE12#

 1
76901 - MUDGUARD SUB-ASSY, SIDE, RH
76901-13040A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76901-13040C0

NZE121,ZZE12#

BLACK ME,205

 1
76901-13040B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76901-13040D0

NZE121,ZZE12#

RED M.M.,3N8

 1
76901-13040D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76901-13040F0

NZE121,ZZE12#

GOLD ME.,585

 1
76901-13040J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76902 - MUDGUARD SUB-ASSY, SIDE, LH
76902-13040A0

NZE121,ZZE12#

SUPER WHITE 2,040

 1
76902-13040D0

NZE121,ZZE12#

RED M.M.,3N8

 1
76902-13040B0

NZE121,ZZE12#

SILVER ME.GR.,1D9

 1
76902-13040F0

NZE121,ZZE12#

GOLD ME.,585

 1
76902-13040D1

NZE121,ZZE12#

BORDEAUX MC.,3P2

 1
76902-13040C0

NZE121,ZZE12#

BLACK ME,205

 1
76902-13040J2

NZE121,ZZE12#

BLUE M.M.,8Q1

 1
76915F - MUDGUARD, SIDE, FR RH
76915-13020

NZE121,ZZE12#

 1
76916F - MUDGUARD, SIDE, FR LH
76916-13020

NZE121,ZZE12#

 1
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52021

NZE121,ZZE12#

 16
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52021

NZE121,ZZE12#

 16
76925D - PROTECTOR, SIDE MUDGUARD, RH
76925-13020B0

NZE121,ZZE12#

GRAY,040 ,1D9 ,585

 1
76925-13020C0

NZE121,ZZE12#

BLACK,205 ,3N8 ,3P2 ,8Q1

 1
76926D - PROTECTOR, SIDE MUDGUARD, LH
76925-13020B0

NZE121,ZZE12#

GRAY,040 ,1D9 ,585

 1
76925-13020C0

NZE121,ZZE12#

BLACK,205 ,3N8 ,3P2 ,8Q1

 1
Common parts
90159-60602
90176-06036
90183-06019
90189-06066
90467-09093
90467-09196
90467-10162
Linked diagrams
5302
