NZE121N-FWPNK (2001)

Toyota Corolla Spacio

Production May 2001 - Apr 2003
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

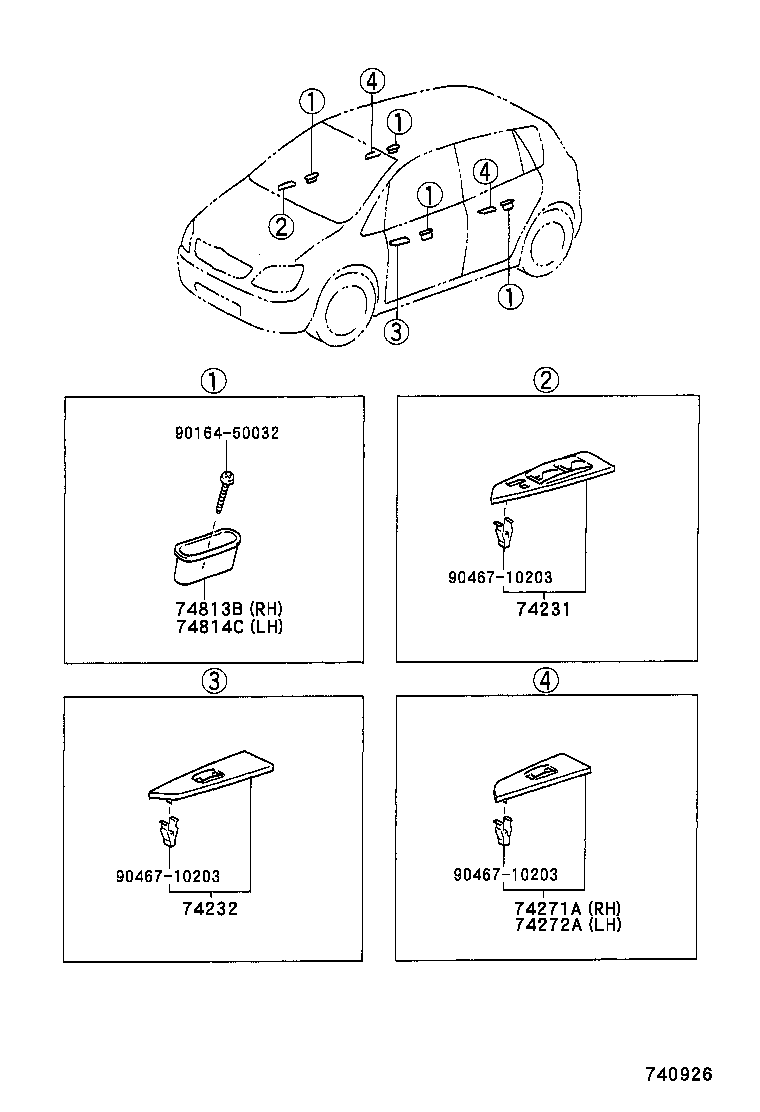

ILLUST NO. 1 OF 2(0105- )

Click highlighted areas on diagram

diagram 74231 74232 74271A 74272A 74813B 74814C 9016450032 9046710203 9046710203 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-13070A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
74231-13080

NZE121,ZZE122..X

ﾓｸﾒ

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-13040

NZE121,ZZE12#..X

ﾓｸﾒ

 1
74232-13030A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-13020

NZE121,ZZE12#..X

ﾓｸﾒ

 1
74271-13010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-13010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
74272-13020

NZE121,ZZE12#..X

ﾓｸﾒ

 1
74813B - HANDLE, FRONT DOOR PULL, RH
74813-52010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 2
74814C - HANDLE, FRONT DOOR PULL, LH
74814-52010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 2
Common parts
90164-50032
90467-10203

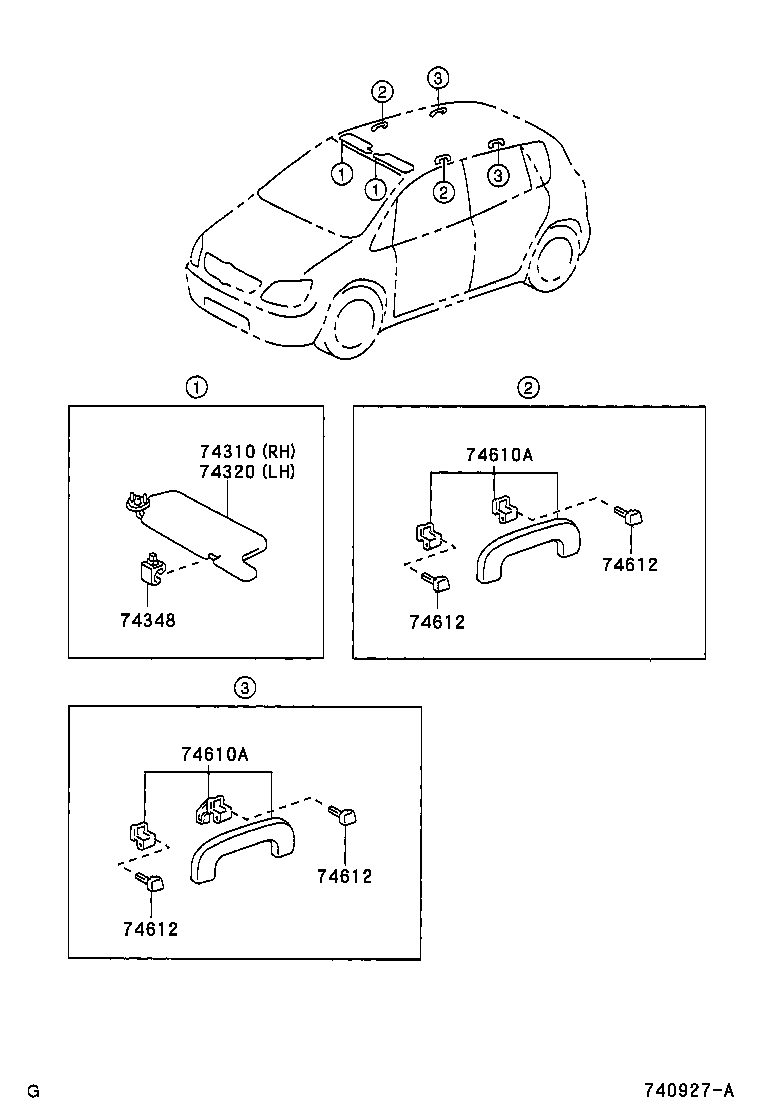

ILLUST NO. 2 OF 2(0105- )

Click highlighted areas on diagram

diagram 74310 74320 74348 74610A 74610A 74612 74612 74612 74612
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-13320A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
74320 - VISOR ASSY, LH
74320-13200A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 1
74348 - HOLDER, VISOR
74348-12040A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-13011A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 4
74610A - GRIP SUB-ASSY, ASSIST
74610-13011A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 4
74612 - COVER, ASSIST GRIP
74612-13010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 8
74612 - COVER, ASSIST GRIP
74612-13010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 8
74612 - COVER, ASSIST GRIP
74612-13010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 8
74612 - COVER, ASSIST GRIP
74612-13010A0

NZE121,ZZE12#..V,X

IVORY,TRIM0#

 8
