NZE121N-FWPNK (2001)

Toyota Corolla Spacio

Production May 2001 - Apr 2003
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

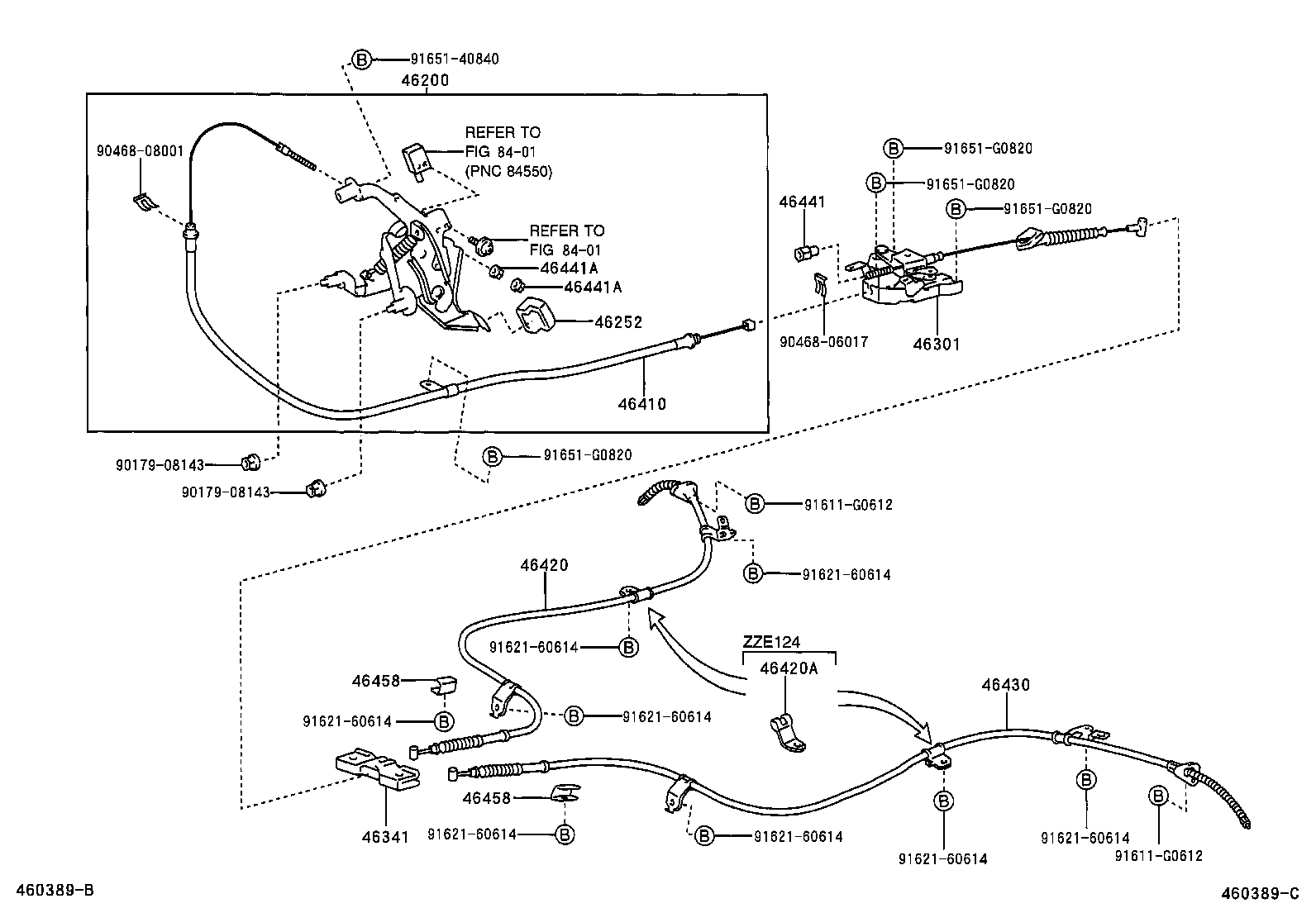

Click highlighted areas on diagram

diagram 46200 46252 46301 46341 46410 46420 46420A 46430 46441 46441A 46441A 46458 46458 8401 8401 9017908143 9017908143 9046806017 9046808001 91611G0612 91611G0612 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9165140840 91651G0820 91651G0820 91651G0820 91651G0820
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-13030

NZE121,ZZE12#

 1
46252 - PAD, PARKING PEDAL
46252-52010

NZE121,ZZE12#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-13030

NZE121,ZZE12#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-20070

NZE121,ZZE12#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-13030

NZE121,ZZE12#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12510

NZE121..05S

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12410

NZE121..05S

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-47010

NZE121,ZZE12#

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06058

NZE121,ZZE12#

 2
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06058

NZE121,ZZE12#

 2
46458 - RETAINER, CABLE
46458-28010

NZE121,ZZE12#

 2
46458 - RETAINER, CABLE
46458-28010

NZE121,ZZE12#

 2
Common parts
90179-08143
90468-06017
90468-08001
91611-G0612
91621-60614
91651-40840
91651-G0820
Linked diagrams
8401
