NZE121N-FPPVK (2001)

Toyota Corolla Spacio

Production May 2001 - Apr 2003
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

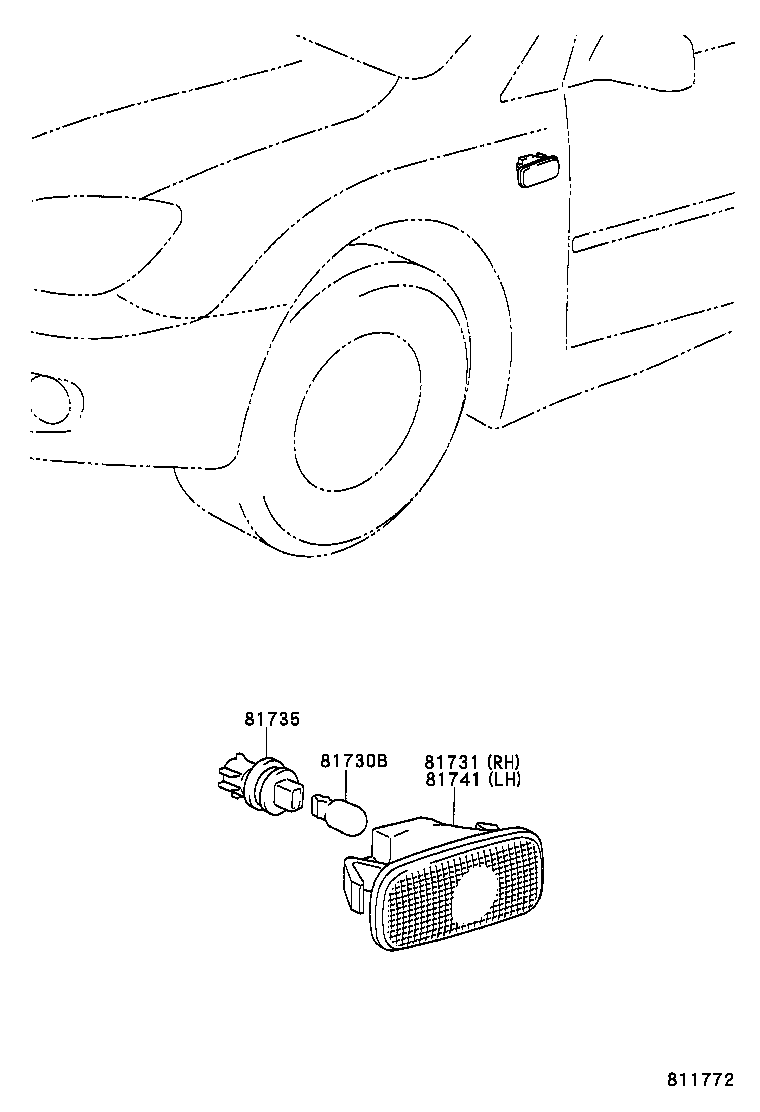

Click highlighted areas on diagram

diagram 81730B 81731 81735 81741
Part # Description Qty Price
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

NZE121,ZZE12#

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-53010

NZE121,ZZE12#

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
90075-60001

NZE121,ZZE12#

 2
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-53010

NZE121,ZZE12#

 1
